| Machining Length | 20.1" | 510.54 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Dimensions | 113" x 67" x 76" | 113" x 67" x 76" |
| Weight | 8,598 Lbs | 8,598 Lbs |
Bar Capacity: 2.6"
Chuck Size: 8"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8"
Z Axis Travel: 22"
Rapid Rate Z Axis: 1,417 IPM

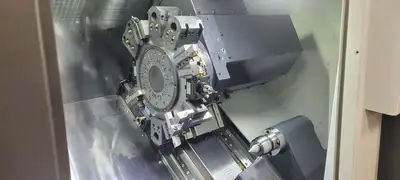

Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 12"
Max Turning Length: 20"
Fanuc I Series Control
Y Axis
Live Tooling

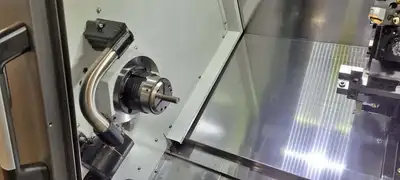

Tailstock
Parts Catcher
3 Jaw Chuck
Extended Coolant Collector
LNS Chip Conveyor
Bar Feed Interface
