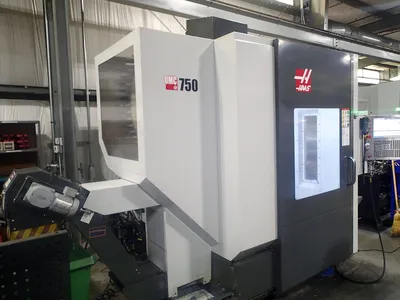

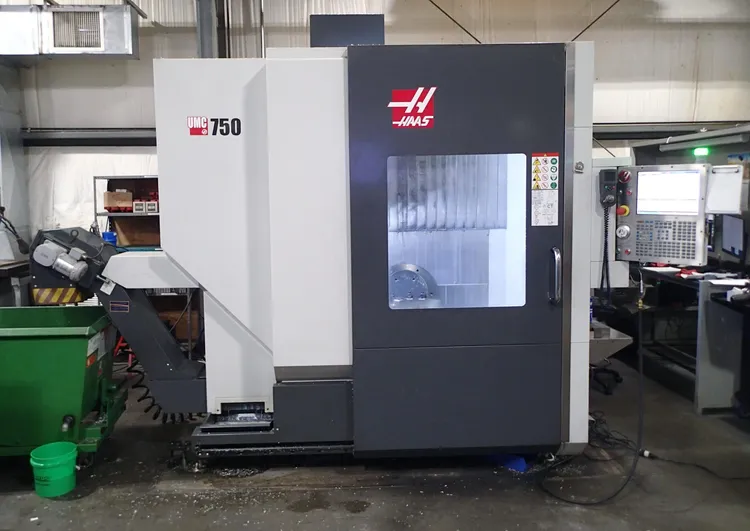

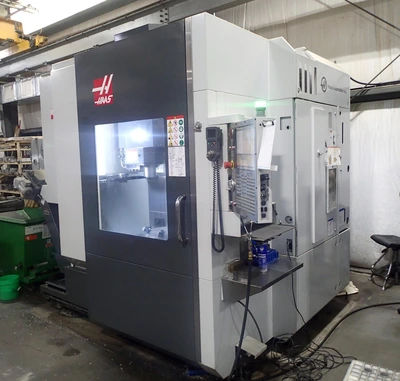

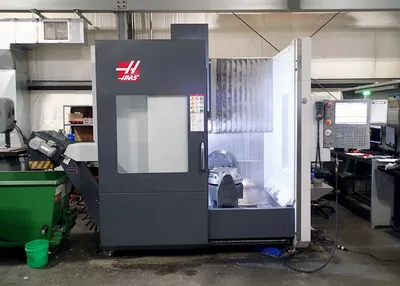

Haas UMC-750 Universal Machining Center (2017)
Sold

Haas UMC-750 Universal Machining Center (2017)

Machining Centers, 5 Axis
Manufacturer:
HAAS
Model:
UMC-750
Year:
2017
Stock #:
94127

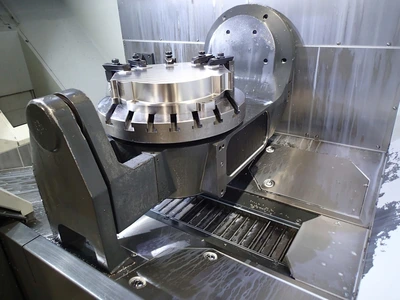

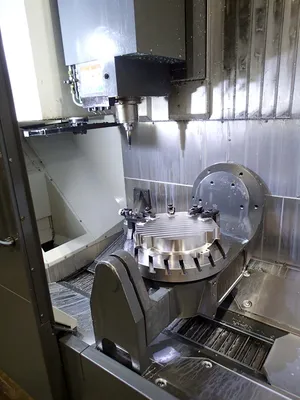

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The Haas UMC Series universal machining centers are cost-effective solutions for 3+2 machining and simultaneous 5-axis machining. The UMC-750 has an integrated dual-axis trunnion table with a 500 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +120 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.
X30"762 mm
Y20"508 mm
Z20"508 mm
# Axis55
Power30 hp22.4 kW
RPM8,100 RPM8,100 RPM
# ATC4141
Dimensions168” x 93″ x 110″168” x 93″ x 110″
Weight14,250 lbs14,250 lbs

X - 30"
Y - 20"
Z - 20"
Table-W: 19.7"
Table-L: 24.8"
# Axis - 5
Power - 30 hp
RPM - 8,100 RPM
# ATC - 41
Taper - CT or BT 40

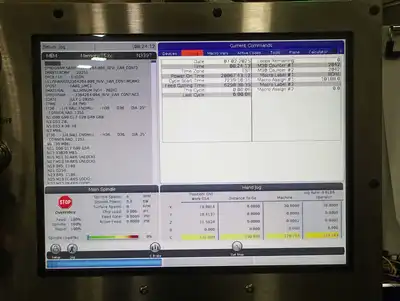

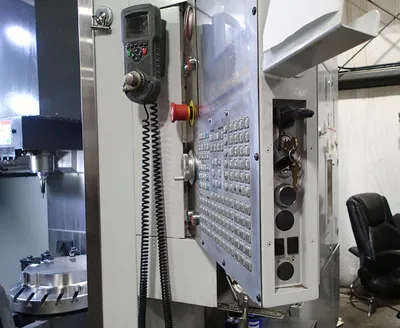

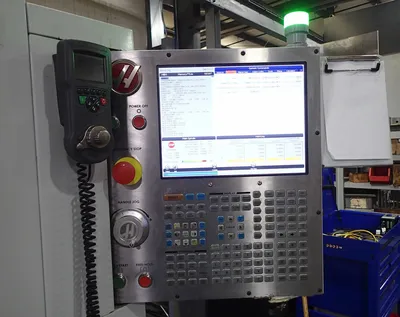

- Haas CNC Control
- High Speed Machining

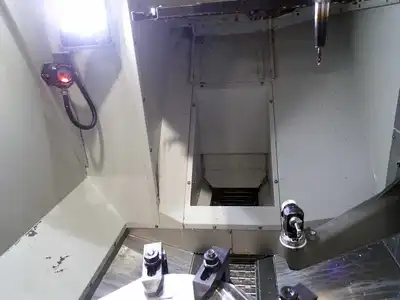

- Wireless Intuitive Probing System- WIPS

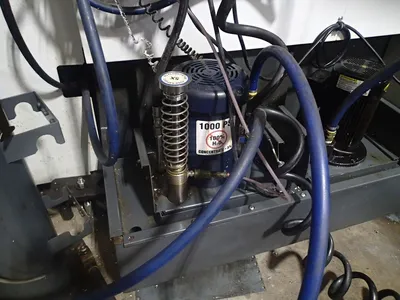

- Thru Spindle Coolant
- Thru Tool Air Blast
- Programmable Coolant Nozzle

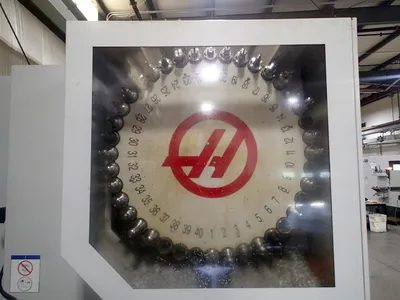

- 40 + 1 Position ATC
- Cat 40 Taper

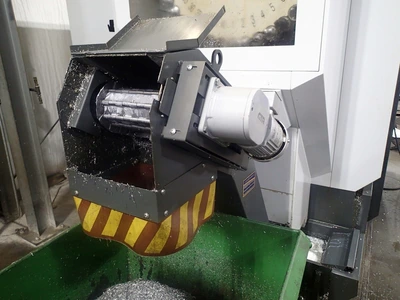

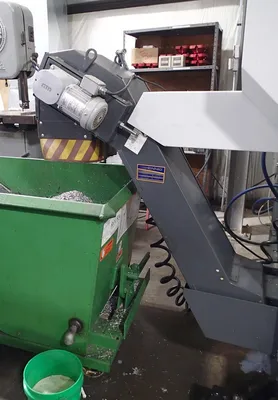

- Chip Conveyor
- Auxiliary Coolant Filter
