| size | 31" x 31" Table | 31" x 31" Table |
| X | 51" | 1,295.4 mm |
| Y | 43" | 1,092.2 mm |
| Z | 49" | 1,244.6 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 171 | 171 |
| Taper | 50 | 50 |
| Pallet-W | 31" | 787.4 mm |
| Pallet-L | 31" | 787.4 mm |
| # Axis | 4 | 4 |

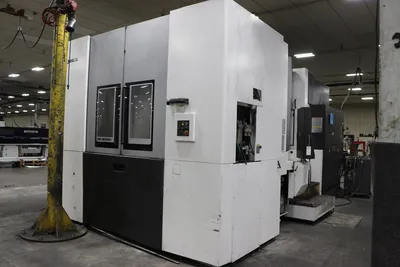

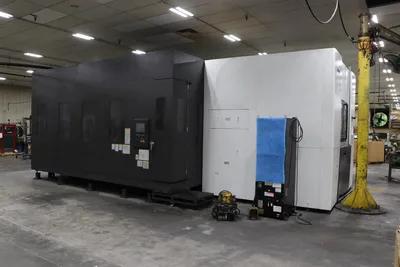

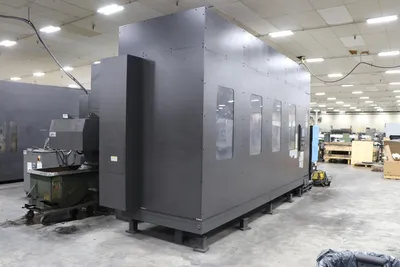

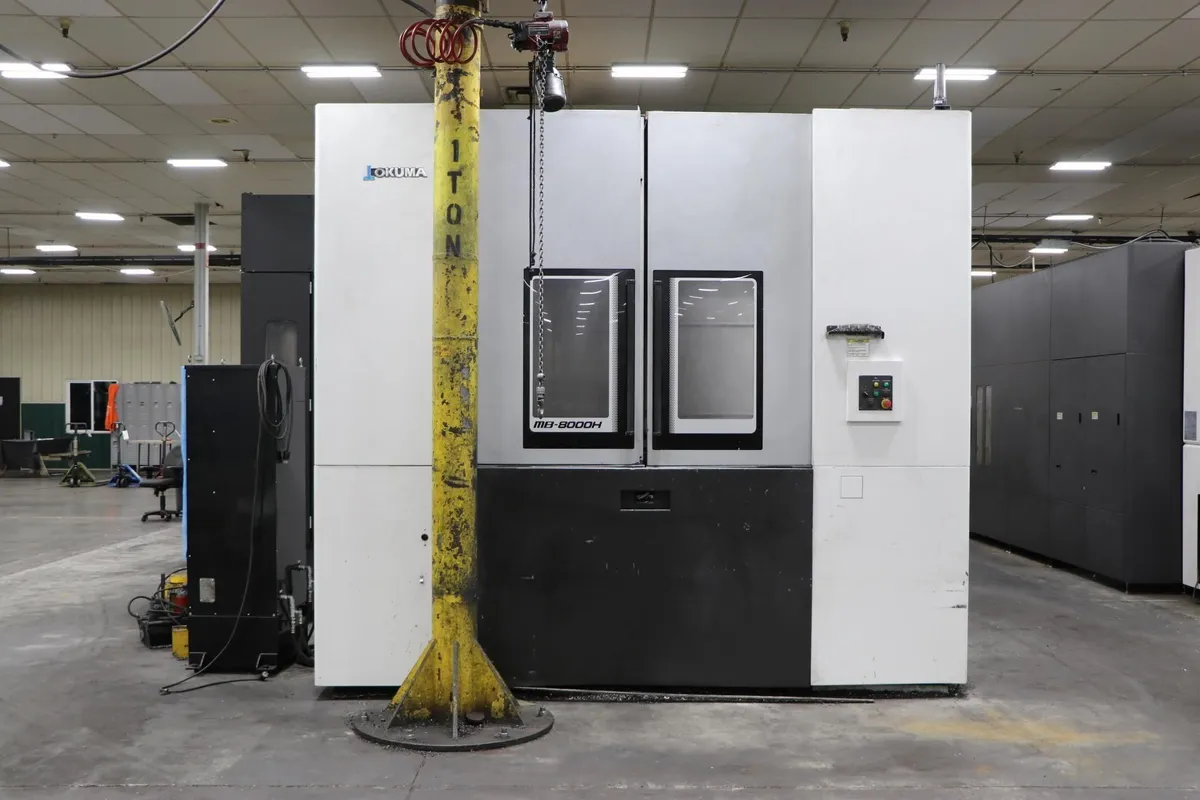

2021 Okuma Mb-8000h 800mm Cnc Horizontal Machining Center (2021)
Specifications:

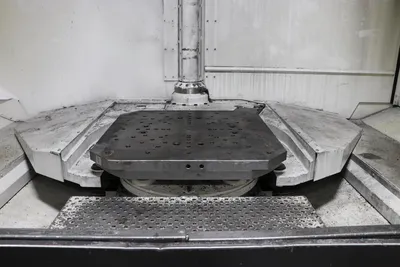

Pallet Size: 31.5" X 31.5"
X-Axis: 51.1"
Y-Axis: 43.3"
Z-Axis: 49.2"

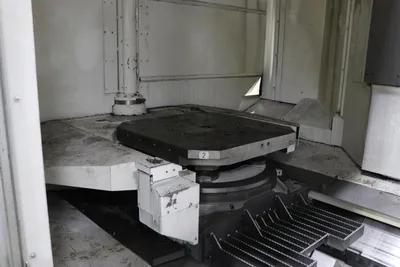

Pallet Index: .Full 4th

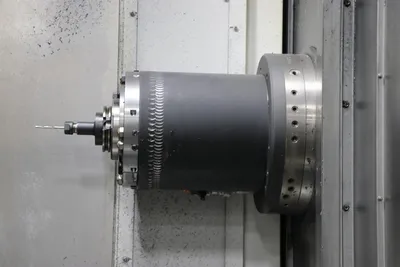

Spindle Speed: 50-6000 RPM
Spindle Taper: CT 50
Spindle Motor: 40/30 HP
Spindle Center to Table Top: 1.973- 45.283
Spindle Nose to Table Center: 3.93 - 53.153
Tools (Matrix): 171
Rapid Traverse Rates: X, Y & Z)1969 IPM
Pallet Load Capacity: 440 lbs.
Max Tool Diameter: 5.5 / 9.453
Max Tool Length: 23.6
Max Tool Weight: 55 Lbs.
Machine Dimensions:(L x W x H) 2943 x 155.93 x 136.43
Machine Weight: 58,300 Lbs.

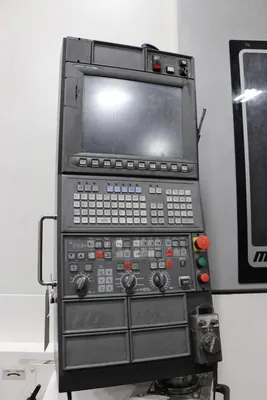

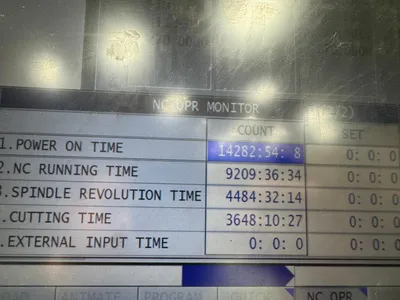

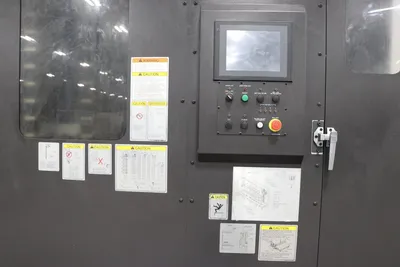

Osp-P300ma Control

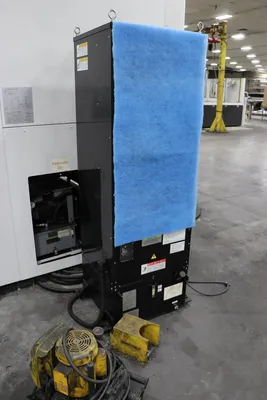

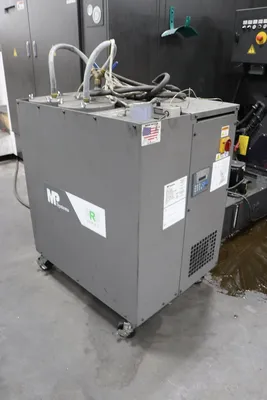

Mp Systems Coolant System

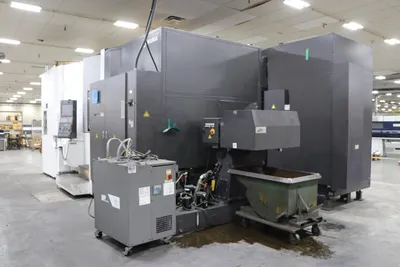

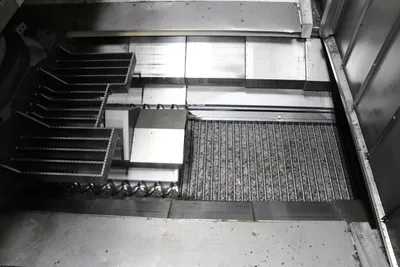

Mayfran Consep 2000 Chip Conveyor

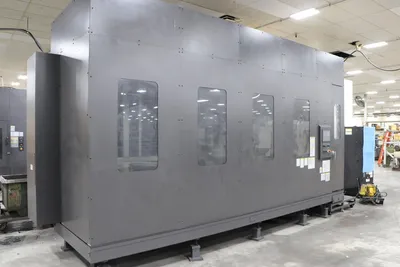

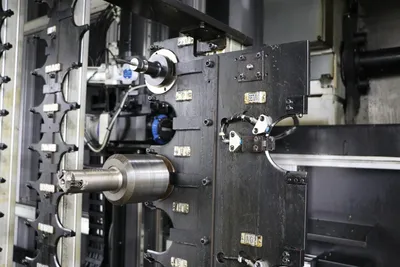

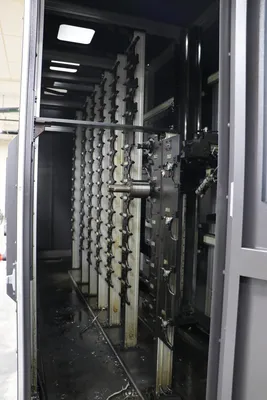

171 Position ATC
Showa Corp. Thermo Tuner
