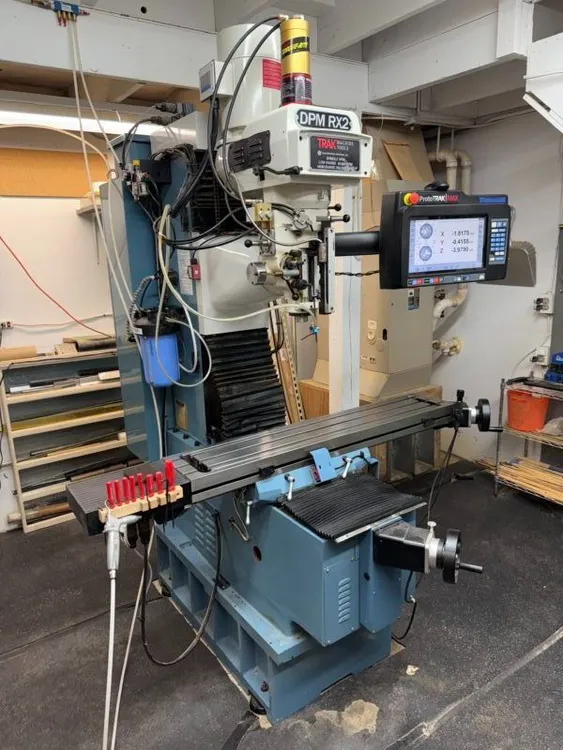

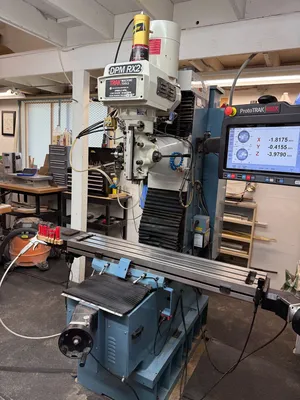

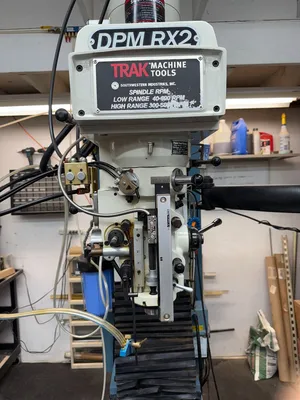

Southwestern Industries Trak DPM RX2 CNC Vertical Milling Machine (2019)
Have one to sell?
ConditionUsed
1 available
3 Axis, Power Draw Bar, ProtoTrak RMX CNC Control / touch screen
Southwestern Industries Trak DPM RX2 CNC Vertical Milling Machine (2019)

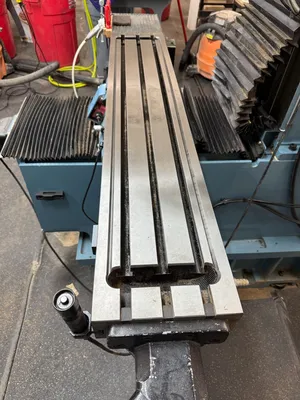

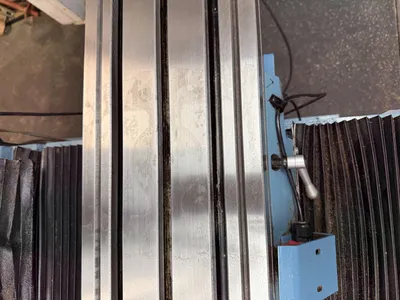

Table Size 3 x .63″ x 2.5″
Travel (X, Y, Z Axis)* 31″ x 16″ x 23.25″ Note

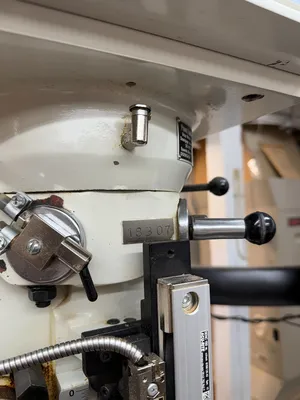

Quill Diameter 3 3/8″
Maximum Quill Travel 5″
Spindle Taper R8
Spindle Speed Range RPM 40 - 600
Spindle Center to Column Face 18.5″
Head Swivel (side to side)° +/- 90°
Quill Feeds per Revolution of Spindle 0.0015/0.003/0.006″
Spindle Motor HP 3 HP 5 HP
Power Requirements Control: 110V, 1P, 10A
Machine: 200-240V, 3P, 21A
Maximum Weight of Workpiece 1320 lbs
Height Of Table From Bottom Of Bed 36.75″
Max Spindle Nose To Table 25.5″
Min Height 86.625″
Max Height ″ 98.75″
Width Of Machine Including Table 71.25″
Overall Length With Electric Door Closed 73.31″
Overall Length With Electrical Door Open 93.88″
Overall Width Inc Full Table Traverse 102.53″
Footprint Of Machine 23.13″ x 40.5″
Weight Net / Shipping Lbs. 3200 / 3500

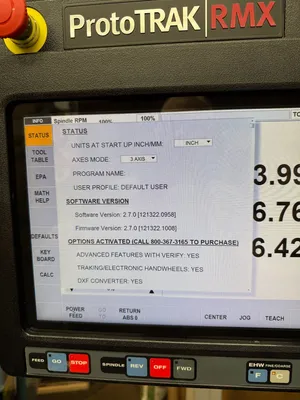

ProtoTrak RMX CNC Control / touch screen

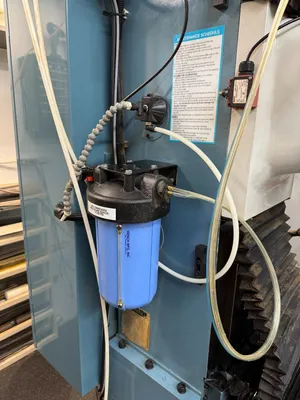

Auto Lube Pump
Precision ground ballscrews in the table, saddle and ram
Chrome hardened and ground quill
Meehanite castings
Slide ways are Turcite coated
Wide way surfaces are hardened and ground
Programmable spindle control

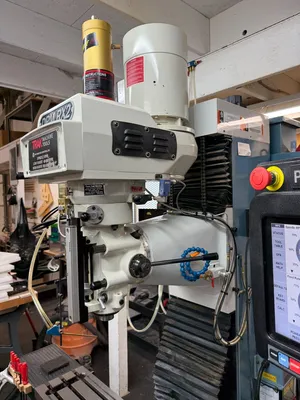

Power Drawbar
Flood Coolant
2 or 3-axis CNC, 3-axis DRO

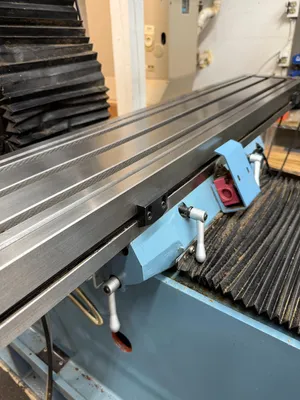

Real handwheels for manual operation
15.6 in Touchscreen LCD
Intel 2.0 GHz processor
4 GB Ram
32 GB of mSATA SSD
5 USB connectors
2 Ethernet Ports (1 for user and 1 for motion control)
Override of program Feedrate
Override of spindle speed
LED status lights built into run panel
E-stop
Spindle Control (FWD, REV, OFF)
Feed STOP and GO
Fine vs Course EHW resolution control
Accessory button to control coolant or air and AUTO mode in RUN mode
Power Reset Button to energize the servos
Headphone jack for video sound
Instant access to all defaults via fly out window
Feedrate per Minute or per Tooth
Spindle speed RPM or Surface Speed
Peck type for drill events
Number of Passes for Profile, Pocket and Island events
Finish Cut for Profile, Pocket and Island Events
Step over percentages
Face mill tool path
Z entry: plunge, helical or zig zag (ramp)
Adaptive Tool Path selections
Numerous default parameters for pocket and island events
Speed and feed overrides for subroutine and copy events
Forward or Backward Mirror Direction
Software X, Y and Z limits
X and Y Home Positions
Inch or MM
2 or 3 axis CNC at start up
Maximum rapid feedrates
Accessory On hardkey to control Coolant Mist
Cut Tolerances
Tool Compensation

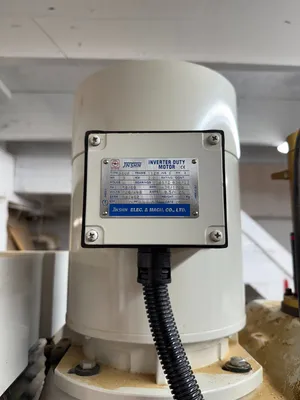

5 H.P. Motor
Machine is wired for 208 Volt / 3 Phase / 60 H.Z.
Approximate Weight (Machine Only):
4400 Lbs.
APPROXIMATE DIMENSIONS:
74 in W x 77 in L x 94 in H
