Southwestern Industries Trak DPM RX3 CNC Vertical Milling Machine (2020)
Sold

Southwestern Industries Trak DPM RX3 CNC Vertical Milling Machine (2020)

Milling-Vertical Mills
Manufacturer:
SOUTHWESTERN INDUSTRIES
Model:
PROTOTRAK DPM RX3
Year:
2020
Stock #:
94120

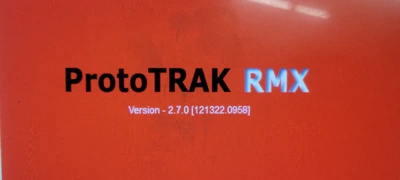

Like New, Less Than 200 Hours, 3 Axis, Power Draw Bar, ProtoTrak RMX CNC Control / touch screen Version 2.7.0 121322.0985
Table-W10"254 mm
Table-L50"1,270 mm
Travel-Long31.5"800.1 mm
Travel-Cross17"431.8 mm
Power5 hp3.7 kW
RPM5,000 RPM5,000 RPM
TaperCAT 40CAT 40

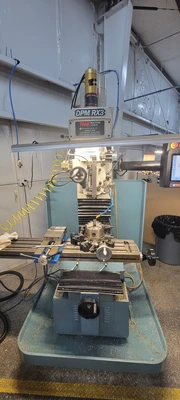

Southwestern Industries Trak DPM RX3 CNC Vertical Milling Machine (2020)

ProtoTRAK CNC Model
Table Size 50″ x 10″
Travel (X, Y, Z Axis)* 31″ x 16″ x 23.25″
Quill Diameter 3 15/16″
Maximum Quill Travel 5″
Spindle Taper 40 Taper
Spindle Speed Range RPM 40 - 600, 300 - 5,000 40 - 600, 300 - 5,000
Spindle Center to Column Face 20.5″
Head Swivel (side to side) +/- 90°
Quill Feeds per Revolution of Spindle 0.0015/0.003/0.006″
Spindle Motor HP 3 HP 5 HP
Power Requirements Control: 110V, 1P, 10A
Maximum Weight of Workpiece 1320 lbs
Height Of Table From Bottom Of Bed 36.75″
Max Spindle Nose To Table 25.81″
Min Height 87.5″
Max Height 100.5″
Width Of Machine Including Table 73.5″
Overall Length With Electric Door Closed 76.63″
Overall Length With Electrical Door Open 96.63″
Overall Width Inc Full Table Traverse 102.25″
Footprint Of Machine 23.13″ x 40.5″ 24″ x 48.4″
Weight Net / Shipping Lbs. 4100 / 4400
Rapid Traverse X, Y, Z 100 IPM on X and Y, 150 IPM on Z Mechanical Handwheels: 250 IPM on X, Y and Z
Electronic Handwheels: 400 IPM on X and Y, 250 IPM on Z Mechanical Handwheels: 250 IPM on X, Y and Z
Electronic Handwheels: 400 IPM on X and Y, 250 IPM on Z 400 IPM on X and Y, 250 IPM on Z 400 IPM on X and Y, 250 IPM on Z
Coolant Reservoir Capacity 10 gallons
Drilling Max Capacity (diameter) 1″ dia.
Milling Max Capacity 5 inch³/min 5 inch³/min
Tapping Max Capacity 1 - 8

ProtoTrak RMX CNC Control / touch screen
Auto Lube Pump
Precision ground ballscrews in the table, saddle and ram
Chrome hardened and ground quill
Meehanite castings
Slide ways are Turcite coated
Wide way surfaces are hardened and ground
Programmable spindle control
Power Drawbar
Flood Coolant
2 or 3-axis CNC, 3-axis DRO
Real handwheels for manual operation
15.6 in Touchscreen LCD
Intel 2.0 GHz processor
4 GB Ram
32 GB of mSATA SSD
5 USB connectors
2 Ethernet Ports (1 for user and 1 for motion control)
Override of program Feedrate
Override of spindle speed
LED status lights built into run panel
E-stop
Spindle Control (FWD, REV, OFF)
Feed STOP and GO
Fine vs Course EHW resolution control
Accessory button to control coolant or air and AUTO mode in RUN mode
Power Reset Button to energize the servos
Headphone jack for video sound
Instant access to all defaults via fly out window
Feedrate per Minute or per Tooth
Spindle speed RPM or Surface Speed
Peck type for drill events
Number of Passes for Profile, Pocket and Island events
Finish Cut for Profile, Pocket and Island Events
Step over percentages
Face mill tool path
Z entry: plunge, helical or zig zag (ramp)
Adaptive Tool Path selections
Numerous default parameters for pocket and island events
Speed and feed overrides for subroutine and copy events
Forward or Backward Mirror Direction
Software X, Y and Z limits
X and Y Home Positions
Inch or MM
2 or 3 axis CNC at start up
Maximum rapid feedrates
Accessory On hardkey to control Coolant Mist
Cut Tolerances
Tool Compensation
5 H.P. Motor

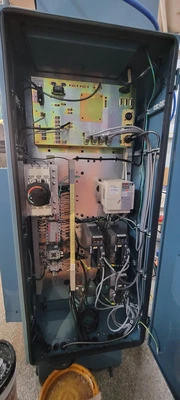

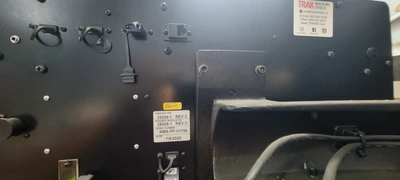

Machine is wired for 208 Volt / 3 Phase / 60 H.Z.
Approximate Weight (Machine Only):
4400 Lbs.
APPROXIMATE DIMENSIONS:
74 in W x 77 in L x 94 in H
