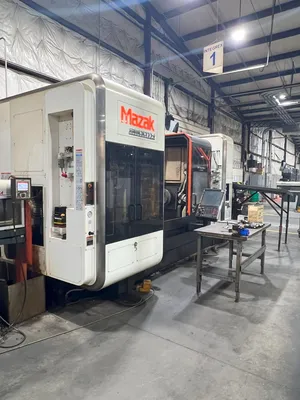

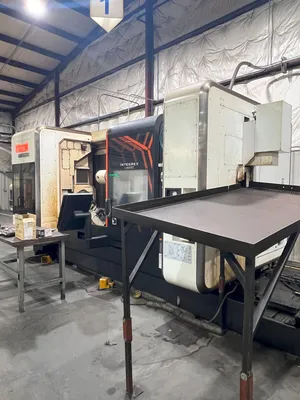

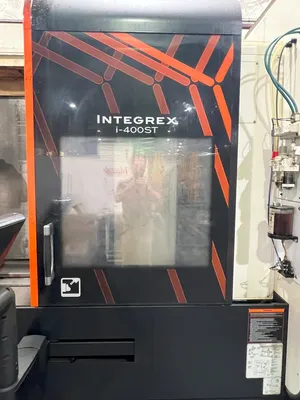

Mazak Integrex i-400 ST Multi-Tasking Lathe (2017)
Have one to sell?
ConditionUsed
1 available
Live Articulating Milling Spindle, Sub Spindle, Lower Turret, Bar Feed, Parts Loader, Chip Conveyor, High Pressure Coolant Mazak Smooth CNC. The Integrex i-400ST, capable of full simultaneous 5-axis multi-tasking machining, falls within Mazak’s done-in-one concept as it incorporates all processes from raw material input through final machining in just one machine. As such, the Integrex i-400ST reduces production lead times, improves machining accuracy, and lowers operating expenses.
Mazak Integrex i-400 ST Multi-Tasking Lathe (2017)
Maximum Swing 26.9"
Max Turning Diameter 26.9"
Main Spindle Bore/Max Bar Capacity 4.4"/ 4.0"
Tail Stock/Sub Spindle Sub Spindle
Maximum Swing Over Cross Slide 25.9"
Maximum Cutting Length 59.8"
X-Axis Travel (X1, X2, X3) 24.21
Z-Axis Travel (Z1, Z2, Z3) 62.4
Y-Axis Travel (Y1, Y2, Y3) ±4.92″
C-Axis Indexing (1, 2) 0.0001°
W-Axis Travel Sub Spindle 61.96 in

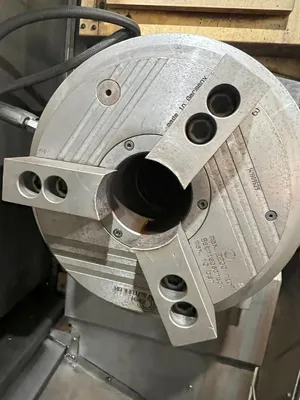

Main Spindle Chuck Size 12"
Main Spindle Chuck Type Hydraulic
Main Spindle Bore Diameter 4.4"
Main Spindle Maximum Bar Work 4"
Main Spindle Speed 3,300 RPM
Main Spindle Horsepower (CONT. /30 MINS) 40

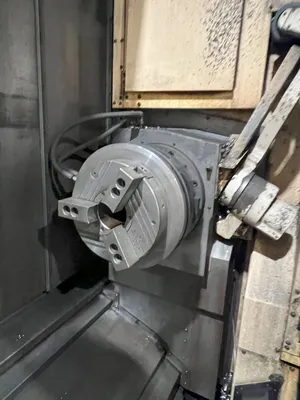

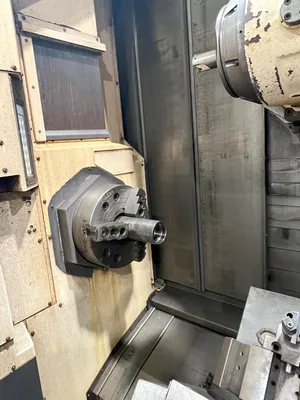

Sub Spindle/2nd Spindle Chuck Size 10
Sub Spindle/2nd Spindle Bore Size 3.58
Sub Spindle/2nd Spindle Chuck Type Hydraulic
Sub Spindle/2nd Spindle Speed 4,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) 30 HP..... MAX RPM (MILLING TOOL) 12,000 RPM
ATC Magazine Capacity 36
Number of Turrets 1
Turret Tool Positions 1, 2 9
Turret Type KM-63

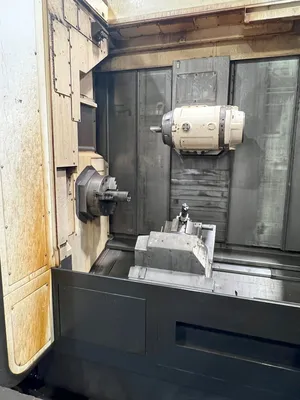

B-Axis Travel +210° ~ -30°
B-Axis Head Indexing 240 deg
B-Axis Milling Spindle Speed 12000 rpm
B-Axis Milling Spindle Horse Power 30

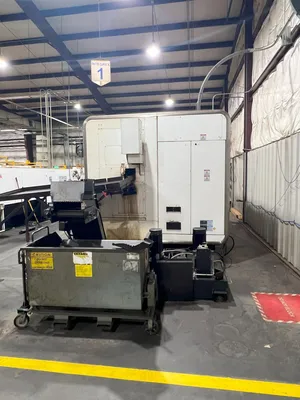

Chip Conveyor Yes
Tool Eye Automatic Front Spindle Yes
Tool Eye Measurement Lower Turret Yes
Multi Tap Transformer Yes
Rapid Traverse, X-Axis 1969
Rapid Traverse, Y-Axis 1575
Rapid Traverse, Z-Axis 1969

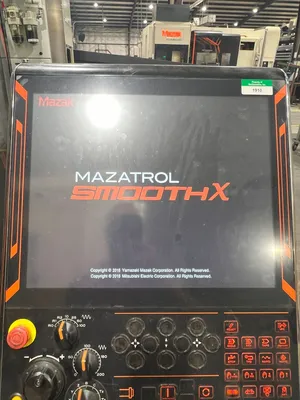

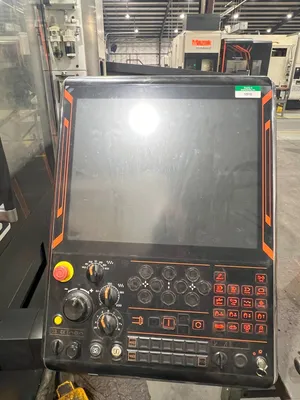

Control CNC (Mazatrol Matrix 2)
Dimensions 205" X 110" X 107"
Weight 37,840 lb

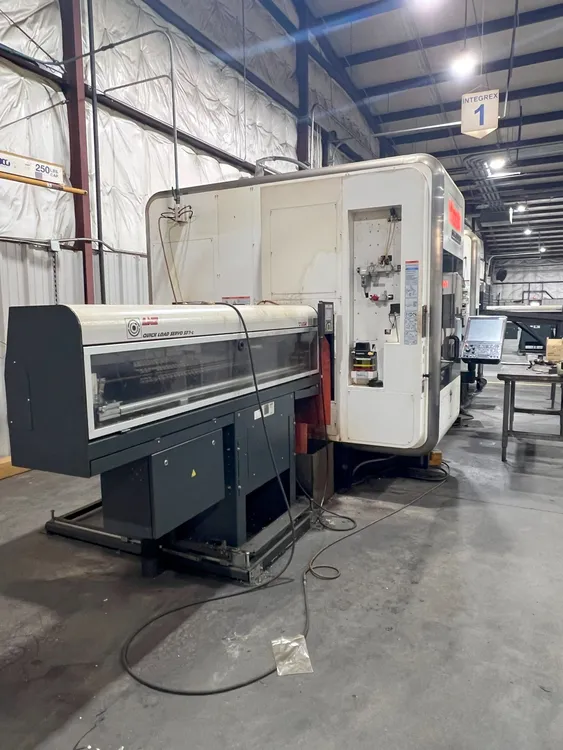

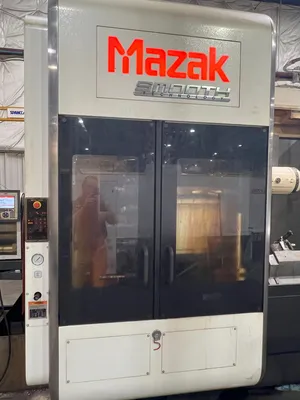

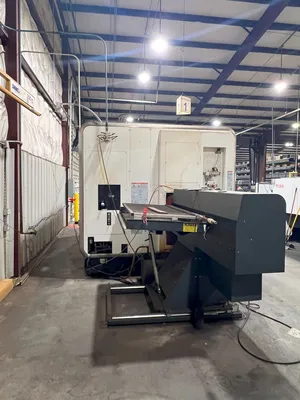

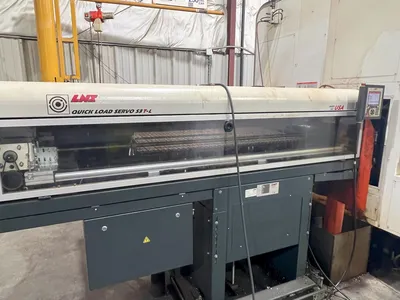

Live Articulating Milling Spindle, Sub Spindle, Lower Turret, Bar Feed, Chip Conveyor, High Pressure Coolant, Parts Loader, Mazak Smooth CNC
