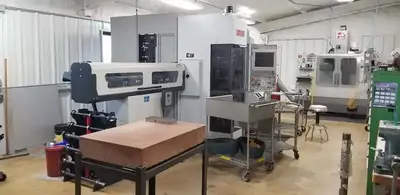

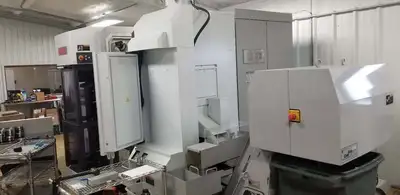

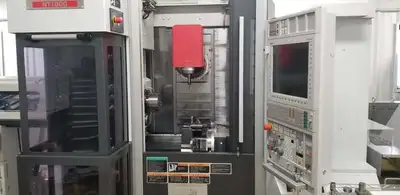

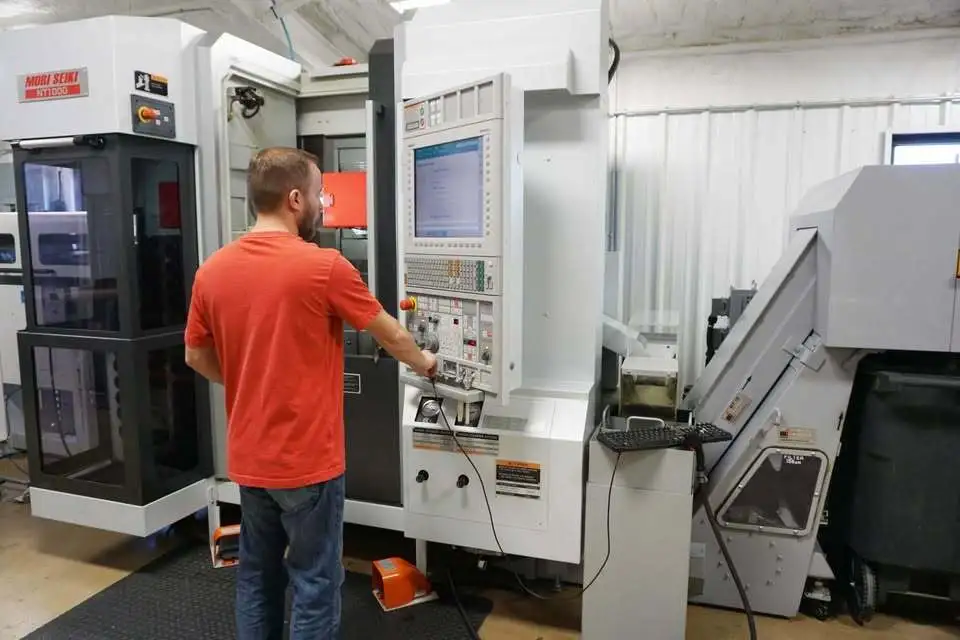

Mori Seiki NT-1000WZ Multi-Tasking CNC Lathe (2010)
Have one to sell?
ConditionUsed
1 available
Swing Over Cross Slide : 14.5'', Turret 2 11.8''
Maximun Turning Length: 16.6''
Y - Axis Travel: + / - 4.1''
B - Axis Min. Index Angle / Index Range: -120 - +120 DEGREE
B - Axis Spindle Speed: HSC 20,000 RPM
C - Axis Travel Main / Sub : .0001 Deg.
Bar Work Capacity No. 1, No 2: 2.0"/1.5''
Spindle Nose No 1, No 2: A2-5 / G6 Flat Nose
Hole Through Spindle No 1, No 2: 2.4'' / 2.2''
Spindle Speeds No 1, No 2: 6000 / 1000 RPM
Turret Configuration: 10
Turret Indexing Time: .26 Sec.
Machine Weight: 19,690 LBS.
Maximum Swing Of Work Piece: 14.5"
X - Axis Travel: 15"
Z - Axis Travel: 18.1" + 6.1"
X - Axis Travel TRT 2: 6.1"
Z - Axis Travel TRT 2: 24"
Main Spindle Motor: 15 HP
Number Of Tool For Tool Spindle: 38 ATC
Horse Power For Tool Spindle: 12 HP
Rapid Traverse Rate X, Y, Z, A: 945, 945, 629, 300 IPM
Sub Spindle Motor: 10 HP
1st Spindle Orientation 1st Spindle Output Switching Function
3d Interference Check With Open Cnc Function 3rd / 4th Reference Return
99 Tool Offsets A1 Contour Control Ii Function Axis Compensation
Air Blow For Spindle 1 Air Blow For Tool Tip Spindle
Auto Power Off Automatic Data Backup
Balanced Cutting Bell – Shaped Acc. / Dec. After Cutting Feed
Controllable Axis Compensation, Control Axis
Number, Simultaneous Axis Expansion Cs – Axis Contour Control
Custom Macro B Diameter / Radius Dynamic Switching
Interpolation Type
Embedded Ethernet And Fast Ethernet Software Fast Data Server

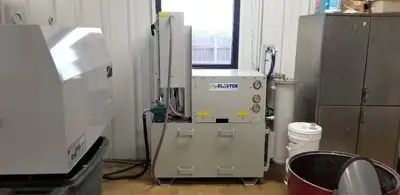

High Pressure Coolant Chip Blaster System High Speed Skip, Serial Spindle Interface
High Speed Tool Spindle 20,000 Rpm Hssb Interface Board
In Machine Work Piece Measuring System Optical
Touch Sensor Renishaw Omp 60 Inch/Metric Conversion
Main Spindle Kitagawa 6″ Hollow Chuck Package Lns Quickload 80 Servo S2 Short Magazine Barfeed
Capto C5 Tools
5” Chuck Sub Spindle All Available Lower Turret Tools
