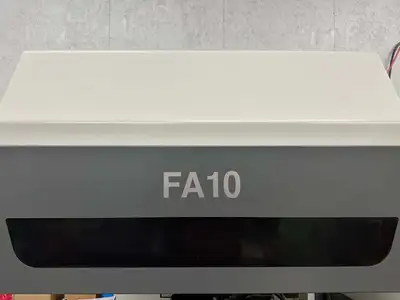

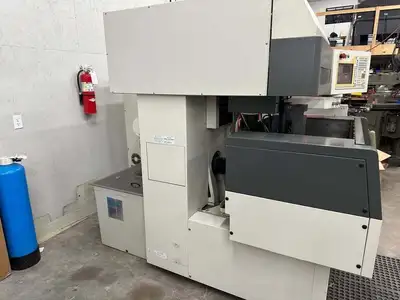

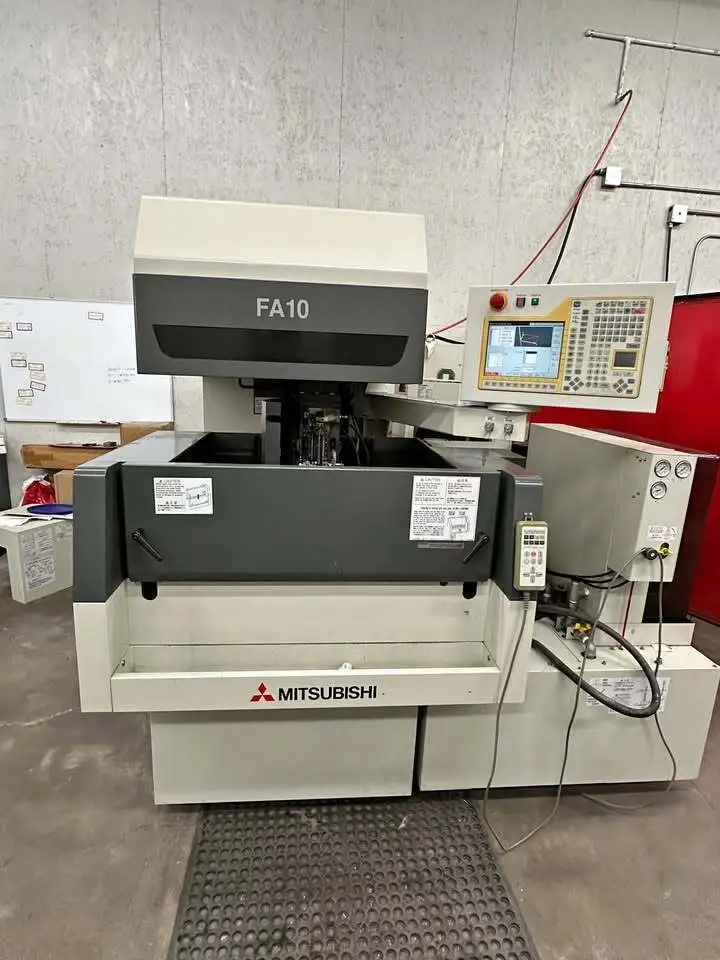

Mitsubishi FA-10 Wire EDM

Additional Axis (U/V): ±1.25 inches travel for taper cutting capability
Max Workpiece Size: Around 31.5" × 23.6" × 8.4" to 8.6"depending on model specifics
Max Workpiece Weight: Up to 1100 lbs
Table Size: Approximately 23.2" x 20.2"
Wire Diameter Range: 0.004" to 0.012" (0.1 to 0.3 mm)
Minimum Hole Diameter: Around 0.02" (0.5 mm)

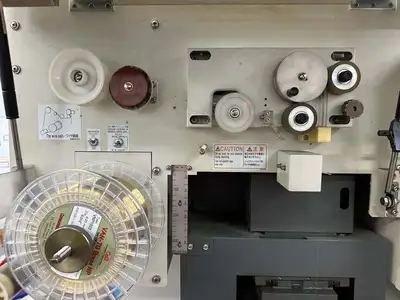

Wire Spool Size: Standard spool size about 10 to 22 lbs (4.5 to 10 kg), with options for larger spools
Maximum Wire Speed: Approximately 23 m/min
Surface Finish: Capable of achieving surface roughness down to Ra 0.32 μm under optimized conditions
Taper Cutting Capacity: ±15 degrees at 4 inches thickness, up to ±30 degrees max
