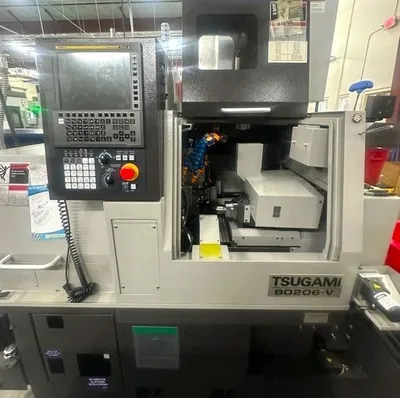

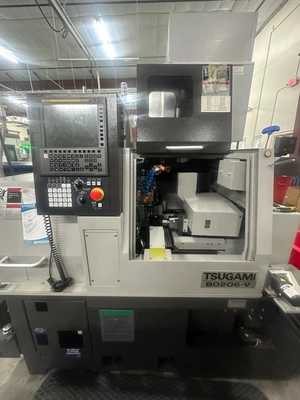

Very Very Low Hours, The B0206-V is a 20 mm, 6-axis chucker convertible Swiss built with Tsugami’s opposed gang type tool post, Y2-axis capability to the sub spindle, and a rigid cast iron frame.

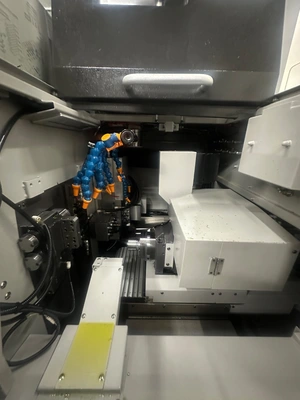

This Swiss CNC automatic lathe offers a total of 27 tool positions, including 2 modular stations for a double face mill, 4 station static drill block, double angular face mill, ER16 cross, or thread whirling. The B0206-V has 10,000 rpm main and 12,000 rpm sub spindle speeds. It also allows back milling operations to be overlapped with the machining operations on the main spindle, significantly reducing cycle time.
The Tsugami B0206-V is CONVERTIBLE and may be run as a traditional sliding headstock Swiss Style Lathe using the guide bushing or run without the guide bushing with the addition of an optional chucker kit. When run in chucker mode, the turning center can use drawn bar stock instead of centerless ground stock, dramatically reducing remnant size and increasing shop flexibility.
Tsugami B0206-V 6-Axis Opposed Gang Tool CNC Swiss Type Lathe (2023)
Maximum Bar Stock 20 mm / 0.79″
# Axes 6
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 170 mm / 6.69”
45 mm / 1.77”
# Tool Positions 27
# Live Tool Positions (std / max) 11/17
Control FANUC 0i-TF Plus
Main Spindle Speed 10,000 rpm
Sub Spindle Speed 12,000 rpm
Live Tool Speed 8,000 rpm
Main Spindle Motor 4.9/7.3 Hp (3.7/5.5 kW)
Weight 4,078 lbs (1,850 kg)
Footprint: W x D x H 1,750× 1,055× 1,700 mm
68.9” x 41.5” x 66.9”

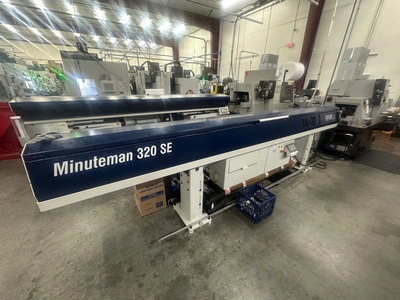

Edge Minuteman 320 SE2 Bar Feed System
MP Systems 2000 PSI High Pressure Coolant For Oil-8 Port
Tri Mist Mist collector
Hepa Filter For Tri Mist
Firetrace FK-5-1-12
RYG Patrol Light
