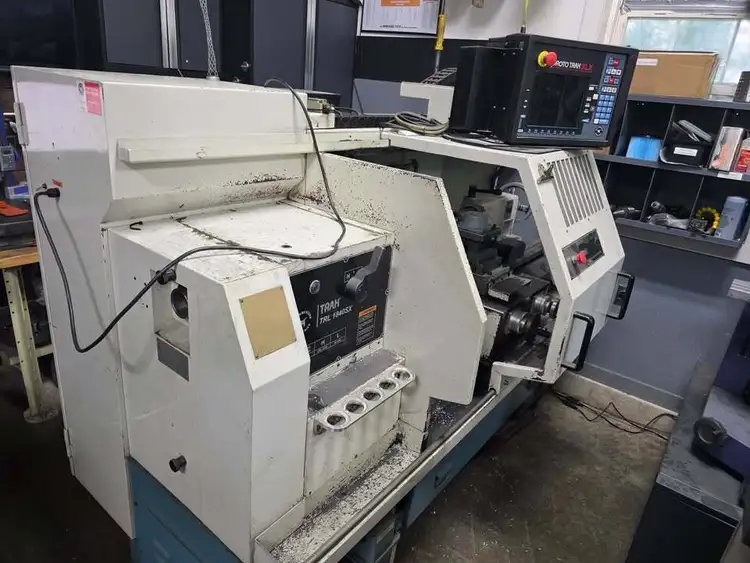

Southwestern Industries Trak TRL1840SX CNC Lathe (2007)
Have one to sell?
ConditionUsed
1 available

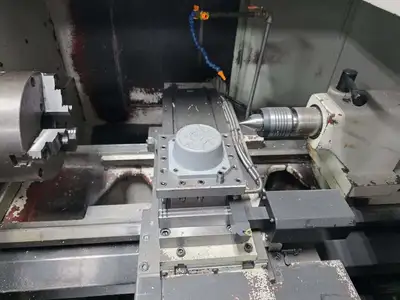

Indexing Turret, Steady Rest, SLX Control
Southwestern Industries Trak TRL1840SX CNC Lathe (2007)
Swing Over Ways: 18.5"
Swing Over Cross Slide: 9.0"
Max Center Distance: 40.2"
Center Height: 9.0"
Cross Slide Travel: 9.0"
Hole Through Spindle: 2.36"
Spindle Nose: D1-6 Camlock
Spindle Speeds: Programmable Variable in 3 Ranges 50-270 / 150-850 / 450 - 2500 RPM
Tailstock Quill Travel: 6.3" Manual
Tailstock Quill Diameter: 2.95"
Tailstock Quill Taper: #5MT
Spindle Drive: 10 HP

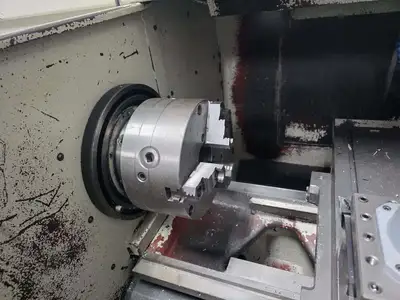

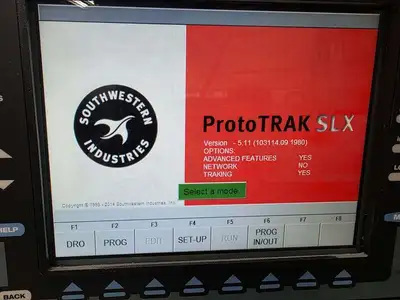

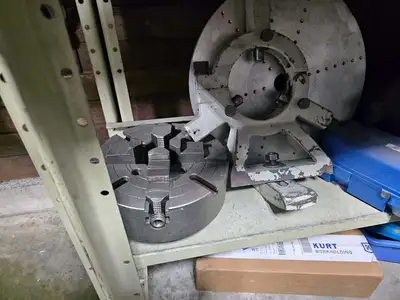

Indexing Turret, Steady Rest, SLX Control, 3 and 4 Jaw Chuck, New Pendant from SWI July 2024.
Tooling, Centers
