HAAS SL30T W/ Bar Feeder CNC Lathe (2005)
Have one to sell?
ConditionUsed
1 available

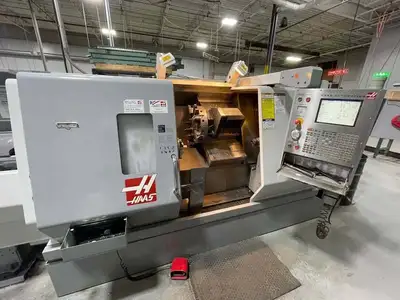

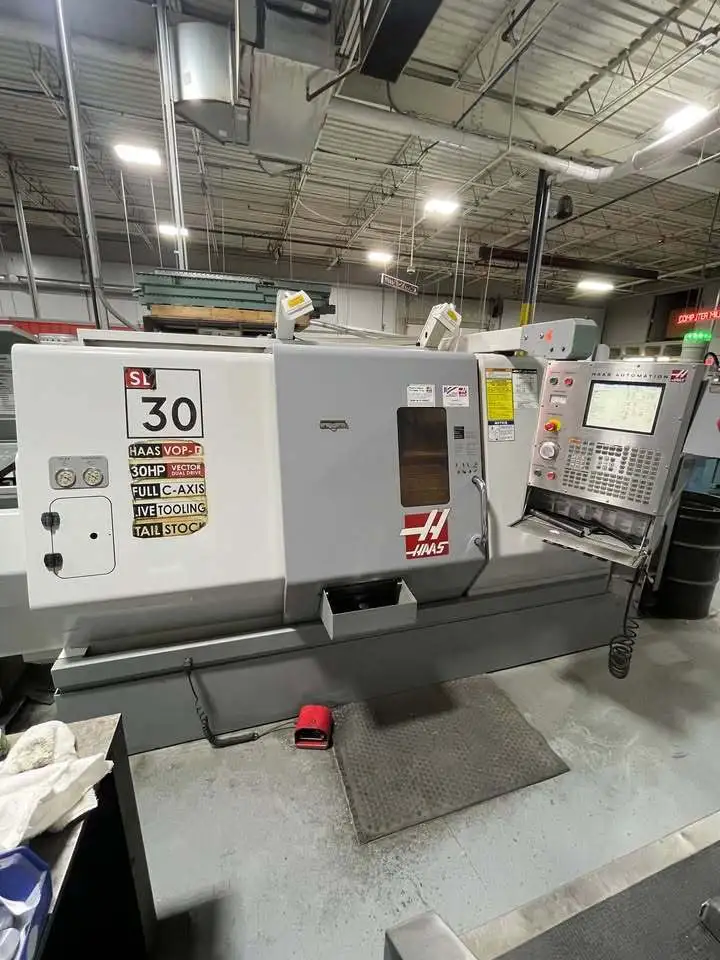

Haas SL30T CNC Lathe (2005)
Chuck: 10"
thru hole: 3"

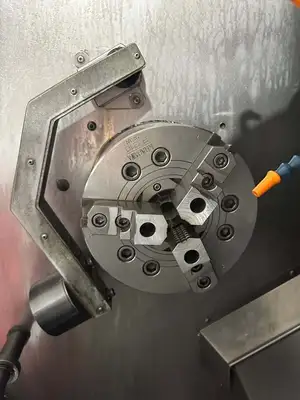

Chuck Size 10″ Hydraulic Chuck 3-Jaw
Maximum Swing Over Apron: 30"
Maximum Swing Over Cross Slide: 14.5"
Maximum Cutting Diameter: 17"
Maximum Turning Length: 34"
Distance Between Centers: 39"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
Spindle Speed: 3,400 RPM
Spindle Motor: 30HP
Turret Type: 12 Positions Bolt on Type
Tailstock Travel: 33.5"
Rapid Traverse Rates: 710-IPM
Electrical: 208/230V, 3ph
Machine Dimensions: 161" x 77" x 74"
Approximate machine Weight: 13,900Lbs

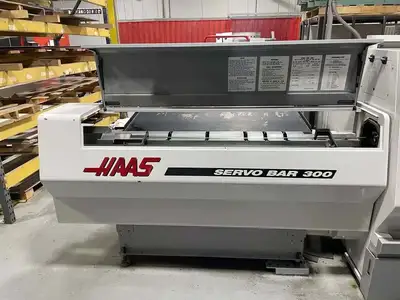

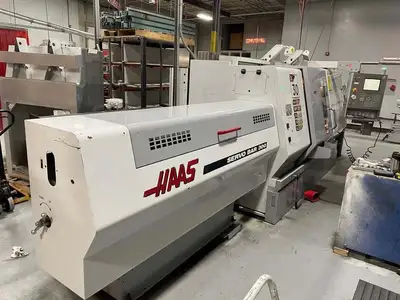

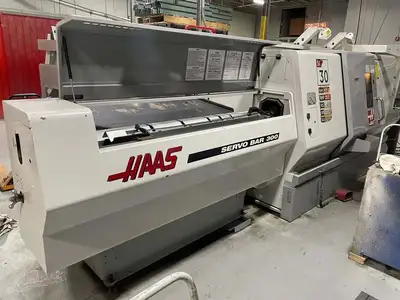

- Servo Bar 300
- Full C Axis
- Live Tooling
- Parts Catcher
