| Swing | 25.25" | 641.35 mm |
| Machining Length | 16.5" | 419.1 mm |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 2.31" | 58.674 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Tailstock | Yes | Yes |
Swing Over Apron: 25.25"
Swing Over Cross Slide: 16.25"
Max Cutting Diameter: 14.0"
X-axis travel: 7.8"
Z-Axis Travel: 14"
Rapid Traverse (X,Z): 1200 IPM
Spindle Bore: 2.3"
Bar Capacity: 1.75"

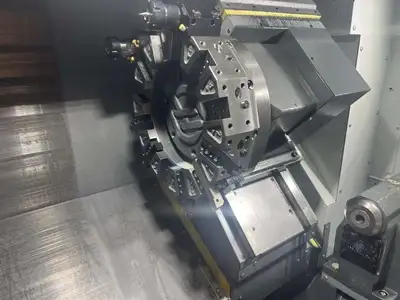

Turret Position: 12
Spindle Motor: 15 HP
Bar Feeder: Maximum Capacity 1.75"
Comes with Liners for 0.375"-1.5"
- 1GB Onboard Memory
- 30 Gallon integrated coolant tank with 3/4 HP Pump
- 6000 RPM Spindle
- 12 Station Turret w/ various tooling blocks
- Power Failure Detection Module
- Ethernet & Wireless Interface
- Touch Screen Controls
- Automatic Tool Pre-setter
- User-Definable Macros
- Visual Part Programming System
- Chip Conveyor
