Desktop Metal Shop 3D Printer System (2022)

Desktop Metal Shop 3D Printer System (2022)

The world’s first metal binder jetting system designed to bring metal 3D printing to machine shops. In addition to the turnkey standard system, Desktop Metal also offers the Shop System™+ and Shop System™ Pro packages for added flexibility, functionality, and value.

The Printer
The Shop System™ printer features the most advanced printhead on the market with over 70,000 nozzles jetting 1.2pL droplets at nearly 10 kHZ to achieve high resolution, 3D printed parts at a fraction of the cost of laser-based systems.¹
Build sizes
350 x 220 x 200 mm
350 x 220 x 150 mm
350 x 220 x 100 mm
350 x 220 x 50 mm
Resolution
1600 x 1600 DPI
Footprint
199.4 x 76.2 x 162.6 cm
(78.5 x 30 x 64 in)

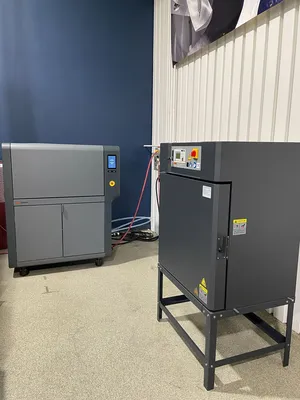

The Drying Oven
After printing, the build box containing the printed parts is placed into a crosslink oven. Crosslinking is a thermal cure process that gives printed parts in the green state additional strength before depowdering.
Dimensions (H x W x D)
1100 x 910 x 740 mm (43.3 x 35,8 x 29.1 in)
Weight (without powder)
110 kg (243 lb)
Power requirement
230 VAC, 50/60 Hz, 17.5 A, 2.97 kW

The Powder Station
With easy access portholes, a hand-held air pick, built-in powder sieving and recycling, and a vacuum port for easy powder maintenance, the powder station provides closed-loop powder management and recycling.
Powder management
Built in powder recovery and sieving
Controlled metering
Sieving rate
5 kg/hr
Footprint
101.6 x 68.6 x 162.6 cm
(40 x 27 x 64.0 in)

The Furnace
The Shop System™ furnace is a shop-safe high-temp sintering oven built for cost-effective high throughput of 3D printed parts. Featuring external gas hookup and adjustable shelving, the furnace easily and affordably scales to mid-volume manufacturing.
Gas
External gas hookup
Peak temp
1400 °C
Footprint
161.8 x 138.0 x 75.4 cm
(63.7 x 54.3 x 29.7 in)

Powder Blender

16L build box

Misc consumables

200kg of Stainless Powder

****** Built New (2022) Installed (2023)
