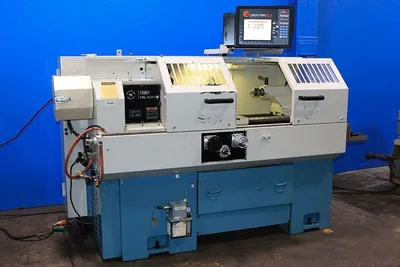

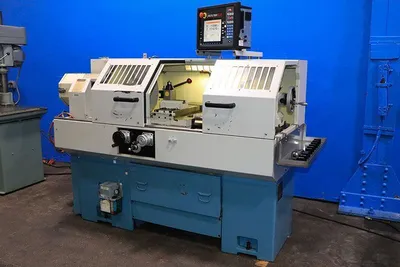

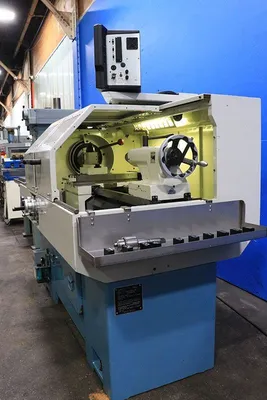

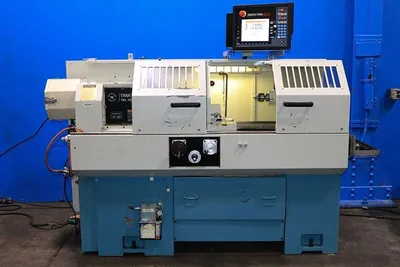

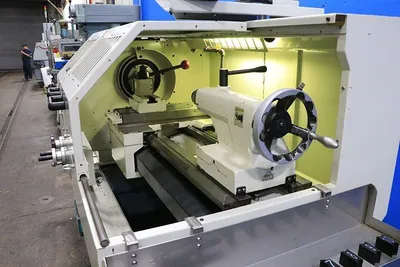

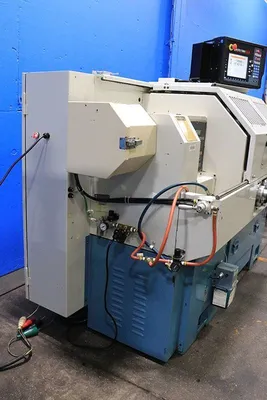

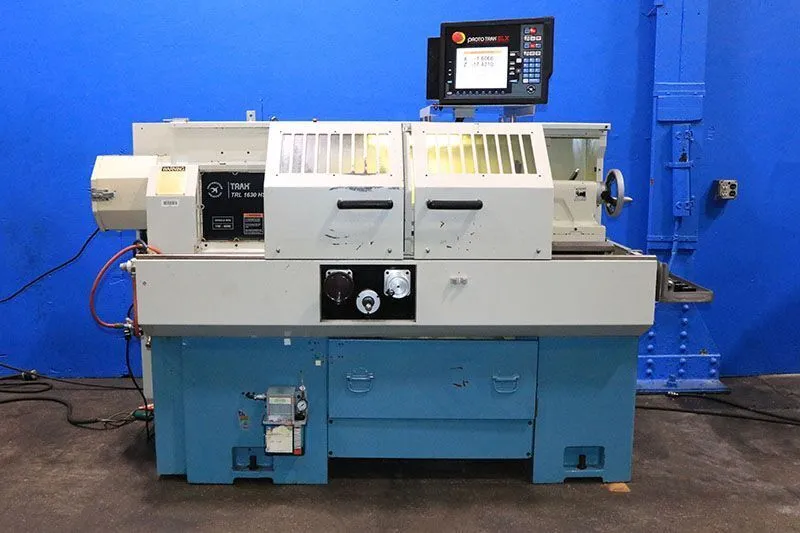

Southwestern Industries Trak TRL 1630 HS-SX 2 Axis CNC/ Manual Flat Bed Lathe (2009)
Have one to sell?
ConditionUsed
1 available
Height of Centers: 8"
Swing Over Bed: 16"
Swing Over Cross Slide: 8.6"
Swing Over Saddle Wings: 16"
Distance Between Centers - Maximum: 30"
Travels:
- Cross Slide (X): 8.6"
- Longitudinal (Z): 30"
Spindle:

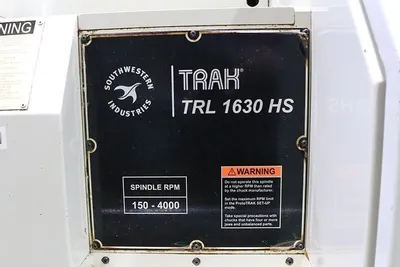

- Speed Range - Infinitely Variable: 150 - 4,000 RPM
- Taper: A2-4
- Bore: 1.57"

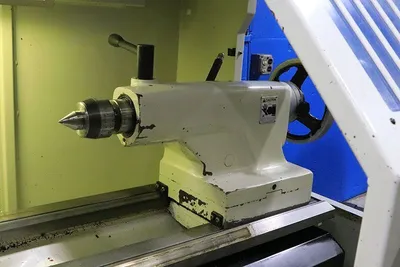

Tailstock:
- Quill Travel: 6.3"
- Quill Diameter: 2.36"
- Quill Taper Hole: #5 MT
Electrics: 220V/3Ph/60Hz

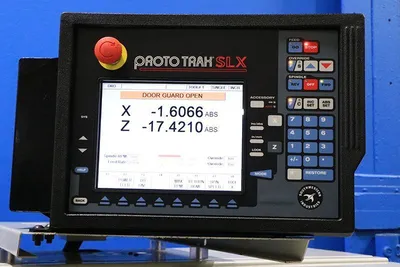

- SOUTHWESTERN INDUSTRIES-PROTOTRAK MODEL: SLX CNC CONTROL
- TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION
- CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
- SERVO MOTORS & GROUND BALLSCREWS
- AC SPINDLE DRIVE
- ELECTRONIC HANDWHEELS FOR X & Z MANUAL TRAVERSE
- JOGSTICK FOR CONVENIENT JOG AT RAPID TRAVELS
- UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS

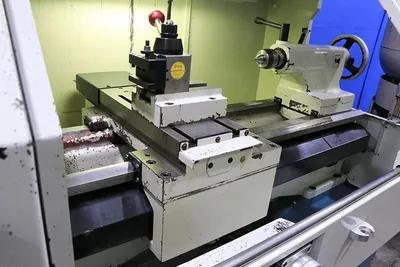

- DORIAN QUICK CHANGE TOOLPOST & HOLDERS

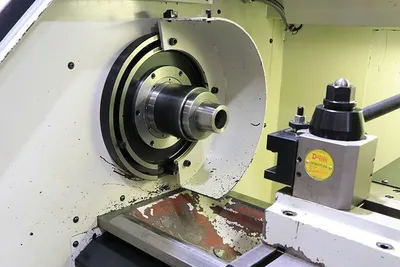

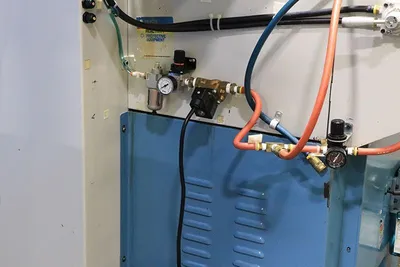

- DUNHAM AIR ACTUATED COLLET CLOSER AND NOSEPIECE

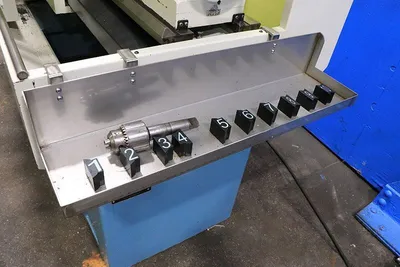

- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK
- HARDENED & GROUND BED WAYS

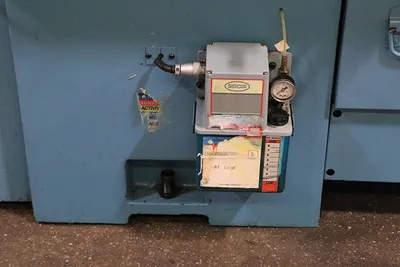

- AUTOMATIC CENTRAL LUBRICATION SYSTEM FOR THE SLIDE WAYS & BALLSCREWS
- COOLANT SYSTEM
- ENCLOSURE
- 7.5 HORSE POWER 3/60/230 VOLT SPINDLE DRIVE MOTOR & ELECTRICAL CONTROLS
