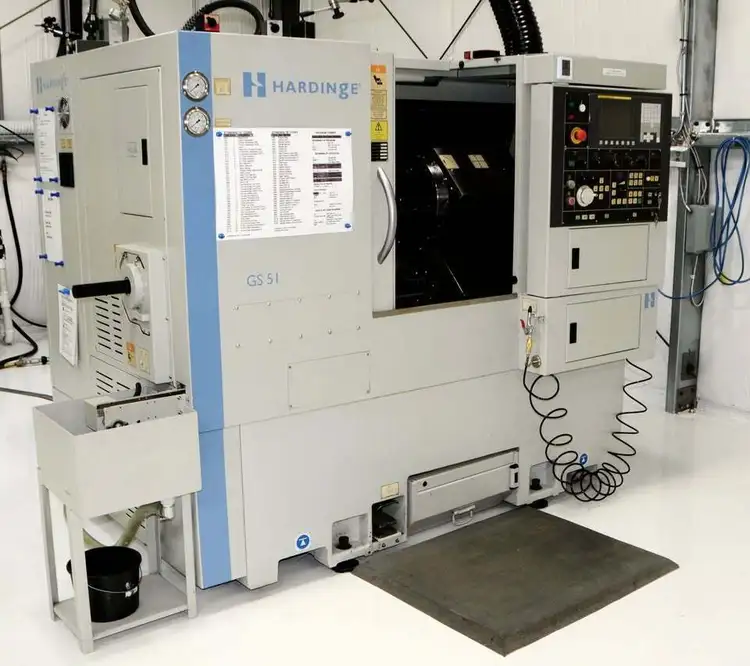

Hardinge GS51 CNC Lathe (2011)
Have one to sell?
ConditionUsed
1 available
2 Axis, 12 Station VDI Turret, Coolant Filtration, Fanuc 0iTD CNC
Hardinge GS51 CNC Lathe (2011)
Chuck Size
8"
Bar Capacity
2"
Swing
17"
Turning Diameter
11.1"
Spindle Speed
5,000 RPM
Control
Fanuc 0iTD
Distance Between Centers
17.95"
Turret
12 Station
Chip Removal
Chip Conveyor
Machine Dimensions
79" L x 65" D x 70" H (116.5" Long with Conveyor)
Machine Weight
6,200 Lbs Including Conveyor
Chuck Size
8"
Bar Capacity
2"
Swing
17"
Turning Diameter
11.1"
Spindle Speed
5,000 RPM
Control
Fanuc 0iTD
Distance Between Centers
17.95"
Turret
12 Station
Chip Removal
Chip Conveyor
Machine Dimensions
79" L x 65" D x 70" H (116.5" Long with Conveyor)
Machine Weight
6,200 Lbs Including Conveyor

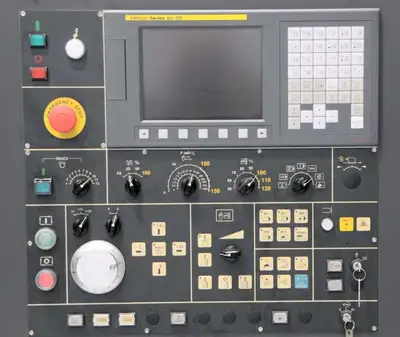

• Fanuc Series Oi-TD Control
• Cutting Time: 1966 Hours (equivalent to less than one year of one-shift operation)

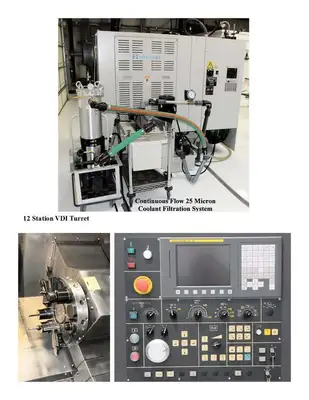

• 12 Position VDI Turret
• 7 VDI Tool Holders
• High Pressure Coolant 280 PSI

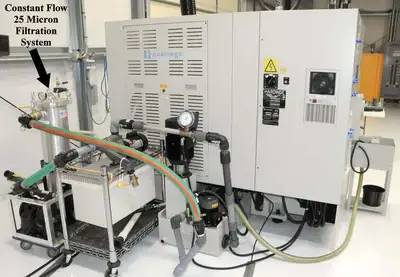

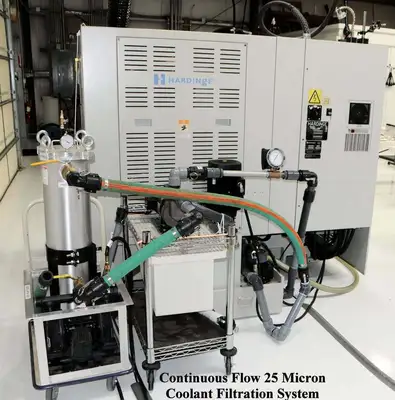

• Custom Made Continuous Flow 25 Micron Coolant Filtration at ~22 gpm (no chips enter the Coolant Pumps)
• Custom Ventilation System Sends Mist Out of the Shop
• 4 Full Length Spindle Liners Plus Original Hardinge Spindle Liner Kit
• Light Turning Only (no Hard or Heavy Turning)
• This Machine Only Turned Delrin and 1/2" Diameter Stainless Steel
• One Owner, Always Operated in a Fully Climate Controlled Shop
