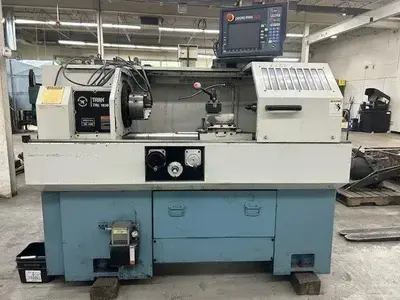

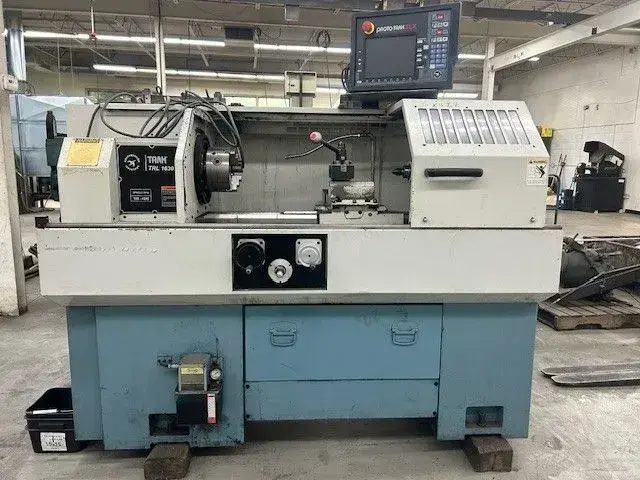

Southwestern Industries Trak TRL 1630 HS-SX 2 Axis CNC/ Manual Flat Bed Lathe (2015)
Have one to sell?
ConditionUsed
1 available
Height of Centers: 8"
Swing Over Bed: 16"
Swing Over Cross Slide: 8.6"
Swing Over Saddle Wings: 16"
Distance Between Centers - Maximum: 30"
Travels:
- Cross Slide (X): 8.6"
- Longitudinal (Z): 30"
Spindle:
- Speed Range - Infinitely Variable: 150 - 4,000 RPM
- Taper: A2-4
- Bore: 1.57"

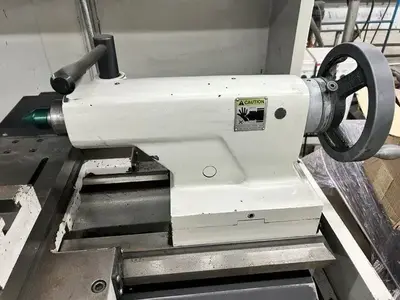

Tailstock:
- Quill Travel: 6.3"
- Quill Diameter: 2.36"
- Quill Taper Hole: #5 MT
Electrics: 220V/3Ph/60Hz

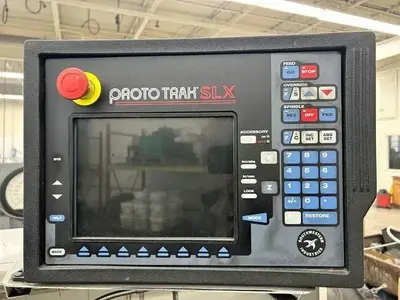

Southwestern Industries Proto Trak SLX CNC Controller (2-Axis Digital Readout During Manual Operation)

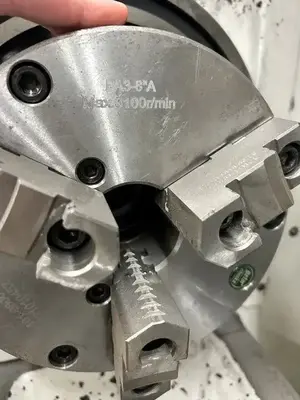

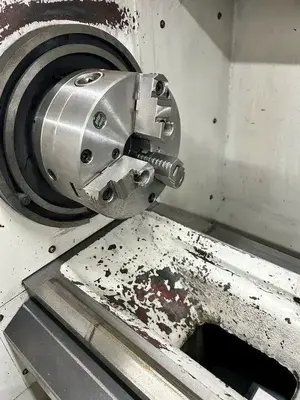

8" Gator model PA3-8" 3-Jaw Forged Steel Adjustable Scroll Chuck
Coolant Filtration System
Constant Surface Speed
Programmable Spindle Speeds
Servo Motors & Ground Ballscrews
AC Spindle Drive
Electronic Handwheels for X & Z Manual Traverse
Jogstick for Convenient Jog at Rapid Travel
Unlimited Number of Thread Pitches & Up to 10 Leads

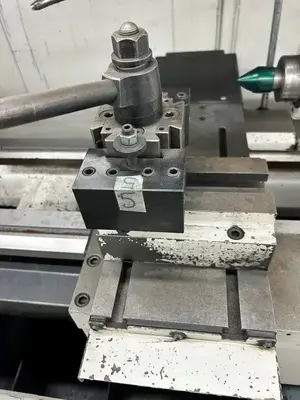

Aloris Quick Change Tool Post

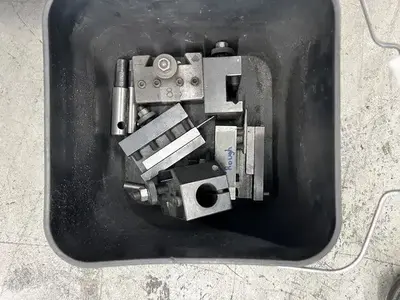

Misc. Tool Holders
Tailstock
