| size | 34" x 120" | 34" x 120" |
| Swing | 34" | 863.6 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 4.125" | 104.77 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 800 RPM | 800 RPM |
| Swing Over Cross Slide | 25" | 635 mm |
| Dimensions | 55" x 200" | 55" x 200" |
| Weight | 11900 | 11900 |

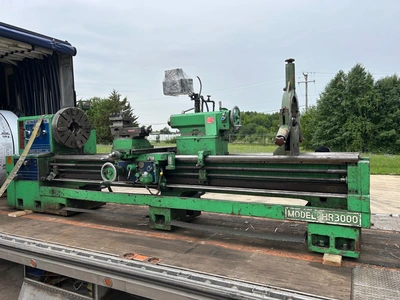

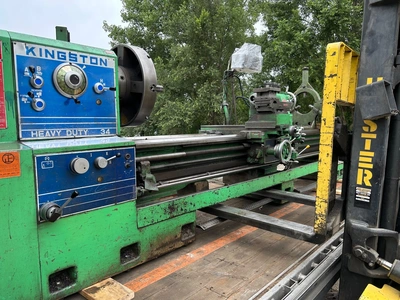

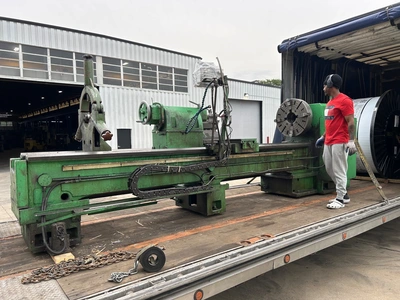

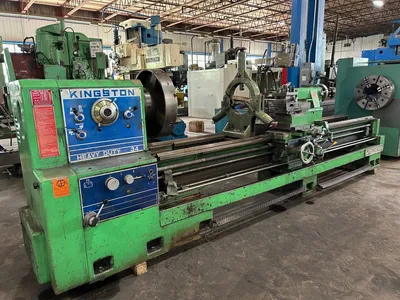

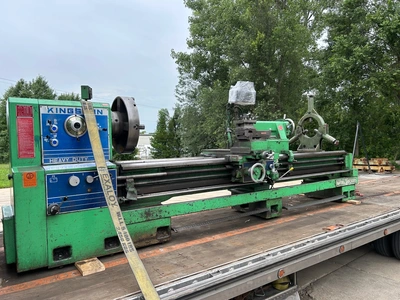

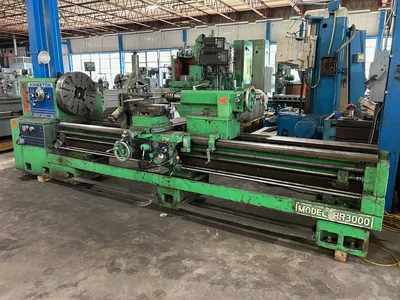

Kingston Model HR3000 30" X 120" Gap Bed Engine Lathe
Swing Over Bed: 34"
Swing Over Cross Slide: 24-3/4"

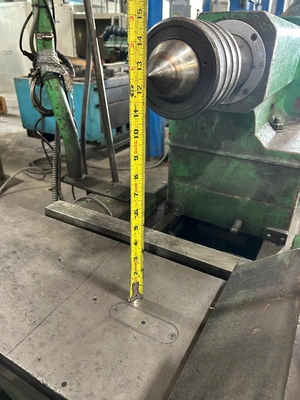

Swing Through Gap: 44-1/2"
Center Distance: 120"
Spindle Nose: D1-11
Spindle Bore: 4-1/16"
Spindle RPM: 8-800
Longitudinal Feeds: 0.00243-0.0337"
Cross Feeds: 1/2 of longitudinal feeds
Threading: inch/metric
Spindle HP: 20
Floor Space: W: 55" x 200"
Machine Weight: 11,990

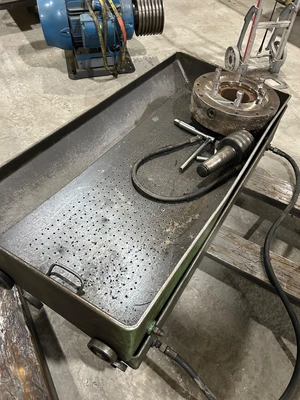

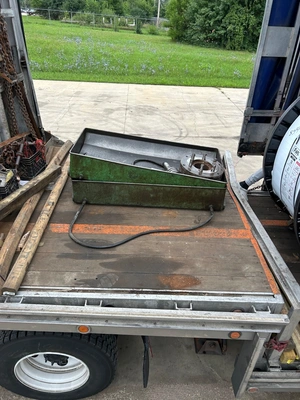

Hard ways, Inch / Metric Threading, Power Rapid Traverse, 12.5” 4 Jaw Chuck, 15” J jaw Chuck 13” Capacity Roller Steady Rest, Four Way Toolpost, Sony 2 Axis Digital Readout, Heavy Duty Tailstock Thread Dial, Foot Brake, Chip Pans,
