| size | 34"x120" | 34"x120" |
| Swing | 34" | 863.6 mm |
| Centers | 1,200" | 30,480 mm |
| Spindle Bore | 4" | 101.6 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Swing Over Cross Slide | 34.75" | 882.65 mm |
| Dimensions | 55" x 200" | 55" x 200" |
| Weight | 11900 | 11900 |

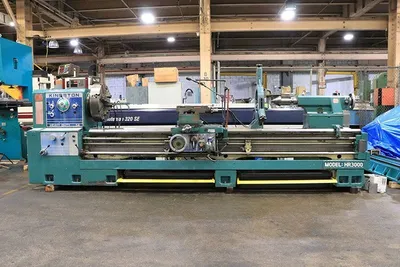

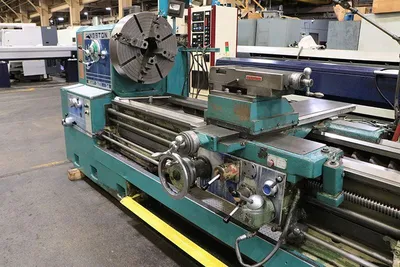

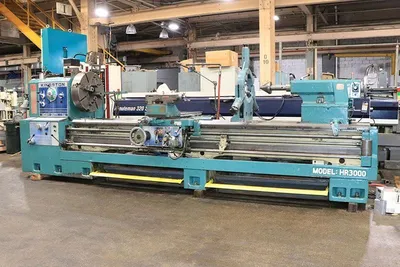

Kingston Model HR3000 30" X 120" Gap Bed Engine Lathe
Swing Over Bed: 34"
Swing Over Cross Slide: 24-3/4"
Swing Through Gap: 44-1/2"
Center Distance: 120"
Spindle Nose: D1-11
Spindle Bore: 4-1/16"
Spindle RPM: 8-800
Longitudinal Feeds: 0.00243-0.0337"
Cross Feeds: 1/2 of longitudinal feeds
Threading: inch/metric
Spindle HP: 20
Floor Space: W: 55" x 200"
Machine Weight: 11,990
Inch & Metric Threading Capability

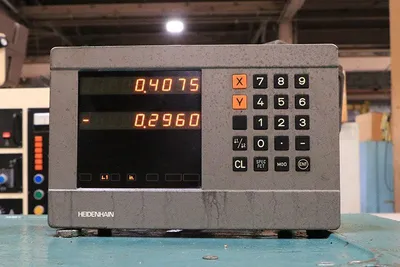

Heidenhain Two Axis Digital Readout

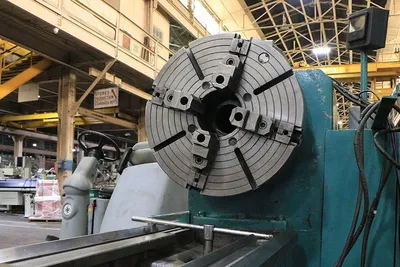

24" Cushman 4-Jaw Chuck
13" Capacity Roller Type Steady Rest
Rapid Traverse
Headstock Center Sleeve
This equipment has been sold. Similar equipment available now is shown below.
