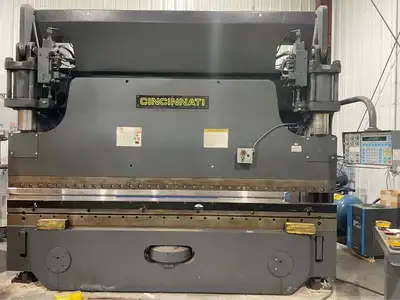

Cincinnati Formaster 175 FM II 175 Ton x 10' Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
175 Ton x 10, 12' Overall. The Cincinnati Form Master II CNC Press Brake combines high speed hydraulics with a CNC control that offers unimited possibilites to fabricators faced with a variety of forming requirements. Parts can be efficiently processed individually in small, medium and large batches, or programmed and stored for later recall.
Tonnage - 175 Tons
Bed and Ram Length - 12'
Distance Between Housings - 10' 6"
Bending Speed(s) - Variable 1 - 65 IPM
Ram Return Speed - Variable 1 - 290 IPM
Programmable Controlled Axes - Y1, Y2, X1, X2, Crowning, Manual R

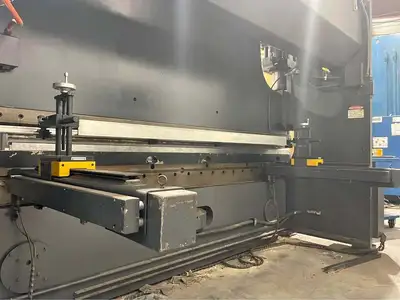

Programmable Backgauge Distance - 24"
Throat Depth - 10"
Maximum Ram Stroke - 8"
Max Open Height - 17"
Closed Height - 7"
Drive Motor - 25 HP
