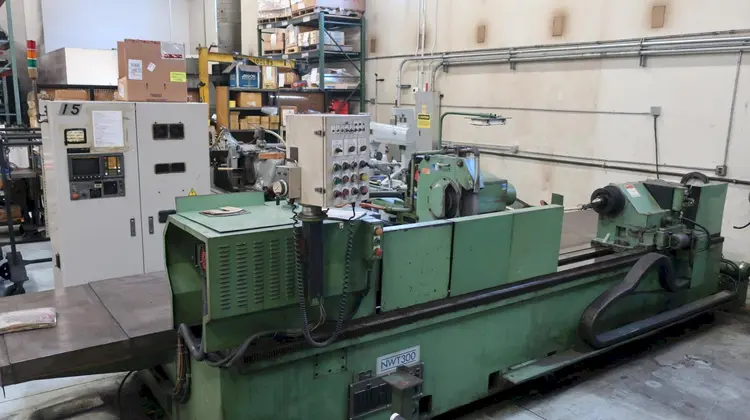

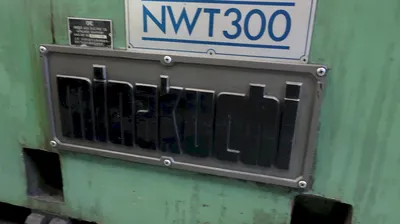

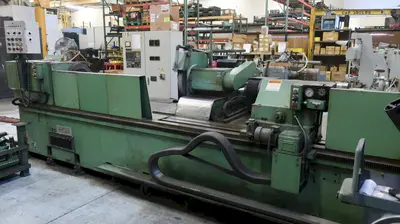

Minakuchi NWT-300-60F2 32" x 120" OD ID CNC Cylindrical (1990)
Have one to sell?
ConditionUsed
1 available
OD / ID Control: Fanuc Series O-GC
Minakuchi NWT-300-60F2 32" x 120" OD ID CNC Cylindrical (1990)
Machine Overall Capacity: 32" x 120"
Swing: 32"
Distance Between Centers: 120"
Max. Swing over Table: 32"
Max. Grinding Diameter: 30"
Max. Work Piece Weight: 20000 LBS. Estimate at 32" x 120"
Grinding Wheel: 24" x 1.968" x 10"
Max. Grinding Wheel Width: 1.968"
Spindle Speed: 1410/1530 RPM
Spindle Wheel Motor: 30 HP
Machine Weight: 30000 Lbs. Approximately
Control: Fanuc Series O-GC (Parameters need to be reloaded)
Fanuc Remote Hand Wheel
Machine control functions: Coolant On/Off Switches, MODE: Off/Auto/Jog/Handle/Zero, Over Ride: 0-150%, Buttons: PRC, HIX, Spindle Inching, OTR on/off Switch, Cycle Start, Spindle Off, RT, Return, Feed Hold, Grind Off, ZRN, Emergency Stop Button
Taper or Crowning Grinding
Wheel Head Motor
Work Head
Work Rest Supports
Extra Wheel Hub
Tailstock
I.D. Internal Fischer Spindle
Showa Way Lubrication System
Coolant System with Paper Filtration
Manuals
