| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 50 | 50 |
| Taper | CT 40 | CT 40 |
| Dimensions | 157" x 94" x 101" | 157" x 94" x 101" |
| Weight | 19,100 lbs | 19,100 lbs |

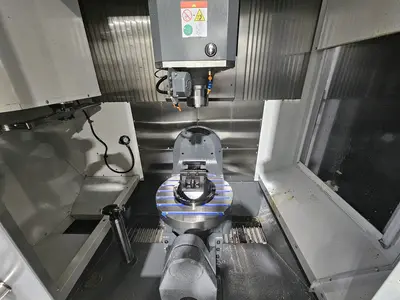

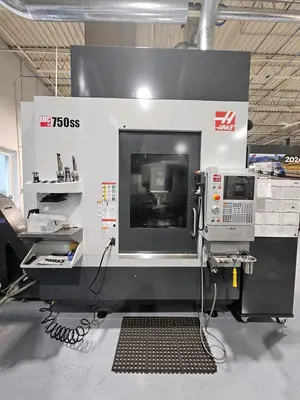

Haas UMC-750SS 5 Axis Vertical Machining Center (2023)
Table size - 19.7" x 24.8"
Table load capacity - 660 lbs
X axis travel - 30"
Y axis travel - 20"
Z axis travel - 20"
B axis rotate of trunnion: -35 Degrees to 110 Degrees
C axis table rotation: .001 Degree Positioning
Spindle taper: CAT #40
Spindle speed: 15,100 RPM
Spindle motor: 30 HP
Distance Spindle Nose to Table Top: 4" - 24"
Tool magazine: 50 + 1 Position Tool changer
Maximum Tool Diameter / Length / Weight: 5" / 12" / 12 lbs.
Rapid traverse rates: 1200 IPM
Maximum feed rates: 650 IPM
Machine dimensions: 157" x 94" x 101"
Machine weight: 19,100 lbs
- 15,000-rpm Spindle

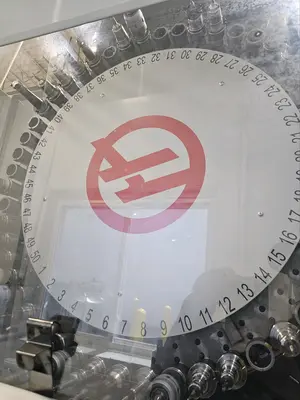

- High-Speed 50+1 Side-Mount Tool Changer
- Through-Spindle Coolant, 300 psi (21 bar)
- Chip-Disk Filtration Chip Conveyor
- Enclosure Exhaust System
- High-Pressure Flood Coolant
- Programmable Coolant Nozzle
- Through-Tool Air Blast
- 95-Gallon Coolant Tank

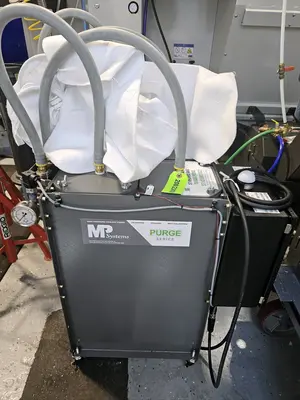

- Auxiliary Coolant Filter
- 24V Work Table Light
