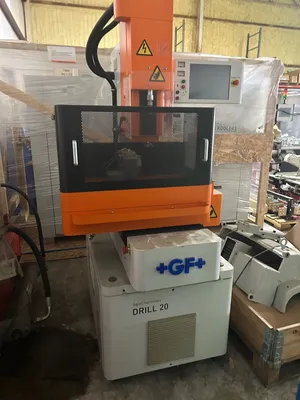

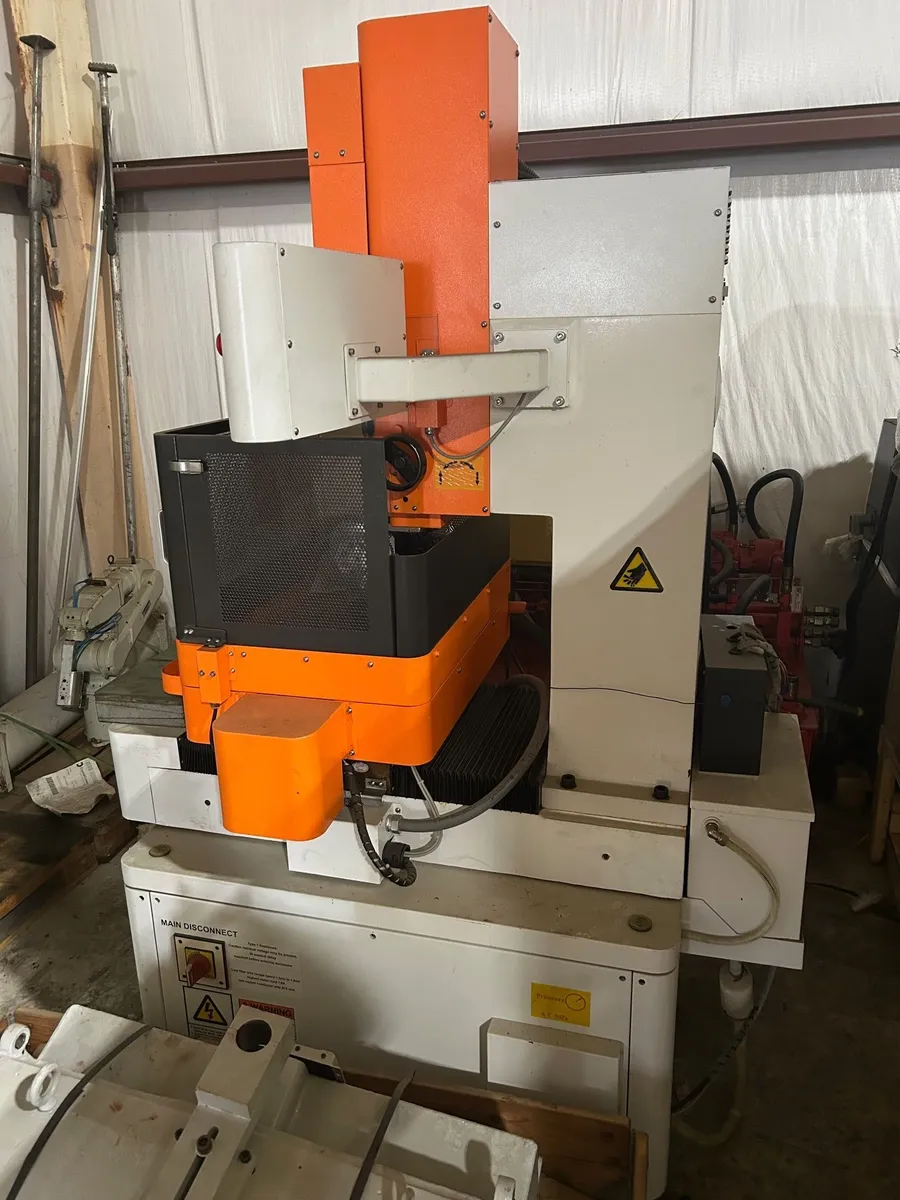

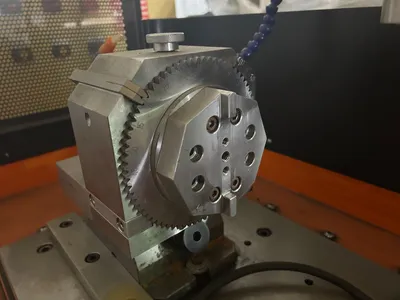

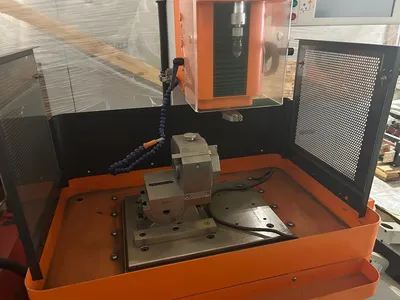

AgieCharmilles Drill 20 CNC EDM Electrical Discharge Machine (2019)

Description

Low Hour AgieCharmilles Drill 20. setup time

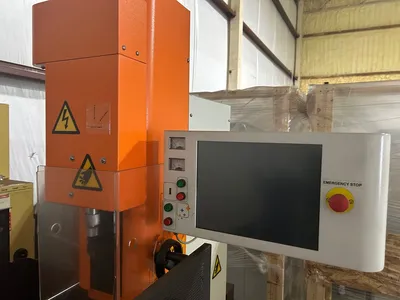

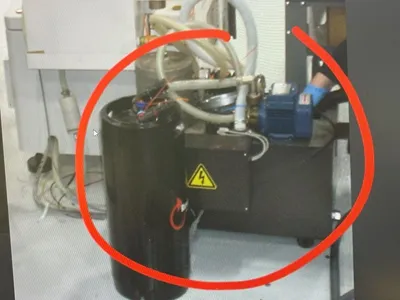

Process monitoring and optimization are implemented via the
operator console. Sensors for short circuits, temperature and
liquid level ensure safe operation. Numerical controlled axes X,
Y and Z with travel paths of 300 x 200 x 300 mm (11.8 x 7.8 x
11.8 in), and a variety of touching cycles offers convenience for
the operator when set up.
Simple data input and great application spectrum

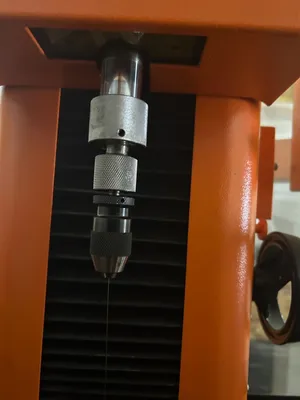

The high-speed drill DRILL 20 has an integrated rotating
spindle. The axes X, Y and Z are motor powered and controlled by CNC. The cast-iron open-front frame construction
guarantees optimum temperature stability. The data input on
the operator console is quick and simple. Technology settings are selected automatically by material electrode/piece,
piece height and electrode diameter. Touching cycles can be
programmed and called up with a few commands.
Fine hole drilling
DRILL 20 is widely used for drilling starting holes with the
electrode range Ø 0.1 – 3 mm (0.004 – 0.12 in) and with
electrode materials brass, copper and carbide, and workpiece materials steel and carbide. The newly added technologies for electrode Ø 0.1 – 0.3 mm (0.004 – 0.012 in) are
suitable for drilling fine start holes on lead frames and
high-speed stamping molds, etc. DRILL 20 is a sensible
complement to GF Machining Solutions wire cut EDM.
Eroding small holes of various
diameters and allowing for different
materials and workpiece heights
Machine setup
• Automatic and manual axis movement
• Choice of four speeds of axes X, Y, Z:
high, middle, low or step by step
• Edge find
• Inside/outside center find
• Corner find
