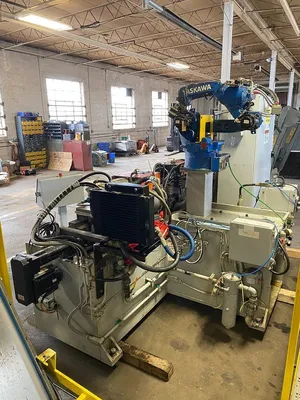

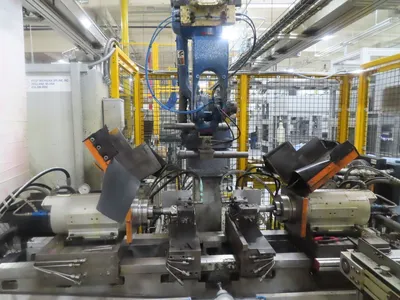

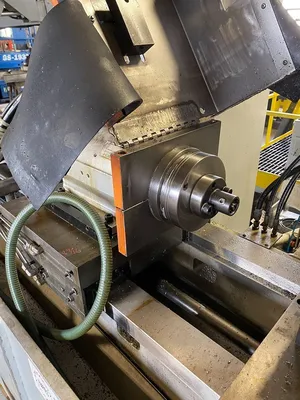

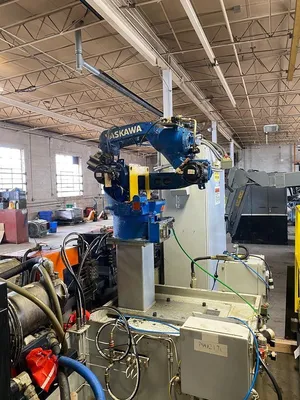

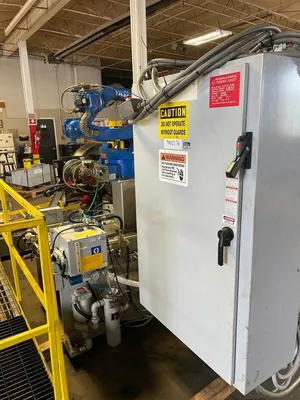

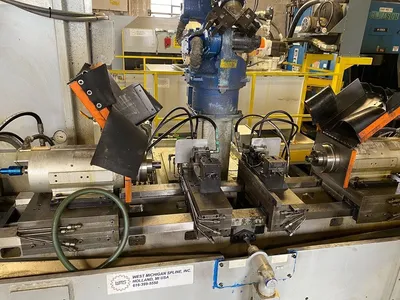

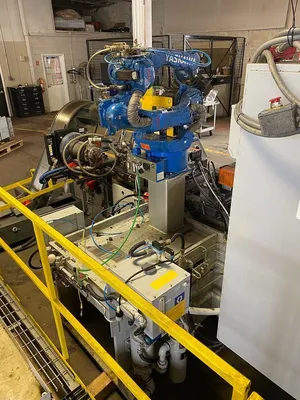

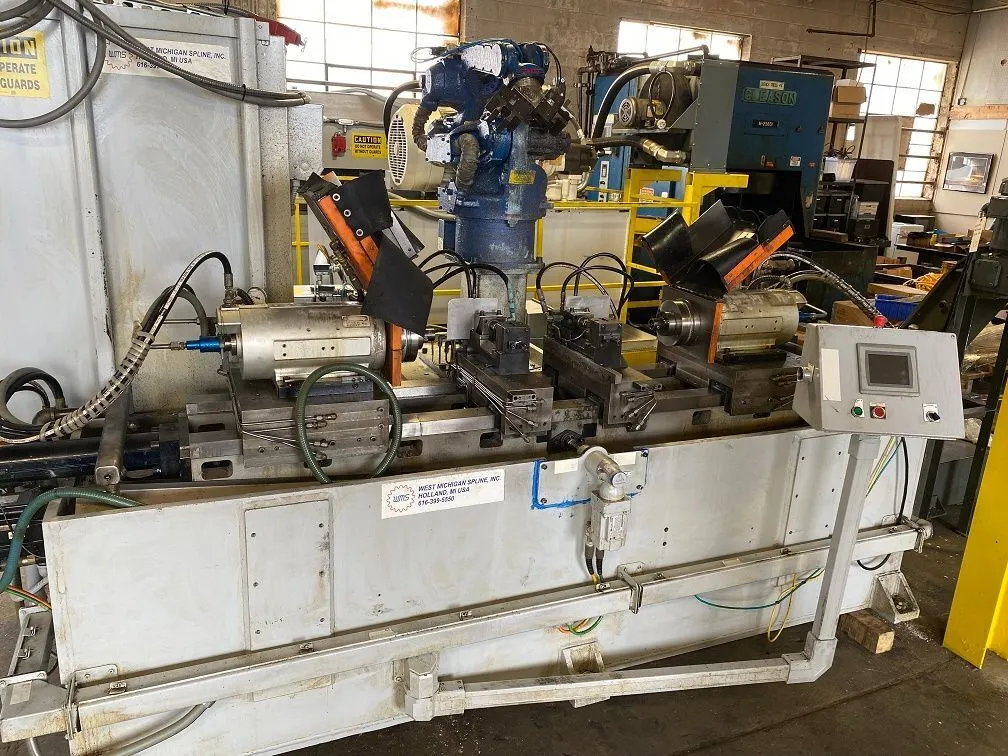

West Michigan Spline, Inc Model 32E Face & Centering Machine with Robotic Loader (2018)

West Michigan Spline, Inc Model 32E Face & Centering Machine with Robotic Loader (2018)

Features and Specifications:
…Length Capacity (range): 6” – 32” (Can Be Increased To 42” Length By Relocating Drill/Mill Heads On The Second Bolt Pattern Located On The Slides)
…Diameter Capacity (range): 0.5” – 4.0”
…Cycle Time: 14 – 20 Seconds
…Spindle HP: 5 HP @ 3600 RPM

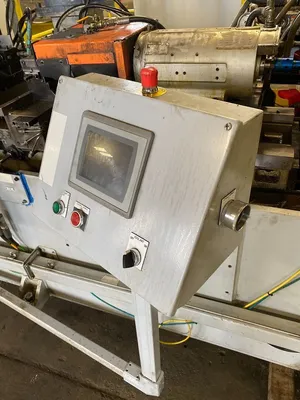

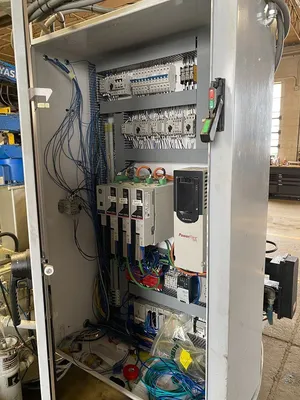

…PLC Based Servo Controls
…Auto Length Adjustment
…Hydraulic Power Unit: 5 Gallons
…Power, Main Motor: 5 HP / 1750 RPM
… Electrics: 230-460 Volt / 3 Phase / 60 Cycle / FLA: 12.4-6.18

Overall Machine Dimensions (approx.): 136” x 72” x 60” Tall
System Weights (approx.):

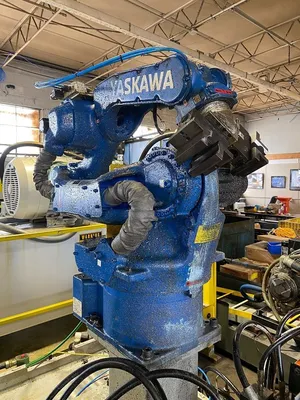

…Machine & Robot Weight: 18,515 lbs.
…Hydraulic Power Unit: 80 lbs.
…Chip Conveyor, Coolant Tank: 700 lbs.
… Unload Chutes: 1,850 lbs.
