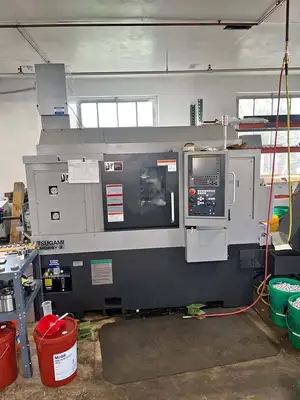

Tsugami M08SYII Live Tool Y Axis CNC Lathe with Sub Spindle (2022)
Have one to sell?
ConditionUsed
1 available
Live Tool, Y Axis, Sub Spindle, Barfeed, Low Hours
Tsugami M08SYII Live Tool Y Axis CNC Lathe with Sub Spindle (2023)
Specifications:
Max. Machining Diameter 280 mm (11.02")
Max. Machining Length 380 mm (14.96")
Distance Between Spindles 508mm (20.0")
Max. Chuck Size 8"
Max. Spindle Speed 200 to 4,500 Rpm
Sub-Spindle Speed 200 to 4,500 Rpm
Main Spindle JIS A2-6
Main Spindle Bore 2.87"
No. of Turret Stations 12
Main Live Tool Speed Up to 5,000 Rpm
Main Motor 7.5/11 Kw
Rapid Traverse Rate: X-Axis 24 Mm/min
Y-Axis 12 Mm/min
Z-Axis 30 Mm/min

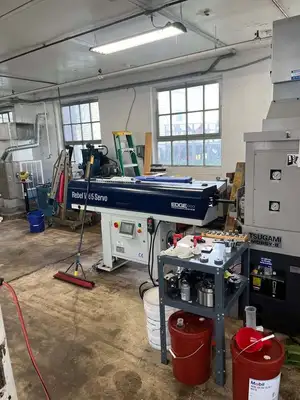

Live Tool, Y Axis, Sub Spindle, Barfeed
