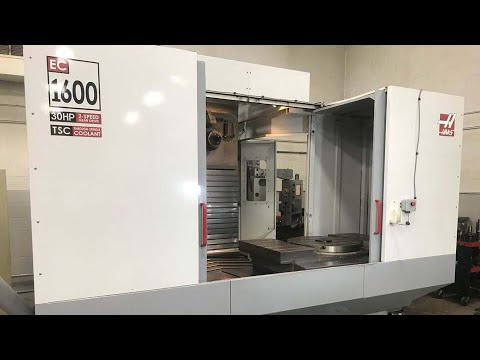

HAAS EC16004X Horizontal Machining Center (2004)
Have one to sell?
ConditionUsed
1 available

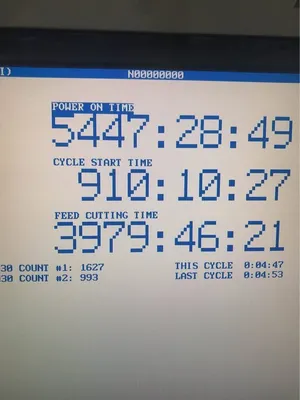

HAAS EC16004X Horizontal Machining Center (2004), Built in 4th Axis Rotary Table, 50 ATC, 30 HP, 6K RPM, Low Hours

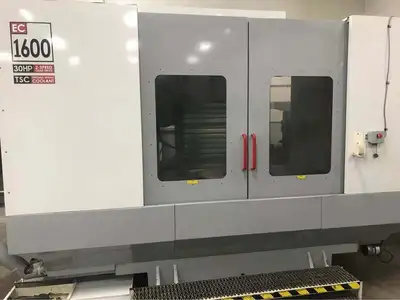

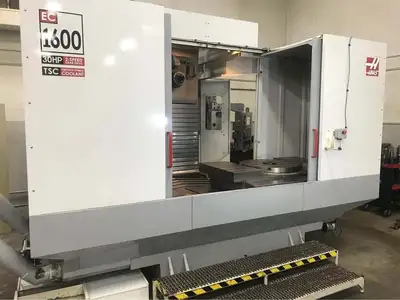

Haas EC-1600-4X Horizontal Machining Center (2004)
Working Surface of T-Slotted Table: 64 x 36
Maximum Work Load Capacity: 10,000 Lbs.
Travels - X-Axis: 64"
- Y-Axis: 40"
- Z-Axis: 32"
- B-Axis:
Distance Spindle C/L to Table Top: 11.9"
Feed Rate: 500/min
Rapid Traverse Rate: 600/ min
Spindle Speeds: 50-6000
Spindle Taper: 50
Spindle Motor: 30HP
Maximum Tool Size: 4 dia x 20 length
Maximum Tool Weight:
HAAS CNC Control
50-Position Automatic Tool Changer

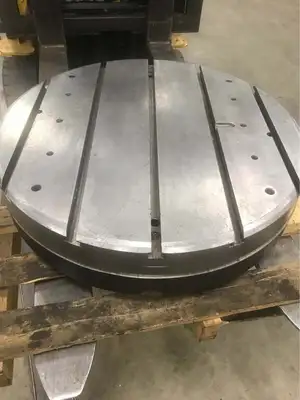

Built in Full 4th-Axis Rotary Table

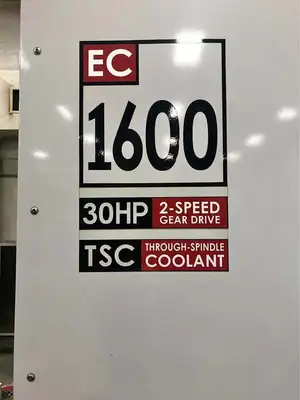

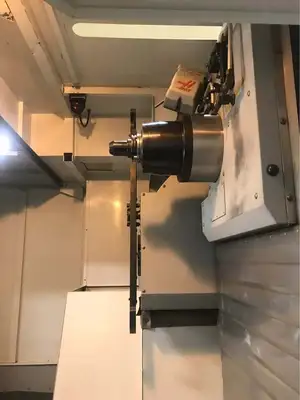

Geared Head

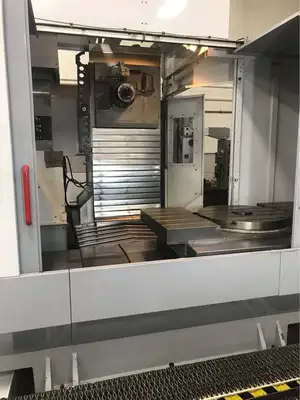

Machine Enclosure w/ Coolant System

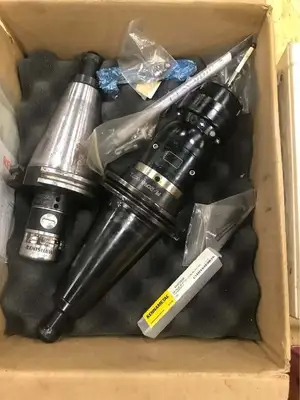

Visual Quick-Code Probing System
Programmable Coolant Nozzle
Tool Presetter
Coolant Thru Spindle
HAAS EC16004X Horizontal Machining Center (2004), Built in 4th Axis Rotary Table, 50 ATC, 30 HP, 6K RPM, Low Hours
Imperial
| size | 16" x 16" |
| X | 64" |
| Y | 40" |
| Z | 32" |
| Power | 30 hp |
| # ATC | 50 |
| Taper | 50 |
| Pallet-W | 36" |
| Pallet-L | 64" |
| # Axis | 4 |
Haas EC-1600-4X Horizontal Machining Center (2004)
Working Surface of T-Slotted Table: 64 x 36
Maximum Work Load Capacity: 10,000 Lbs.
Travels - X-Axis: 64"
- Y-Axis: 40"
- Z-Axis: 32"
- B-Axis:
Distance Spindle C/L to Table Top: 11.9"
Feed Rate: 500/min
Rapid Traverse Rate: 600/ min
Spindle Speeds: 50-6000
Spindle Taper: 50
Spindle Motor: 30HP
Maximum Tool Size: 4 dia x 20 length
Maximum Tool Weight:
HAAS CNC Control
50-Position Automatic Tool Changer
Built in Full 4th-Axis Rotary Table
Geared Head
Machine Enclosure w/ Coolant System
Visual Quick-Code Probing System
Programmable Coolant Nozzle
Tool Presetter
Coolant Thru Spindle
