| X | 20.08" | 510.03 mm |
| Y | 35.83" | 910.08 mm |
| Z | 20.08" | 510.03 mm |
| # Axis | 5 | 5 |
| Power | 47 hp | 35 kW |
| RPM | 18,000 RPM | 18,000 RPM |
| # ATC | 80 | 80 |
| Taper | HSK A63 | HSK A63 |

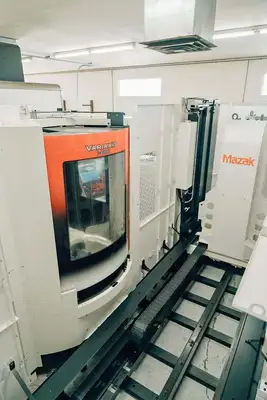

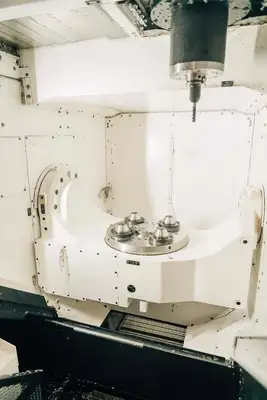

18,000 rpm HSK-A63 Spindle, 47HP

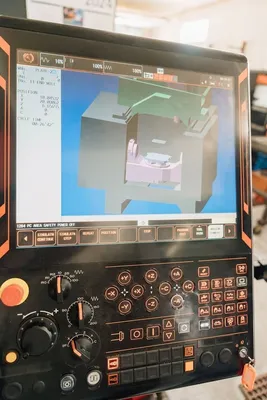

Smooth Ai Control
19" Screen
High Speed Machining Software
Smoothing Software
SMC Plus Settings
EIA/ISO Function, Simultaneous 5-axis
Tool Tip Point Control/Simultaneous 5-axis
5-axis Spline Interpolation
Fine Spline Interpolation

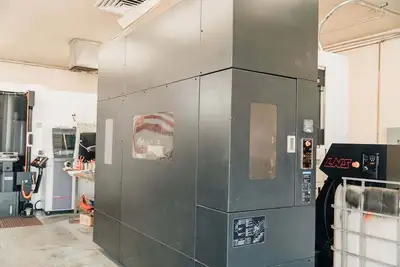

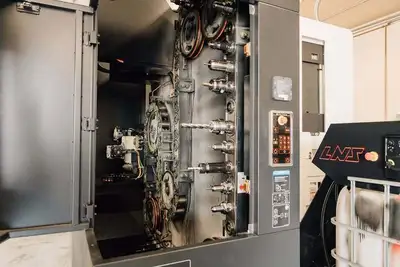

80 Tool Magazine, HSK A63

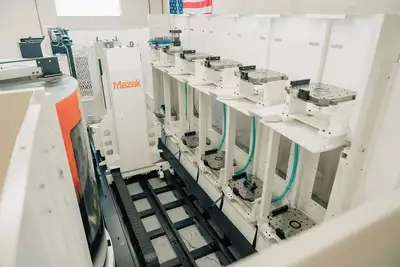

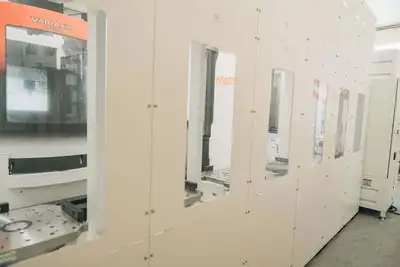

Auto Pallet Changing
1000psi Spindle Through Coolant (T8)
LNS Turbo SF Compact Rear Exit Chip Conveyor w/43" discharge Height
AI Thermal Shield
Cooled Ball Screws
Spindle Chiller
Auto Power On/off + Warmup
Mazak's Hybrid Roller Guide Ways
RMP600 Radio Part Probe
GIS Supplied TS27R Probe Kit for tool setting & tool wear.
Workpiece Air Blast
Smooth Link
Smooth Set & Inspect
Mist Collector

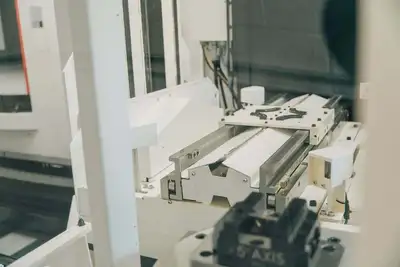

Work Holding (3 jaw chuck, 2x 5th axis vises, & 3 kurt vises)
Tooling (35 HSK tool holders with drills & end mills)
