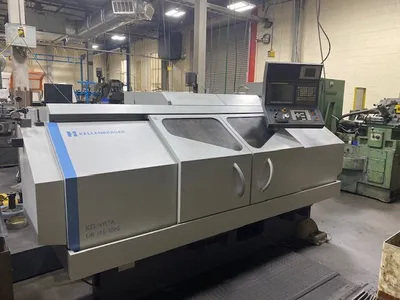

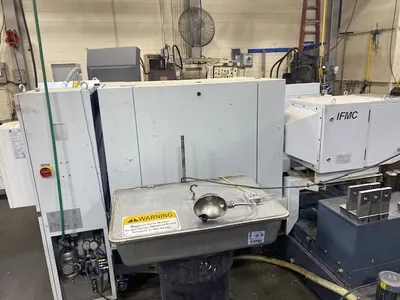

Kellenberger Kel-Vista UR 175/1000 ID OD CNC Universal Cylindrical Grinder (2015)

Kellenberger Kel-Vista UR 175/1000 ID OD CNC Universal Cylindrical Grinder (2015)

Distance between centers......................... 39.37”

Height of centers................................ 6.89”

Max swing over table............................. 9.80”

TABLE (Z-Axis)

Max travel....................................... 43.90”

Feed rates..................................... . 000010 - .009990

Table feed....................................... .1 – 394

Jogging feeds.................................... .000100

Rapid traverse................................... 394”min

Dwell of reversal................................ 0-99

Max swivel....................................... 9 degrees

WHEELSLIDE (X-Axis)

Max travel....................................... 10.62”

Cont. infeed rates.............................. .000010 - .009990

Incremental infeed per table reversal........... .000010 - .009990

Discontinuous infeed per step................... .000100

Rapid traverse.................................. 394” min

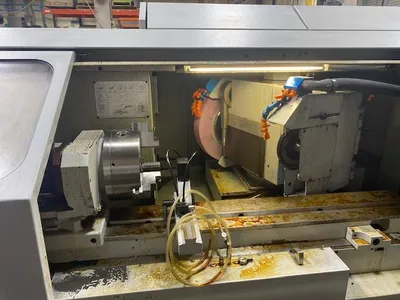

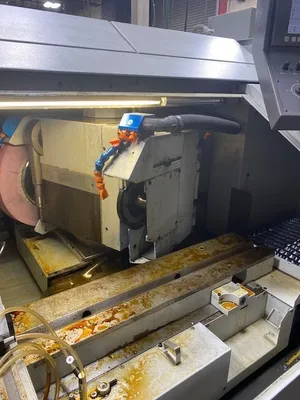

WHEELHEAD

GW for cylindrical grinding..................... 16” x 2.5” x 5”

GW for right hand spindle end................... 9” x 0.75” x 3”

Power of motor.................................. 4,4 kw

Spindle speed................................... 1750 rpm

Grinding wheelhead swivels...................... 270 degrees

With indexed stop every...................... 90 degrees

Internal grinding spindle carrier dia........... 70 (80)mm

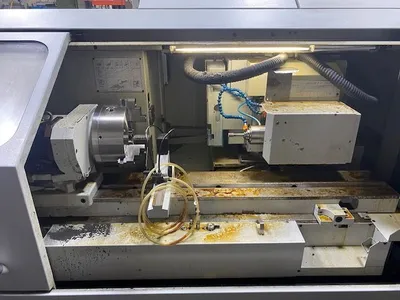

WORKHEAD

Swivel......................................... 360 degrees

Spindle speeds (programmable).................. 5 – 500 rpm

Internal taper of spindle...................... #5 morse

Adapter........................................ #4/5 morse

Power of motor................................. 2,4 kw

TAILSTOCK

Internal taper of quill........................ #4 morse

Quill retraction............................... 1.18”

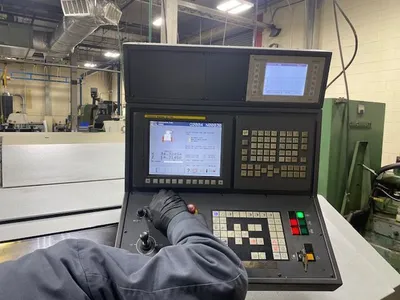

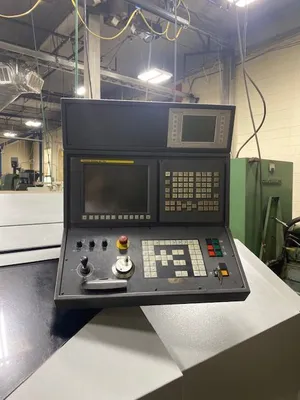

ELECTRONIC CONTROL UNIT

-Axis continuous path control

Program storage capacity....................... 8 kilobytes

Resolution, X-Axis............................. 0,5

Resolution, Z-Axis............................. 0,5

Input sensitivity, X-Axis...................... .000010”

Input sensitivity, Z-Axis...................... .000010”

Overrides for X, Z, & workhead spindle......... 0-200%
