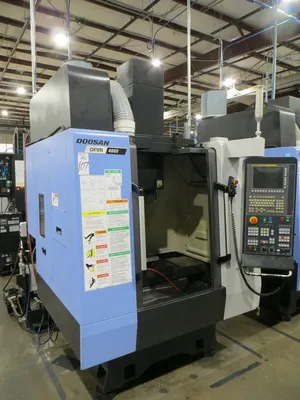

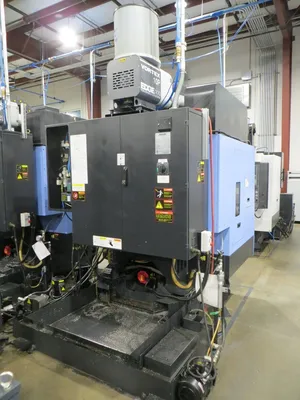

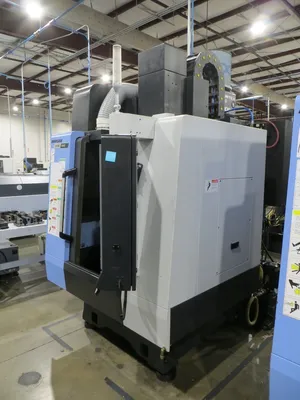

Doosan DNM4000 Vertical Machining Center (2019)
Have one to sell?
ConditionUsed
1 available
Low Hours, 12k Spindle, The DNM Series delivers the most value for your investment as the best-in-class vertical machining center fully equipped with the most standard features built-in. This powerfully productive machine features a BIGPLUS spindle, dual chip augers, FANUC i series controls with DN Solutions (formerly Doosan Machine Tools) Easy Operation Package (EOP), through-spindle coolant, spindle chiller, and more. Get the machine that will give you the power to MAKE MORE.
Doosan DNM4000 4 Axis Vertical Machining Center (2019)
Travels -
Travel Distance X-axis - 520 mm (20.5 in)
Travel Distance Y-axis - 400 mm (15.7 in)
Travel Distance Z-axis - 480 mm (18.9 in)
Rapid Traverse X-axis - 48 m/min (1889 in/min)
Rapid Traverse Y-axis - 48 m/min (1889 in/min)
Rapid Traverse Z-axis - 48 m/min (1889 in/min)
Table Size - 650 x 400 mm (25.6 x 15.7 in)
Max Load - 400 kg (882 lbs)
Spindle to Table Distance - 150 - 630 mm (5.9 - 24.8 in)
Spindle Speed - 12000 rpm
Power - 18.5 kW (25 Hp)
Torque - 118 Nm (87 ft-lbs)
Tooling - CAT40
Changer Capacity - 20
Max Diameter - 90/125 mm (3.5/4.9 in)
Max Length - 270 mm (10.6 in)
Machine Size & Weight -
Length - 2,858 mm (112.5 in)
Width - 1,650 mm (65 in)
Height - 2,753 mm (108.4 in)
Weight - 3,300 kg (7,275 lbs.)

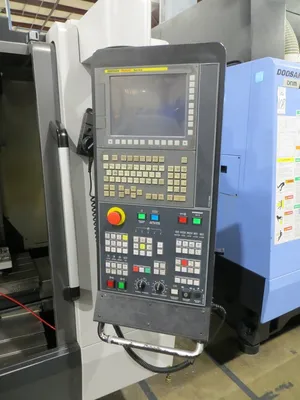

Doosan-Fanuc i Series HMI and CNC Controls

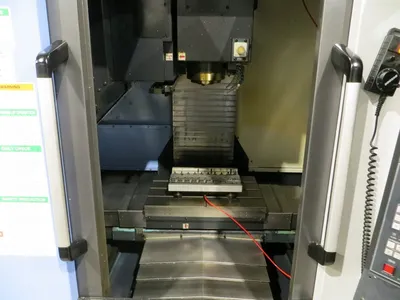

25-5/8"x15-7/8" T-Slotted Table with Pierson Workholding Pro 10"x16" Pallet System
Renishaw OMI-2T Probing

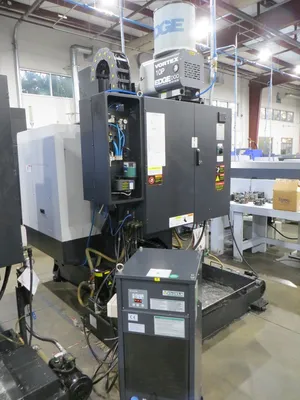

Edge Technologies Vortex 10P Oil Mist Collector
LHL P-107 Auto Lubricator
Kaukan KO-4PTS-UC Oil Chiller
Coolant Filtration System with KEM Oil Skimmer
220V 50/60Hz 3PH
