Doosan DNM400 4 Axis Vertical Machining Center (2012)
Have one to sell?
ConditionUsed
1 available
4 Axis

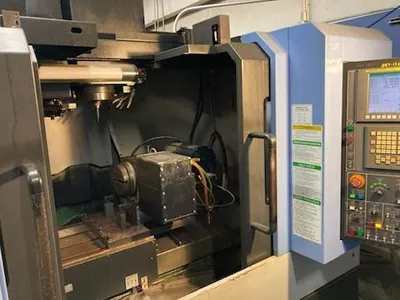

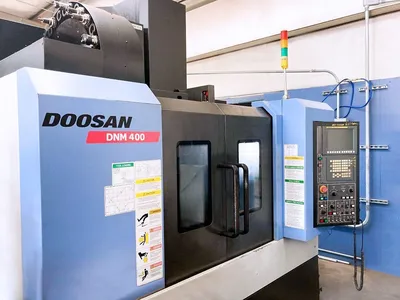

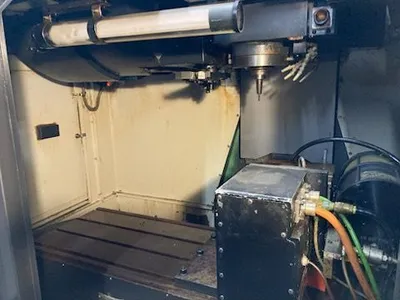

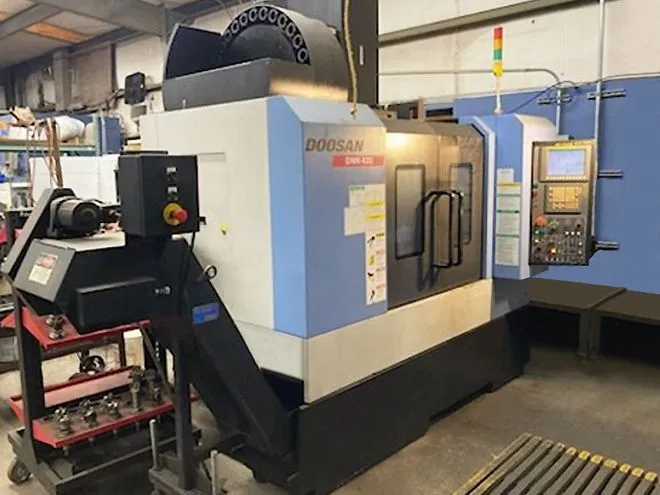

Doosan DNM 400 CNC Vertical Machining Center
New: 2012
Specifications:
X Axis Travel: 30.2"
Y Axis Travel: 17.1"
Z Axis Travel: 20.1"
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Rapid Rate X Axis: 590 IPM
Rapid Rate Y Axis: 590 IPM
Rapid Rate Z Axis: 590 IPM
Max Table Load: 1,320 LBS
Spindle Nose to Table: 5.91" – 24.25"
Max Tool Weight: 17.6 LBS
Max Tool Length: 11.8"
Max Tool Dia.: 5.9"
Tool Change Time: 1.5 SEC
Air Required: 90 psi, 4 SCFM
Power: 205-220v / 50kva / 3-Phase

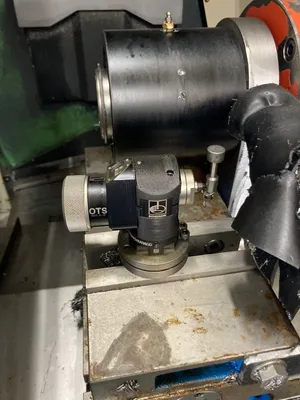

Probe
Chip Conveyor
Coolant Thru Spindle

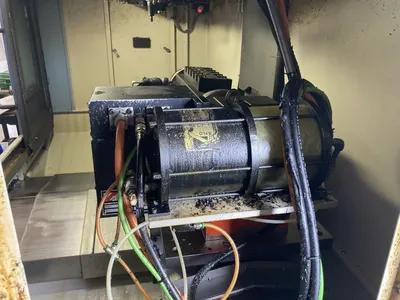

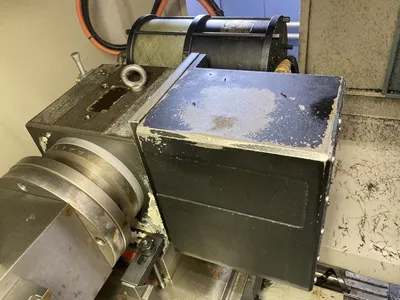

4th Axis Rotary Table
Two Chip Augers that feed conveyor
