| size | 8" Chuck | 8" Chuck |
| Swing | 31.75" | 806.45 mm |
| Machining Length | 20.5" | 520.7 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | Yes | Yes |

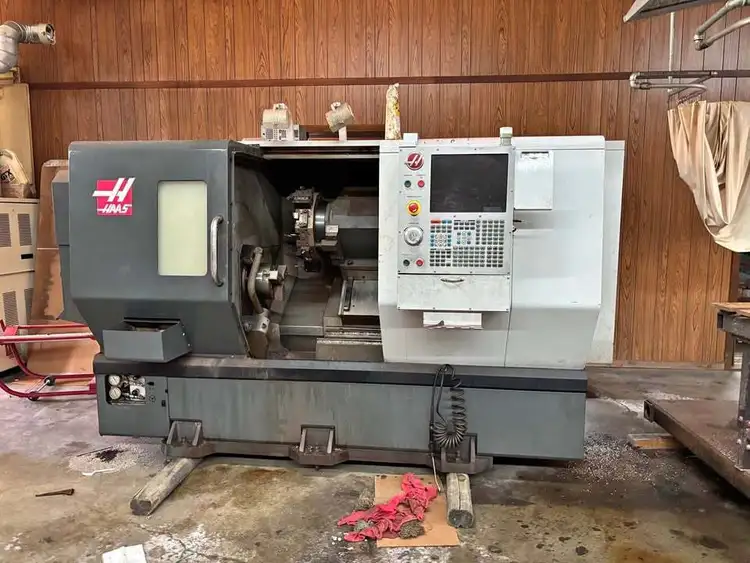

Haas Model ST-20 2-Axis CNC Lathe
Swing Over Bed: 20"
Max Cutting Diameter: 10.3
Max Cutting Length: 20"
Bar Capacity: 2"
Turret: 12 Station BOT/VDI
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Spindle Nose : A2-6
Rapid Traverse Rates: 710 IPM
Tool Presetter
Chip Conveyor
Parts Catcher
8" Chuck
