| Swing | 17.7" | 449.58 mm |
| Machining Length | 20.4" | 518.16 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |

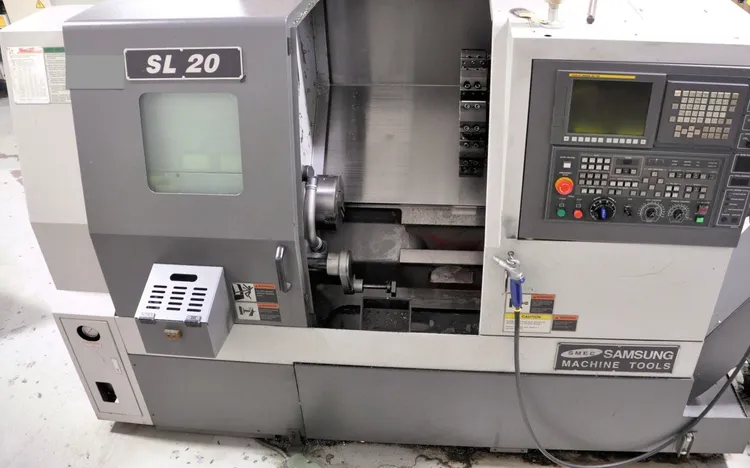

Samsung SL-20 CNC Lathe (2013)
Bar Capacity: 2.6"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 25 HP
X Axis Travel: 7.09"
Z Axis Travel: 22.05"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 11.8"
Max Turning Length: 20.47"
Max Swing: 17.72"
Weight: 8,600 LBS
Fanuc 0i-TD
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
