Brother Speedio R450X2 CNC Drill Tap Center (2021)
Have one to sell?
ConditionUsed
1 available

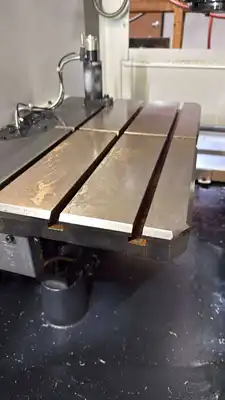

Table Size: 23.6” x 11.8”
Maximum Weight on Table: 265 LBS
X Axis Travel: 17.7”
Y Axis Travel: 12.6″
Z Axis Travel: 12″
Spindle Nose to Table: 7.9” – 19.9”
Automatic Tool Changer: 22 Stations
Spindle Taper: BT30 Taper
Spindle Speed: 16,000 RPM
Spindle Motor: 6.5 HP
Change Time: (Tool to Tool / Chip to Chip) .8 sec / 1.6 sec
Feedrate Traverse (X,Y,Z): 1969 IPM
Cutting Feedrate: 1181 IPM
Brother CNC-C00 Control with Built-IN PLC
16,000 RPM CTSI Spindle (CTS Interface - No Pump)
9.8/6.5 HP Main Spindle Motor - IPM Motor Type
BT-30 Taper, 22 Tool High-Speed ATC
Coolant Through Spindle 1000 PSI
Spindle Taper Air Blast and Back Washing System
Automatic Grease Lubrication System
Chip Shower System
150L Coolant Tank
Complete Covers with Ceiling Cover and Safety Door Interlock System
