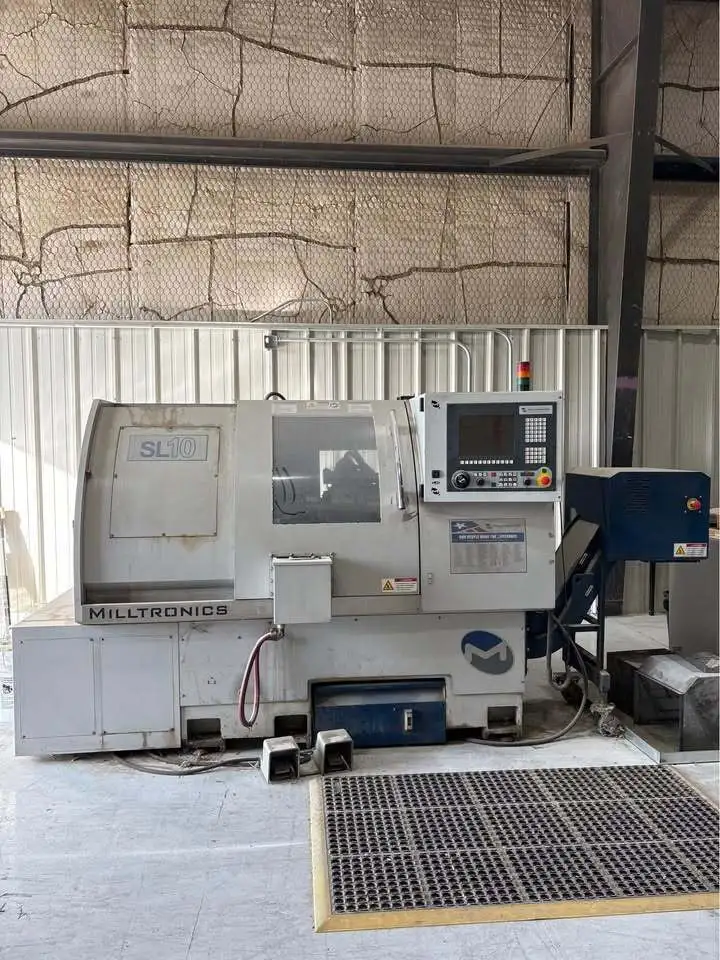

Milltronics SL10 CNC Lathe (2012)

Milltronics SL10 2 Axis CNC Lathe (2012)

X/Z Travels
9.8/31.1 in

Swing Over Bed
22.9 in

Swing Over Cross
15.8 in

Max. Turning Diameter
17.7 in

Max. Turning Length
29.9 in

SPINDLE

Spindle Nose
A2-8

Draw Tube Diameter
3.18 in

Spindle Range
0-3000 RPM

AC Spindle Motor
29.5/20 HP

Spindle Torque
260 ft-lbs

Tailstock Quill Travel
4.7 in

Tailstock Quill Diameter
3.54 in

Tailstock Quill Taper
MT5

Automatic Turret

Tool Capacity
12

Tooling Size
1 in

Boring Bar Capacity
1.5 in

Tool Selection
Bi-Directional

MOTION

Rapid Traverse Rate
1183 IPM

Positioning Accuracy
(+/- 0.0002 in)

Repeatability
0.0002 in

Axis Thrust Force
3125 lb-ft Peak X, 3125 lb-ft Peak Z

General Details

Machine Weight
10670 lbs

Machine Height
88.5 in

Footprint
166 x 94.8 in Nominal Operating (W x D)

Power Required
24 KVA / 59 Amps

Voltage Required
208-240 Volts / 3 Phase
