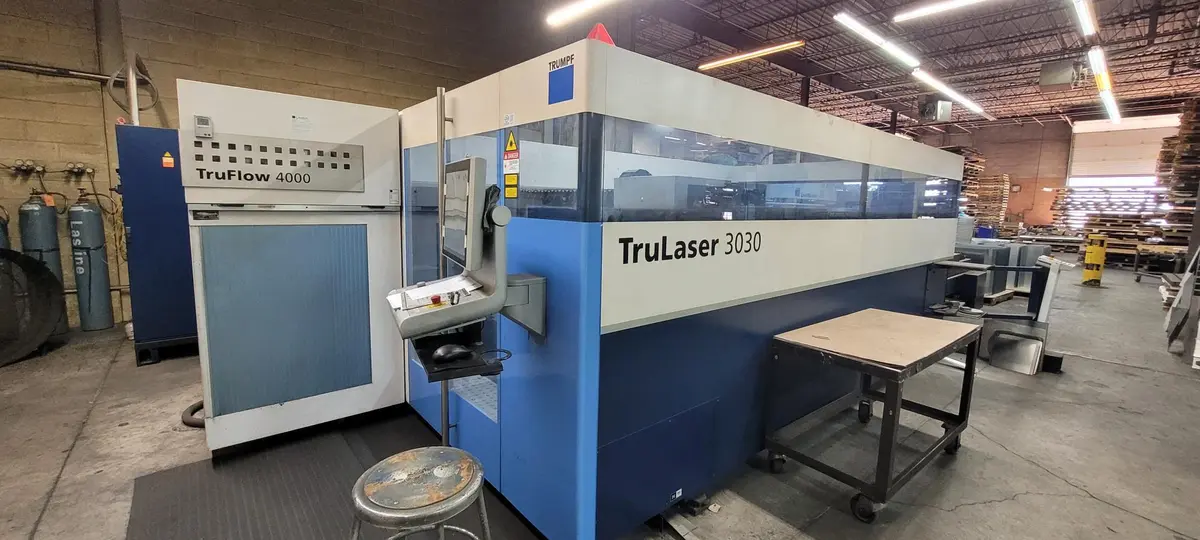

Trumpf TruLaser 3030 L20 CO2 4KW Laser Cutting Machine with Loadmaster (2013)

Trumpf Model TruLaser 3030 L20 4KW Laser Cutting Machine with Loadmaster

Laser Source
Type: CO₂ laser (TruFlow 4000)
Power: 4,000 watts (4 kW)
Working Area
X-axis: 3,000 mm (118 in)
Y-axis: 1,500 mm (59 in)
Z-axis: 115 mm (4.5 in)
Maximum Material Thickness
Mild Steel: up to 20 mm (0.79 in)
Stainless Steel: up to 15 mm (0.59 in)
Aluminum: up to 10 mm (0.39 in)
Copper: up to 8 mm (0.31 in) — may vary by assist gas
Brass: up to 8 mm (0.31 in) — may vary by assist gas
Maximum Workpiece Weight
Per Pallet: 900 kg (1984 lbs)
Speed
Max simultaneous axis speed (X + Y): 140 m/min (4,600 in/min)
Max single axis speed: 85 m/min (3,346 in/min)
Accuracy
Positioning Accuracy: ±0.1 mm/m
Repeat Accuracy: ±0.03 mm
Additional Features
Automatic pallet changer (usually standard on L20)
Touch panel numerical control (varies by year)
Programmable gas selection (O₂, N₂, Air)
Support for cutting a wide variety of ferrous and non-ferrous materials
Optional automation (e.g., loading/unloading, sorting)
Machine Dimensions (Approximate)
Length: ~9,000 mm (354 in)
Width: ~5,000 mm (197 in)
Height: ~2,200 mm (87 in)
At a Glance Table
Feature Specification
Laser Power 4 kW (CO₂)
X/Y Travel 3,000 mm x 1,500 mm
Max Steel 20 mm
Max Stainless 15 mm
Max Aluminum 10 mm
Rapid Traverse 140 m/min (simultaneous)
Pallet Weight 900 kg
Accuracy ±0.1 mm/m
Machine on - 35,700 hrs
Beam on - 16,100 hrs
Resonator life - ~ 30,000 hrs
