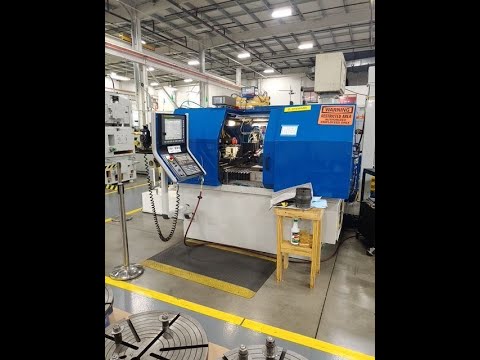

Bryant RU-2 CNC ID OD Grinder (2023)
Have one to sell?
ConditionUsed
1 available
Low Hours, New in (2023) Flexible and compact: ID/OD grinding with the Bryant RU2
With floorspace at a premium, you need a compact machine that can give you more bang for your buck. Built for ID/OD grinding, the Bryant RU2 is capable of carrying up to four spindles per machine for the ultimate in flexible, precision grinding, of complex components.
Bryant RU-2 CNC ID OD Grinder (2023)
Grinding capacity
Max. swing diameter
9.8"
Max. workpiece length
7"
Max. internal grinding diameter
9"
Max. internal grinding depth
3.5"
SPINDLES & WORKHEAD
Max. number of spindles
4
Max. ID spindle speed
120,000 rpm
Max. workhead speed
3,000 rpm
AXES & CONTROL
Axis travel X
20"
Axis travel Z
0.08" x 10"
Axis travel speed (X & Z)
79 ft/min
Axis arrangement
Independent
Control
Fanuc i series
Dimensions
Machine dimensions (W x D x H)
8' x 5' x 7'
Machine weight
13,889 lb
Fanuc I Series CNC
In-Process Gage System For Bore Diameter Inspection, Mounting, Controller
Sbs Acoustic Emission Sensing For Dress
Sensor For Part Present On Inlet, Outlet And Work Head
Dryer For Part Blowoff
Poka-Yoke System For Part Load
3-Position Switch For Auto/Dressing/Manual
Work Driver Tooling – Chuck
Pole Extenders
Shoe Bodies; With One (1) Set Of Shoe Pads
Shoe Centerless Fixture; With Mounting For Arms To Hold Shoes
Cbn Rotary Diamond Dressing Tool
Dresser Mount For Orientation (Vertical)
Cbn Grinding Wheel - Face
Cbn Grinding Wheel - Bore
Cbn Grinding Wheel - Od
Cbn Grinding Wheel Quill
CE Mark
