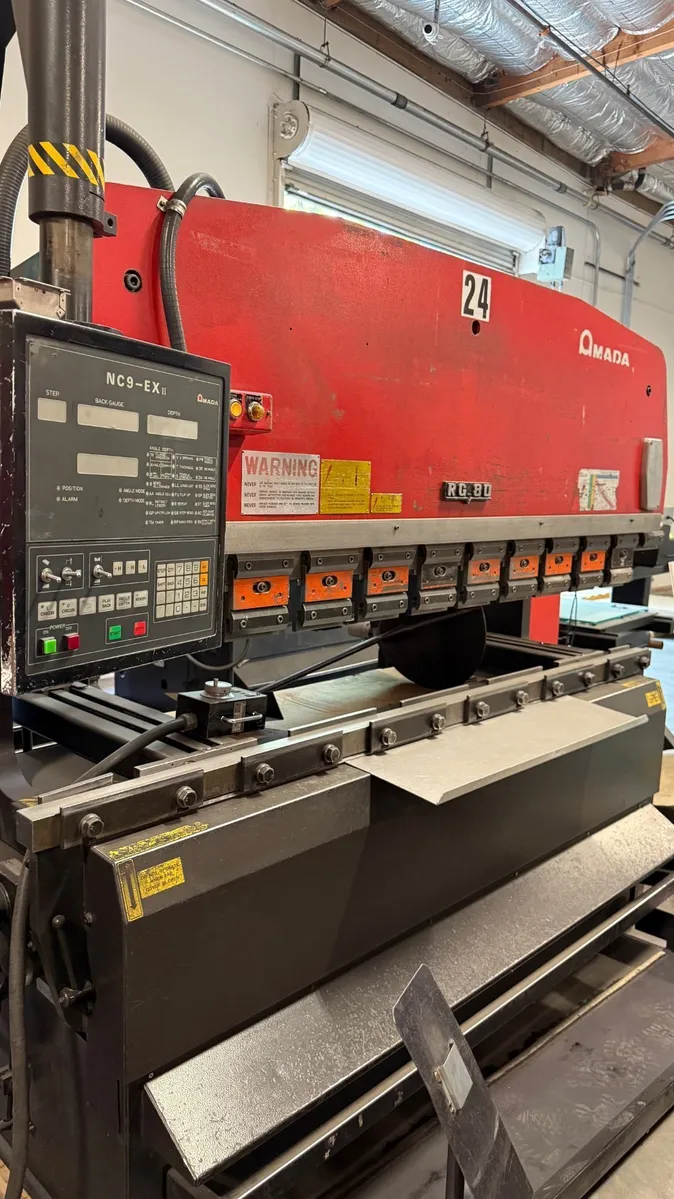

Amada RG-80 CNC Hydraulic Press Brake (1994)
Have one to sell?
ConditionUsed
1 available
Amada RG-80 CNC Hydraulic Press Brake (1994)
Nominal Rated Capacity - 80 Ton (88 Ton Metric)
Maximum Bending Length - 98.6"
Maximum Table Length - 94.5"
Distance Between Uprights - 80.7"
Throat Depth - 15.75"
Length of Stroke - 3.94"
Open Height - 14.57"
Ram Repeatability: +/- .0004"
Back Gauge Travel - 19.6"
Speeds: Approach 106 Ipm
Bend: 2 - 19 Ipm
Return - 122 Ipm
Main Drive Motor - 7.5 Hp
NC9- EXII Control
Manual Pulse Generator
Misc. Upper & Lower Die Clamps
