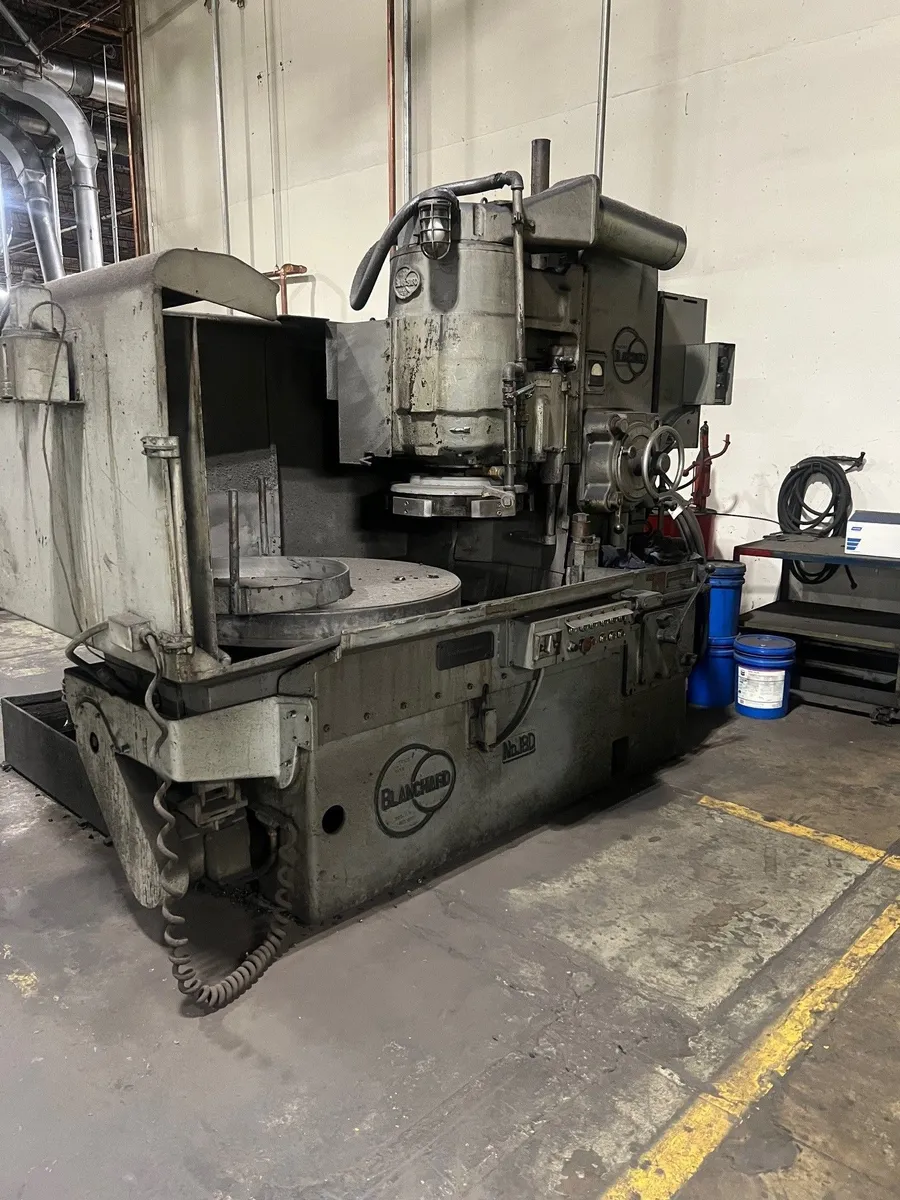

Blanchard Model 18D-42 Vertical Spindle Rotary Surface Grinder

Blanchard Model 18 42" Rotary Surface Grinder
Chuck Diameter 42"
Swing Inside Guards 48"
Height Under New Wheel 12"
Chuck Life Remaining (Approx.): 1/4"
Max. Weight Of Work Load On Chuck 2,000 Lbs
Grinding Wheel Diameter 22"
Wheel Speed 720 Rpm
Chuck Speeds (6) 6 To 33 Rpm
Inf. Variable Power Downfeed 0.004" To .080" Ipm
Approx. Dimensions 111"L X 61"W X 94"H
Approx. Weight 13,000 Lbs
Grinding Wheel Size (Solid): 18" x 5" x 15"
Chuck Speeds: (6) 6, 9, 12, 18, 25, 33 RPM
Automatic Downfeed of Grinding Head:.004" - .080" / Rev.
Main Motor Drive: 25 HP 3/60
Head Elevation: 2 HP 3/60
Table Drive: 2 HP 3/60
