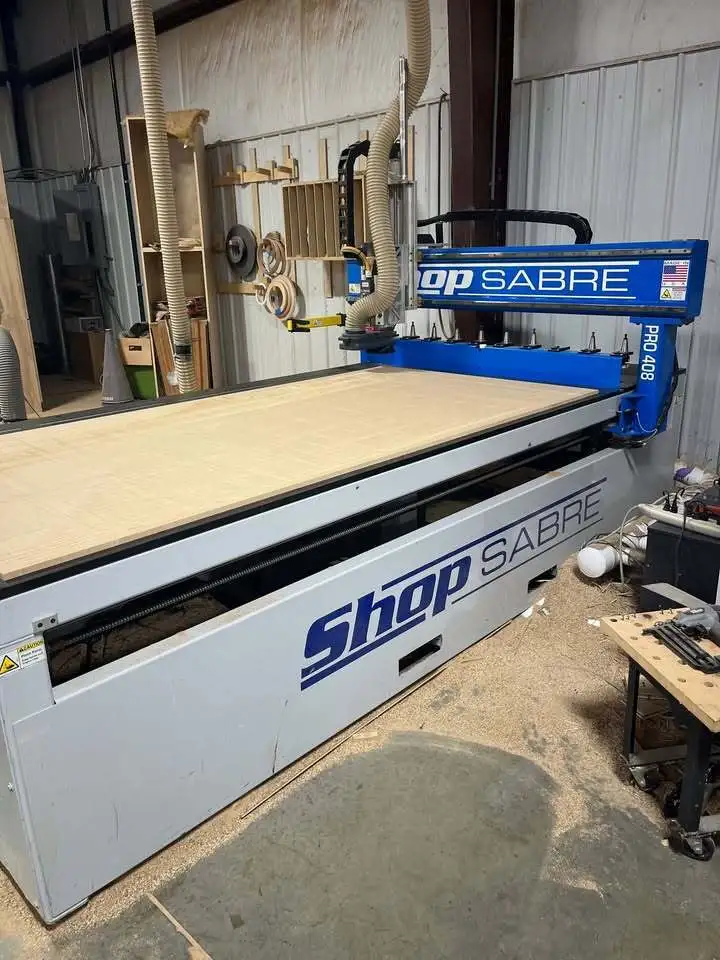

Shopsabre Pro408 CNC Router (2018)
Have one to sell?
ConditionUsed
1 available
Full ball screw on every axis, A/C digital servo motors, Single phase F4 vacuum system (4 zone), Wireless handheld controller, Shop Sabre computer system, 3KW 4HP HSD 18,000 MAX RPM Spindle with VFD, 5’x8’ working area
• Table Bed Cut Area: 60" x 100"'
• Gantry Clearance: 12"
• Maximum Travel Speeds on X & Y: 1200IPM with Servo Motors
• Maximum Travel Speeds on Z: 8001PM with Servo Motors
• Z. Travel: 16"
• Machine Weight: 3200 Ibs
• Machine Foot Print (Including Gantry): 80'' × 135"
• Machine Structure: Steel Tube Frame- Welded
• Gantry Structure: Over-Sized Steel Tube Birdge with Tube Steel Uprights
• Drive System: Dual Y Axis Anti-Backlash Harden Steel Ball Screw by THK/HiWin
• Bearing System: 25MM Linear Guide Rails and Bearings with Quad Roller Sets and Triple Seal by THK/HiWin
• Controller: ShopSabre WINCNC Advanced Controller
• PC System: Included with SSD Hard Drive and PCI Controller Board Installed
• Nerworkable: Yes
• PC to PC Connectivity for Diagnosis
• Software: Vectric
• Tech Support: Included - Life-time
• Controller Software Updates: Included
• Fully Assembled • Pre-Tested • Life-Time Tech Support (Phone/Email/PC2PC)
