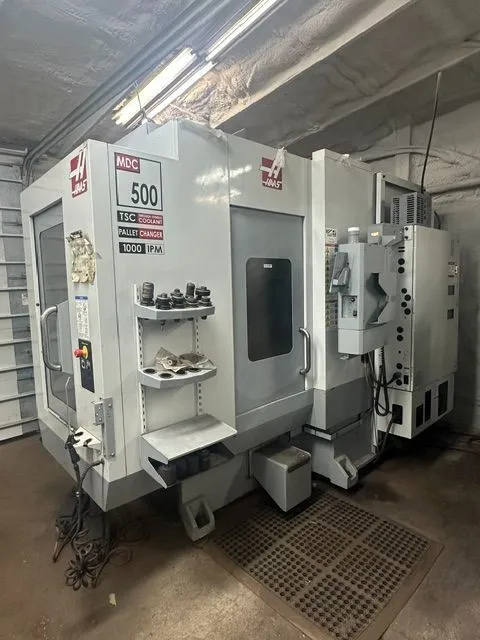

Haas MDC-500 CNC Milling Drilling Vertical Machining Center (2007)
Have one to sell?
ConditionUsed
1 available
Haas Model MDC-500 CNC Mill Drill Tap Vertical Machining Center, (2007); with Haas CNC Controls, 24-Position Automatic Tool Changer, 20 in. x 12.75 in. Table/Pallet Size, Pallet Changer, 3-Axis, 20 in. X-Axis Travel, 14 in. Y-Axis Travel, 20 in. Z-Axis Travel, Gear Range to 7,500 RPM, 12 in Max. Tool Length, 6 in. Max. Tool Dia., 12 lbs. Max. Tool Weight, 1,000 IPM X & Y-Rapid Traverse, 1,000 IPM Z-Rapid Traverse, 2.2/4.8 sec. Chip-to-Chip Tool Change, Rigid Tapping, High Pressure Coolant, TSC Through-Coolant Spindle, Chip Auger, Coolant and Filtration System, 20-HP Spindle Motor, Transformer
Haas Model MDC-500 CNC Milling Drilling Vertical Machining Center (2007)
Table Size: 20" X 12.75"
X-Axis Travel: 20"
Y-Axis Travel: 14"
Z-Axis Travel: 20"
Table Load Capacity: 700 Lbs.
Spindle Speed Range: 10,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 20 HP / 15 HP
Tool Capacity: 24 ATC
Approximate Dimentsions: 130" X 134" X 113"
Approximate Machine Weight: 16,000 LBS
Haas CNC Control
24-Station Automatic Tool Changer
Rotary Pallet Changer
(2) 20" X 12.75" Pallets
20 HP / 15 HP Vector Drive Motor
