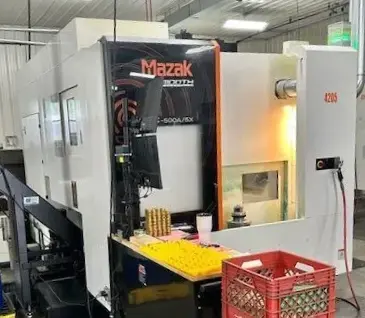

Mazak VC-500A/5X 2 PC Dual 5 Axis Vertical Machining Center (2018)
Have one to sell?
ConditionUsed
1 available
Low Hour 5 Axis MAZAK VC 500A/5X CNC Machining Center, Model: VC 500A/5X Twin Pallet 60 ATC, 2018. Compact and efficient, ideal for complex machining tasks. Contact for more details on this well-maintained, pre-owned equipment.
Mazak VC-500A/5X 2 PC Dual 5 Axis Vertical Machining Center (2018)
Number Of Tables / Pallets 2
Weight On Table 440 lb
Main Spindle Horse Power 15 hp
Spindle Nose To Table 4.5"
Main Spindle Speeds 20,000 RPM
Main Spindle Taper 40
X - Axis Travel 21.85"
Y - Axis Travel 19.88"
Z - Axis Travel 20.07"
B - Axis Travel + - 110 DEGREES
C - Axis Travel Table Indexing 360
Rapid Traverse Rate - X 1,181 in/min.
Rapid Traverse Rate - Y 1,181 in/min.
Rapid Traverse Rate - Z 1,181 in/min.
Automatic Tool Changer 60
Tool Diameter 4.92"
Tool Length 10.23"
Tool Weight 17 lb
Machine Weight 14,330 lb
Control CNC (MAZATROL SDMOOTH X CNC COLOR CONTROL)
Weight 0.00
Mazak Mazatrol Smooth X Control
8mb Of Memory
Factory Auto 2 Pallet Changer (Machine Built With Hsk Pallet Work Holding System Configuration)
Auto Pecking Cycle
Smooth Set And Inspect
5-Axis Machining Package For Smooth X
60 Auto Tool Changer
Synchronized Tapping
G00 Slope Constant
Chip Conveyor
Eia/Iso
High Smoothing Control
Spiral Eia 3d Compensation
Rotation, Geometric, Scaling
Ext Data I/O
High Speed
Shape Comp, Thread, Inverse Time, Dynamic Comp.
3-D Co-Or Rot.
Polar Coordinate Input
Comparison Stop, Auto Atlm
Spline, G54.1, Sync Mill Tap, Rot-Axis Shape Comp, G00 Slope Const.
Variable 600 Sets, Cylinder & Polar Cor Int.
Simultaneous 5 Axis, 5 Axis Tool Comp. Auto Pecking, 5 Axis Spline
Eia Helical Tap And Pattern Cycles
Tilted Workplane, Nurbs Interpolation, 2nd Aux. Functions
Work Position Error Comp., Tool Center Point Control, Program Memory Expansion
213 Psi Coolant Thru The Spindle
Hand Held Mpg
Advanced Ethernet / Ip
Dual Probing Kit Rmp 600, Rts-Aa W/Eia Inspection Plus Software
Seamless Corner Control
Variable Acc Control
Super High Speed
Automatic Operation Iss
Machine Installed New 3/2020
19.69" Sub Plate Can Be Mounted To This Set Up On Both Pallets
