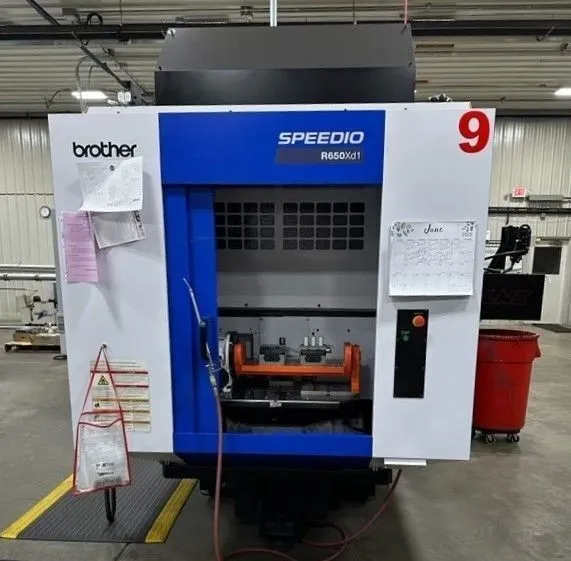

Brother Speedio R650Xd1 5 Axis Vertical Machining Center (2022)
Travels X axis [mm (inch)] 650 (25.6)
Y axis [mm (inch)] 400 (15.7)
Z axis [mm (inch)] 305 (12.0)
Distance between table top and spindle nose end [mm (inch)] [350-655 (13.8-25.8) *8]
Table Work area size [mm (inch)] One face 600 x 300
(23.6 x 11.8) One face 800 x 400 (31.5 x 15.7)
Max.loading capacity
(uniform load)
[kg (lbs)] One face 120 (265)
[200 (441) *6] One face 200 (441)
[300 (661) *6]
Position time [sec.] 3.1 *11
Spindle Spindle speed [min-1] 10,000min-1 specifications : 1 - 10,000
16,000min-1 specifications(Optional) : 1 - 16,000
10,000min-1 high-torque specifications(Optional) : 1 - 10,000
Speed during tapping [min-1] MAX. 6,000
Tapered hole 7/24 tapered No.30
BT dual contact system
(BIG-PLUS) Optional
Coolant Through Spindle (CTS) Optional
Feed rate Rapid traverse rate (XYZ-area)
[m/min (inch/min)] 50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate
[mm/min (inch/min)] X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9
ATC unit Tool shank type MAS-BT30
Pull stud type *4 MAS-P30T-2
Tool storage capacity [pcs.] 14/22/28
Max.tool length [mm (inch)] 200 (7.9)
Max.tool diameter [mm (inch)] 80 (3.1)
No adjacent tool
Max.tool weight [kg (lbs)] *1 3.0 (6.6)
3.0 (6.6)
4.0 (8.8)
Tool selection method Random short cut method Random short cut method Double arm method
(random closet path)
Tool change time *5 Tool To Tool [sec.] 0.6 / 0.7
(14-tool / 22 or 28 tool) 0.6 / 0.8
(14-tool / 22 or 28 tool) 0.9
Chip To Chip [sec.] 1.3 / 1.5
(14-tool / 22 or 28 tool) 1.4 / 1.5
(14-tool / 22 or 28 tool) 2.5
Electric motor Main spindle motor
(10 min/continuous)[kW] *2 10,000min-1 specifications : 10.1/7.0
16,000min-1 specifications(Optional) : 7.4/5.1
10,000min-1 high-torque specifications(Optional) : 12.8/9.2
Axis feed motor [kW] X, Y axis : 1.0 , Z axis : 1.8
Power source Power supply AC 200 to 230 V±10%, 3-phase, 50/60Hz±2%
Power capacity (continuous) [kVA] 10,000min-1 specifications : 9.5
16,000min-1 specifications(Optional) : 9.5
10,000min-1 high-torque specifications(Optional) : 10.4
Air supply Regular air pressure [MPa] 0.4 - 0.6 (recommended value: 0.5MPa *10)
Required flow [L/min] 45 45 100
Machine dimensions Height [mm (inch)] 2,704 (106.5)
Required floor space *13
[with control unit door open] [mm (inch)]
(72.0 x 119.3 [152.3] ) 2,145 x 3,029 [3,868]
Weight (including control unit, machine cover) [kg (lbs)] 3,550 (7,826)
Accuracy*3 Accuracy of bidirectional axis positioning
(ISO230-2:1988) [mm (inch)] 0.006 - 0.020 (0.00024 - 0.00079)
Repeatability of bidirectional axis positioning
(ISO230-2:2014) [mm (inch)] Less than 0.004 (0.00016)
Front door 2doors
Standard accessories Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.],
leveling plate (4 pcs.) [R650Xd1: 5 pcs.]
*1 Actual tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
*2 Spindle motor output differs depending on the spindle speed.
*3 Measured in compliance with ISO standards and Brother standards. Please contact your local distributor for details.
*4 Brother specifications apply to the pull studs for CTS.
*5 Measured in compliance with JIS B6336-9 and MAS011-1987.
*6 Can be increased up to R450Xd1: 200kg, R650Xd1: 300kg (one face) by changing the parameter. Please consult us separately.
*7 When using the hydraulic rotary joint, the Y-axis travel becomes 290 mm.
*8 Values when the low-floor table is selected.
*9 When using high accuracy mode B.
*10 Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment. Set the pressure higher than the recommend value.
*11 When table loading on one face is R450Xd1: 120kg, R650Xd1: 200kg.
*12 The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with "RD" at the end of the model name.
*13 The value does not include the coolant tank or chip conveyor.
*14 When the turning diameter enlargement option is selected.
