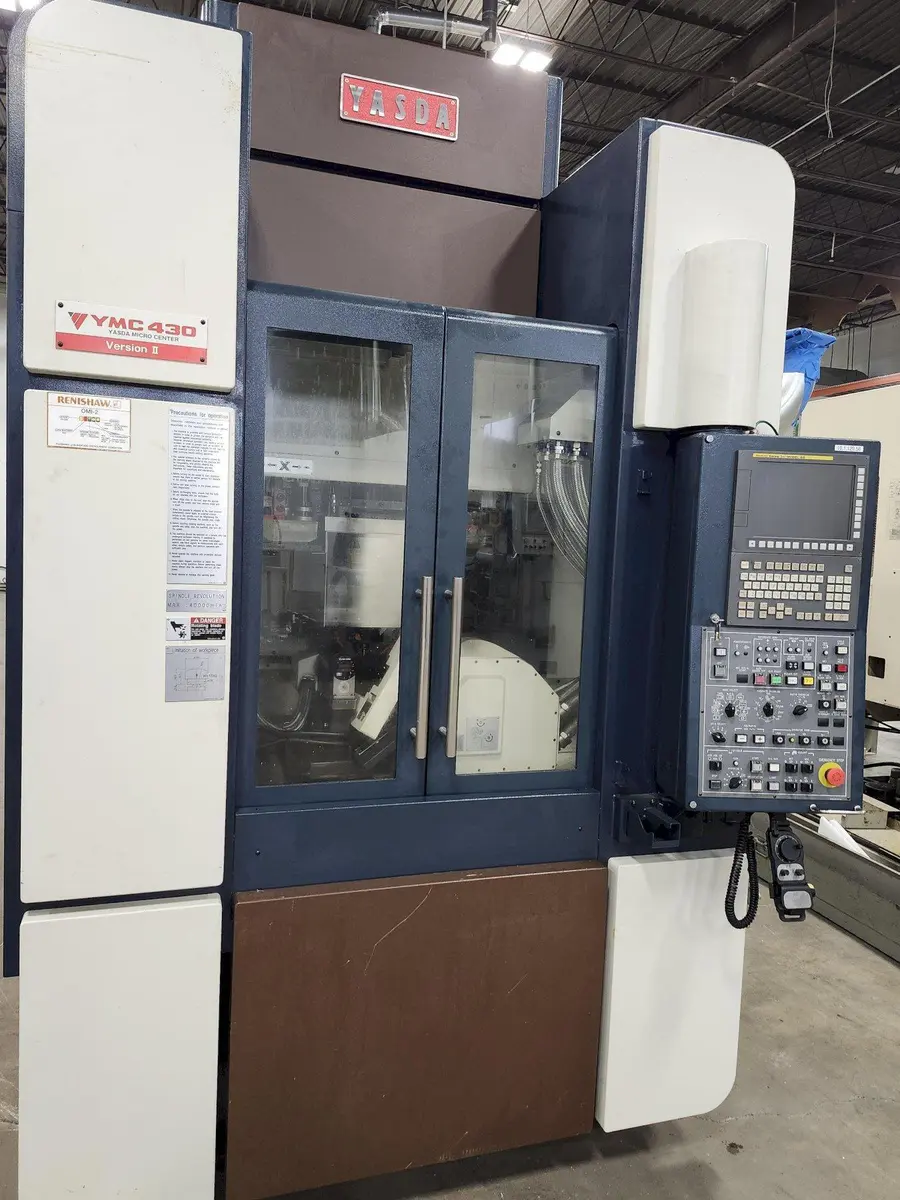

Yasda Model YMC430 Micro Center 5 Axis 16.5" x 11.8" x 9.8" High Speed Machining Center (2017)
Have one to sell?
ConditionUsed
1 available
YASDA YMC 430 Ver. II 5-Axis CNC Vertical Machining Center, 40K RPM, Trunnion Table, 32 ATC, HSK-E32, Hard Milling, Fanuc 31i-B5, LOW HOURS, Year: 2017
Yasda Model YMC430 Micro Center 5 Axis 16.5" x 11.8" x 9.8" High Speed Machining Center (2017)
X-axis travel: 16.5"/420mm
Y-axis travel: 11.8"/300mm
Z-axis travel: 9.8"/250mm
Table to spindle nose distance: 5.9" - 15.7" / 150mm - 400mm
Spindle taper hole: HSK-E32
Spindle speed range: 200-40,000 RPMs
Spindle drive motor: 10 HP / 7.5 KW AC ( Continuous )
Table working size: 600mm x 350mm / 26.6" x 13.7"
Table Loading capacity: 33 lbs. / 15 kg.
Rapid Feed Rate X, Y, Z: 787.4 ipm /20000 mm/min - Standard MODE
MAXIMUM CUTTING FEED: 393.7 ipm / 5,000mm/min
Min. input increment: 0.0001mm (0.01μm)
Optical scale feed back: X, Y, Z-axis 0.000001mm (0.001μm) command available
Tool storage capacity: 32 tools
Max. tool dia. / length / mass: φ50mm /120mm /500g ( φ1.9"/4.7"/17.6ounces )
Tool Change Method: Armless
Tool selection method: Random
Cutting Time Hours: Approxiamately: 8,000 Hours
Weight: 17700 pounds
Dimensions: Height: 2840mm / 119" Length: 2450mm / 96.5" Width: 3405mm / 135"
Fanuc 31i-B5 +HMI Control
Handwheel
32 Station Automatic Toolchanger
RT10 5 Axis Table - (C-Axis) 360 deg. (continuous)
Table Tilting Axis Travel: (B-Axis) -10 to 100 deg.
Max. Swing Diameter: 9.84" / 250mm
Chucking System: 3R macro
Computer Display: 15" Touch Panel
Tape Memory: 512K (1280M)
Program number/Program file name : O4-digit/32 characters
Custom Macros: 1000
Automatic Corner Override
Run Time/Part Display
Extended Part Program Editing
Data Server: 1 GB
Helical Interpolation
Program Mirror Image
HAS-4 (Highly Accurrate and Speedy) Machining System
High Speed Smooth TCP
Minimum input increment : 0.0001mm
Tool Selection System : Selection by shortcut in fixed-address system
Tool balance weight : Up to G1.0
Spindle Head and XYZ Axis Cooling Device - 40L 500Lcal/HR
X,Y,Z Optical Scales
Spindle Bearing Lube System
LED Work Light
Automatic Power Off
Blube MQL External Mist Coolant
Tool Offsets Pairs -64
High Speed Smooth TCP
Tilted Working Plane Indexing
Rotation Center Calibration Function (iCAL) Yasda
Compensation for Spindle Thermal Displacement
Flood Coolant: 2 AA Type Nozzles
Mist Collector interface
Thermal Distortion Stabilizing System with Weekly Timer
Splash Guard with Roof
Leveling Screws
DyanLine Non-contact Type Automatic Tool Measuring System Line Sensor Measuring Method Equipped
Auto-Measuring System without Printer; Renishaw probe OMP 400
Linear motors
Coolant system
Manuals
Floor space with Door open : ( 121" x 141" ) 3050mm x 3575mm
