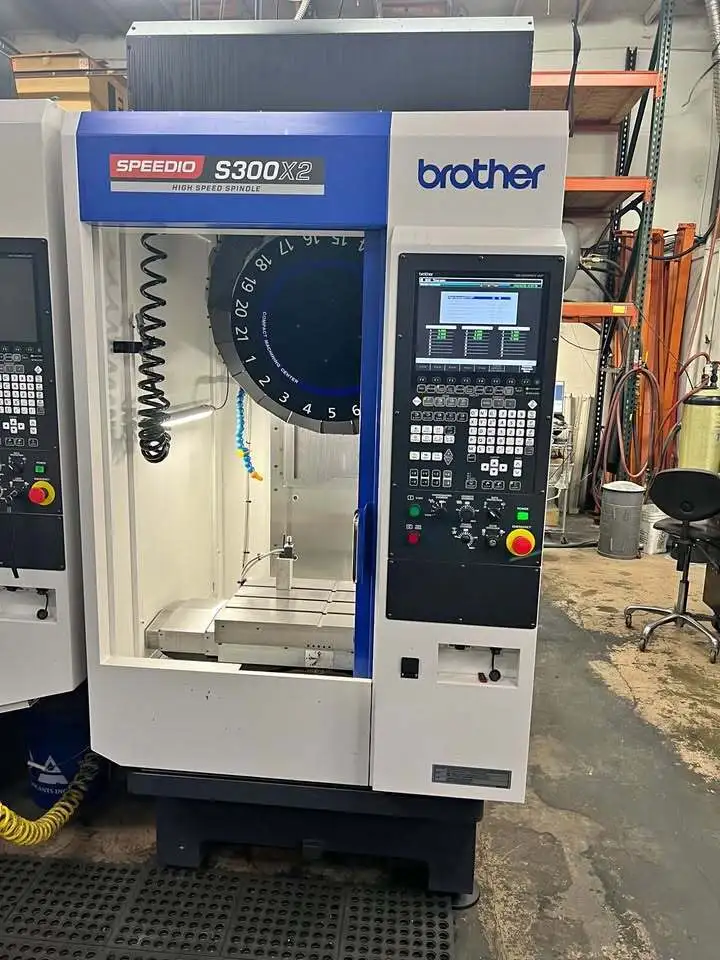

Brother Speedio S300X2 Vertical Machining Center (2021)

Brother Speedio S300X2 Vertical Machining Center (2021)

Work area size [mm (inch)] 600 x 400(23.6 x 15.7)
Max.loading capacity (uniform load) [kg (lbs)] 250 [300] (551 [661])
X-Travel: 11.80″
Y-Travel: 15.70″
Z-Travel: 11.80″
Spindle Taper Type: BT30
Spindle Speed: 27 - 27,000 rpm
Spindle Motor: 11.8 HP
Spindle Nose to Table Top: 7.1-18.9″
Rapid traverse rate (XYZ-area) [m/min (inch/min)] 50 x 50 x 56 (1,969 x 1,969 x 2,205)
Cutting feed rate [mm/min (inch/min)] X,Y,Z: 1 ~ 30,000 ( 0.04 ~ 1,181)
Tool Magazine Capacity: 21
Tool Changer Type: Drum
Tool Change Time: 0.7 seconds
Chip-to-Chip Time: 1 seconds
Electrics: 200/230/3/60
