Haas GR-510 CNC Gantry Router System (2011)
Have one to sell?
ConditionUsed
1 available

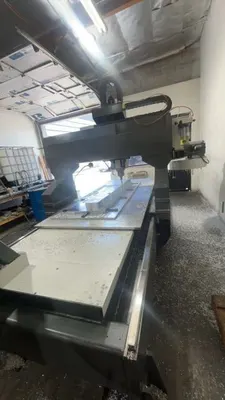

Haas GR-510 CNC Gantry Router System
Table Size: 5' X 10'
X-Axis Travel: 121"
Y-Axis Travel: 61"
Z-Axis Travel: 11"
Distance Between Columns: 62"
Spindle Taper Size: CAT 40
Spindle Speeds: 10,000 RPM
Main Motor: 15 HP
BRUSHLESS AXIS MOTOR:
X-Axis: 2,520 Lbs.
Y-Axis: 1,020 Lbs.
Z-Axis: 2,050 Lbs.
Rapid Traverse (X-Axis): 800 IPM
Rapid Traverse (Y-Axis): 2,100 IPM
Rapid Traverse (Z-Axis): 1,100 IPM

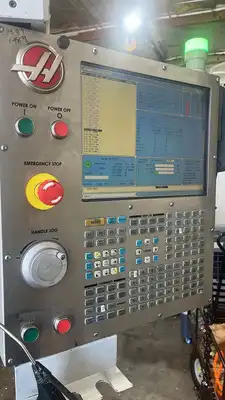

Haas CNC Control

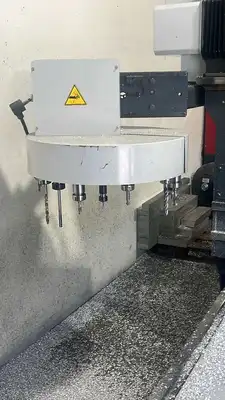

10 Position Tool Changer
Rigid Tapping
80 Gallon Tank
Remote Jog
Spindle Orientation
Visual Quick Code
M19 Spindle Orientation

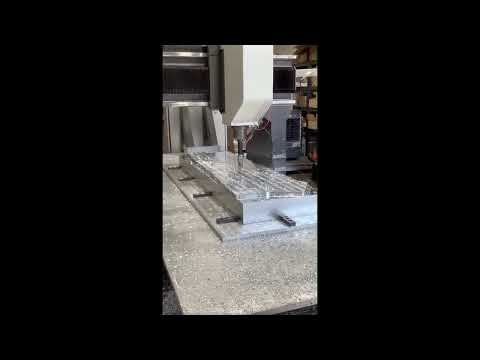

Haas Model GR-510 CNC Router
