Sold

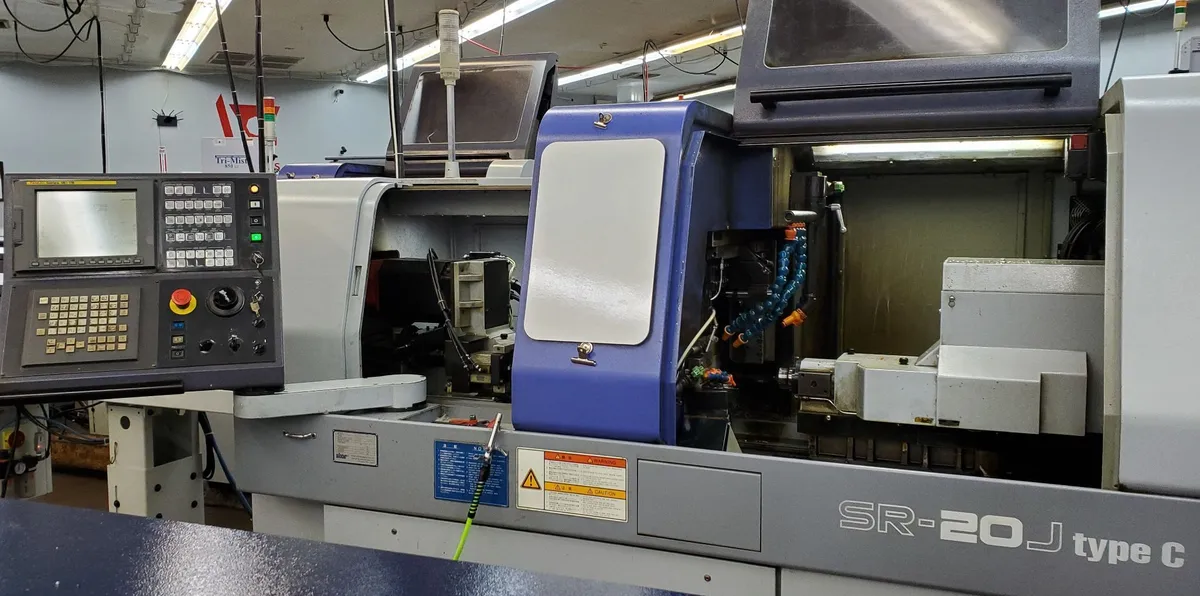

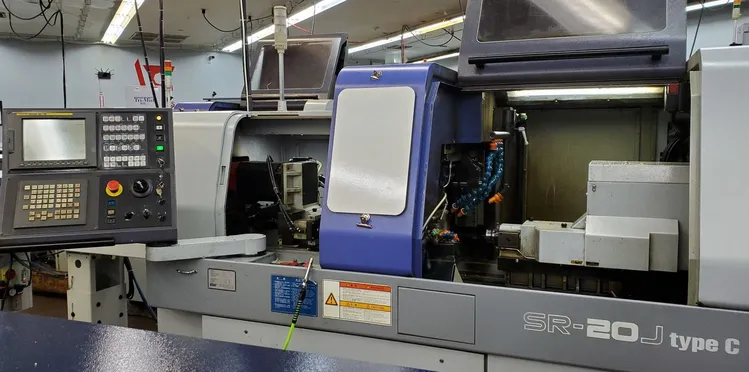

Star SR-20J CNC Swiss Type Lathe (2008)

Automatics-CNC Swiss Type
Manufacturer:
STAR
Model:
SR-20J
Year:
2008
Stock #:
93865
X1, X2, Y1, Z1, Z2, Live Tooling, Sub Spindle, S1, S2 (5) Main Slide Live Cross Working Positions, (4) Sub Live Positions Rotary Guide Bushing
Spindle Hole Dia20 mm0.7874"
Power3.7 kW5 hp
RPM10,000 RPM10,000 RPM

Star SR-20J CNC Swiss Type Lathe (2008)

Max. Machining Diameter
ø20mm (25/32in)

Max. Headstock Stroke
STANDARD
Type C
205mm (8in)
Type N
Bar diameterx2.5

WITH RMGB
Type C
172mm (6-25/32in)
Type N
(Max. 55mm) (Max.2-11/64in)

Tool
NUMBER OF TOOLS
6 tools

TOOL SHANK
12mm

4-Spindle Sleeve Holder
NUMBER OF TOOLS
Front 4 tools
Rear 4 tools
Type N

MAX. DRILLING CAPABILITY
ø10mm (25/64in)

MAX. TAPPING CAPABILITY
M8 x P1.25

2-spindle front sleeve holder
NUMBER OF TOOLS (sleeve)
2 tools

MAX. DRILLING CAPABILITY
ø8mm (5/16in)

MAX. DEPTH OF HOLE
100mm (3-15/16in)

Backworking
Maximum Chucking Diameter
ø20mm (25/32in)

Max. Length for Front Ejection
80mm (3-5/32in)

Max. Part Projection Length
30mm (1-3/16 in)

4-Spindle Unit for Backworking
NUMBER OF TOOLS
4 tools

MAX. DRILLING CAPABILITY
Stationary Tool
ø8mm (5/16in)
Power-Driven Tool
ø5mm (3/16in)

MAX. TAPPING CAPABILITY
Stationary Tool
M8 x P1.25
Power-Driven Tool
M4 x P0.7

X1, X2, Y1, Z1, Z2, Live Tooling, Sub Spindle, S1, S2 (5) Main Slide Live Cross Working Positions, (4) Sub Live Positions Rotary Guide Bushing, 34353 Machine Hours
