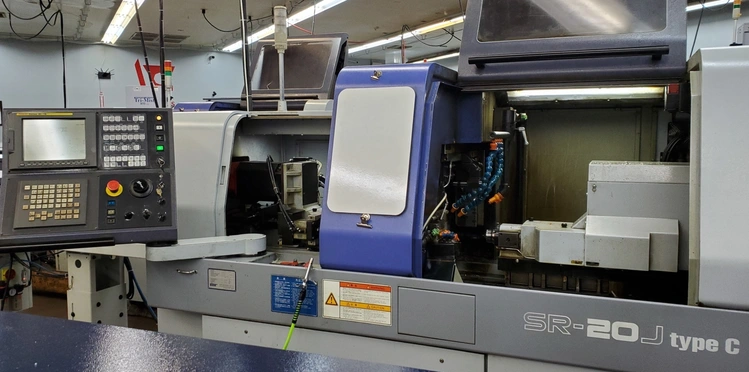

Star SR-20J CNC Swiss Type Lathe (2010)
Have one to sell?
ConditionUsed
1 available
X1, X2, Y1, Z1, Z2, Live Tooling, Sub Spindle, S1, S2 (5) Main Slide Live Cross Working Positions, (4) Sub Live Positions Rotary Guide Bushing
Star SR-20J CNC Swiss Type Lathe (2010)
Max. Machining Diameter
ø20mm (25/32in)
Max. Headstock Stroke
STANDARD
Type C
205mm (8in)
Type N
Bar diameterx2.5
WITH RMGB
Type C
172mm (6-25/32in)
Type N
(Max. 55mm) (Max.2-11/64in)
Tool
NUMBER OF TOOLS
6 tools
TOOL SHANK
12mm
4-Spindle Sleeve Holder
NUMBER OF TOOLS
Front 4 tools
Rear 4 tools
Type N
MAX. DRILLING CAPABILITY
ø10mm (25/64in)
MAX. TAPPING CAPABILITY
M8 x P1.25
2-spindle front sleeve holder
NUMBER OF TOOLS (sleeve)
2 tools
MAX. DRILLING CAPABILITY
ø8mm (5/16in)
MAX. DEPTH OF HOLE
100mm (3-15/16in)
Backworking
Maximum Chucking Diameter
ø20mm (25/32in)
Max. Length for Front Ejection
80mm (3-5/32in)
Max. Part Projection Length
30mm (1-3/16 in)
4-Spindle Unit for Backworking
NUMBER OF TOOLS
4 tools
MAX. DRILLING CAPABILITY
Stationary Tool
ø8mm (5/16in)
Power-Driven Tool
ø5mm (3/16in)
MAX. TAPPING CAPABILITY
Stationary Tool
M8 x P1.25
Power-Driven Tool
M4 x P0.7
X1, X2, Y1, Z1, Z2, Live Tooling, Sub Spindle, S1, S2 (5) Main Slide Live Cross Working Positions, (4) Sub Live Positions Rotary Guide Bushing, 29349 Machine Hours
