Star SB-16 Type D Swiss Type Lathe (2006)
Have one to sell?
ConditionUsed
1 available
X1, X2, Y1, Z1, Z2, Live Tooling, Sub Spindle, S1, S2 (3) Main Slide Live Cross Working Attachments, Rotary Guide Bushing

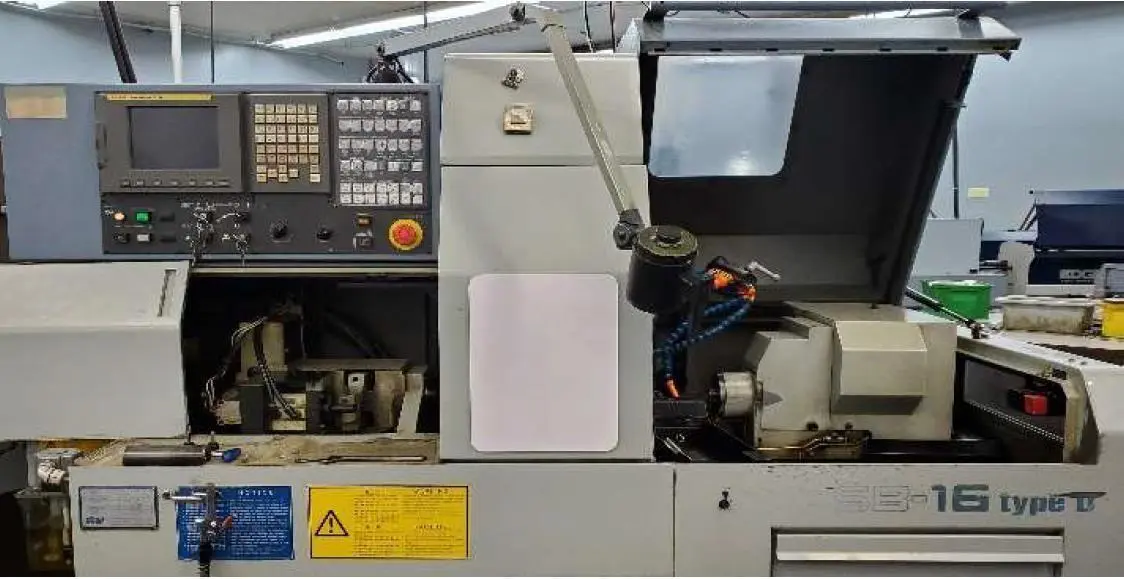

Star SB-16 Type D Swiss Type Lathe
MAIN SPINDLE
- Max. bar diameter: .62"
- Travel: 8.07"(without rotaty guide bush)
- Travel: 6.1" (with rotary guide bush)
- Spindle speeds: 10000 [rpm]
- Spindle power: 3.7 [kW]
- C axis indexing precision: 0.001 [°]
SUB-SPINDLE
- Max. bar diameter: .62"
- Spindle speeds: 8000 [rpm]
- C axis indexing precision: 0.001 [°]
- Number of guide bush holders: 1
GUIDE BUSH HOLDER 1
- Number of positions: 8
- Number of motorized positions: 3
- Live tools speed: 7500 [rpm]
END ATTACHMENT
- Number of positions: 3
SECONDARY OPERATION
- Number of positions: 4
- Number of motorized positions: 4
POWER SUPPLY
- Supply voltage: 200 [V]
X1, X2, Y1, Z1, Z2 Live Tooling, Sub Spindle, S1, S2 (3) Main Slide Live Cross Working Attachments, Rotary Guide Bushing, 30116 Machine Hours
