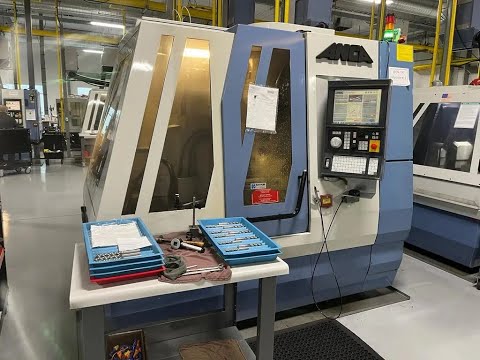

Anca TX7+ CNC Tool & Cutter Grinder with Robotic Loader (2005)

Anca TX7+ CNC Tool Grinder with Loader (2005)

Axes Travels: X, Y, Z: 21.9", 16.4", 10.1"
Rotary Axes: 264 Deg., 360 Deg.
Fluting: 1.15" in a solid pass
___: down to .040" dia
Position Feedback Resolution: 0.0000039"
Maximum Tool Diameter: 8"
Spindle Power: 37 Kw (49 HP)
Spindle Speed: 10,000 RPM
Spindle Type: Anca Bi-Directional
Spindle Drive: Integral Direct Drive
Nose Taper: HSK 40F
Maximum Wheel Diameter: 7.87"
Wheel Packs: 2
Current Electrical Arrangement: 220/3/60
Electrical Power Required: 25 Kva
Floor Layout: 61" x 100" x 89"
Weight, Approx.: 18,100 Lbs
