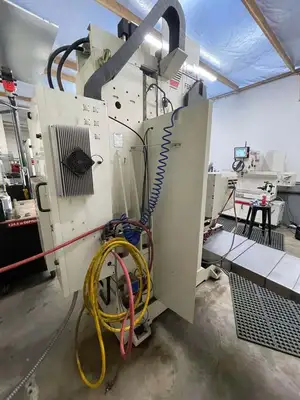

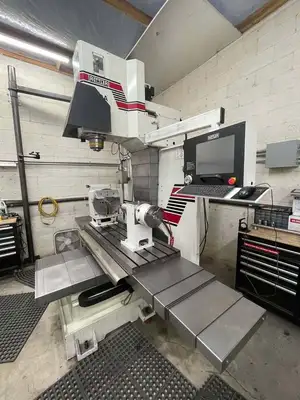

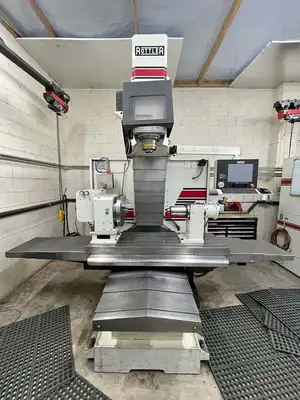

Rottler F69A 4 Axis Cylinder Boring Machine (2018)
Have one to sell?
ConditionUsed
1 available
Rottler F69A 4 Axis Cylinder Boring Machine (2018)
Touch Screen 15"
Machine Height 114"
Table - Size: 59" x 20"
Table - T Slots: 5
T Slot Spacing - 3.939"
T Slot Upper Width - 0.632"
T Slot Lower Width - 1.29"
T Slot Depth - 1.034"
Travel - Horizontal (X Axis) - 40.5"
Travel - In/Out (Y Axis) - 20.5"
Travel - Vertical (Z Axis) - 30.5"
Travel - Spindle Nose to Table - 10"
Travel - Spindle Center to Column - 20.9"
Spindle - Taper - CAT 40
Spindle - Diameter - 5.5"
Spindle - Rotation Speed - 0 to 4000 RPM
Spindle - Motor - 6 HP
Motors - Type: AC Servo Brushless Motors and Axis Motors
Motors - Axis: 69in-lb
Cylinder Bore Range (with Optional Cutterheads) - 2" - 5"
Line Bore Range (with Optional Cutterheads) - 1.9" - 5.6"
Performance - Rapid Travel (X, Y, Z) - 400 I/min
Performance - Feed Rate: .001"-.060" per rev.
Performance - Repeatability: /- 0.0002"
-Automatic 4th Axis Rollover Fixture
-Automatic Boring, Sleeving Including Lower Offset for Honing Clearance, Automatic Cycle
-Multiple Pass Programmable Depth Of Cut - Rough and Finish Milling/Surfacing, Automatic Cycle
-Main Line Bore Machining Including Circular Interpolation Thrust Facing (See Below Thrust Facing
Tool holder), Automatic Cycle
-Renishaw Wireless Probing System Including 6 Probes/Stylus and software. Designed to Work
Together with Rottler 4th Axis Fixture System.
***Extensive Selection of Tooling Available at Additional Cost***
