Rottler F69A Cylinder Boring Machine (2021)
Sold

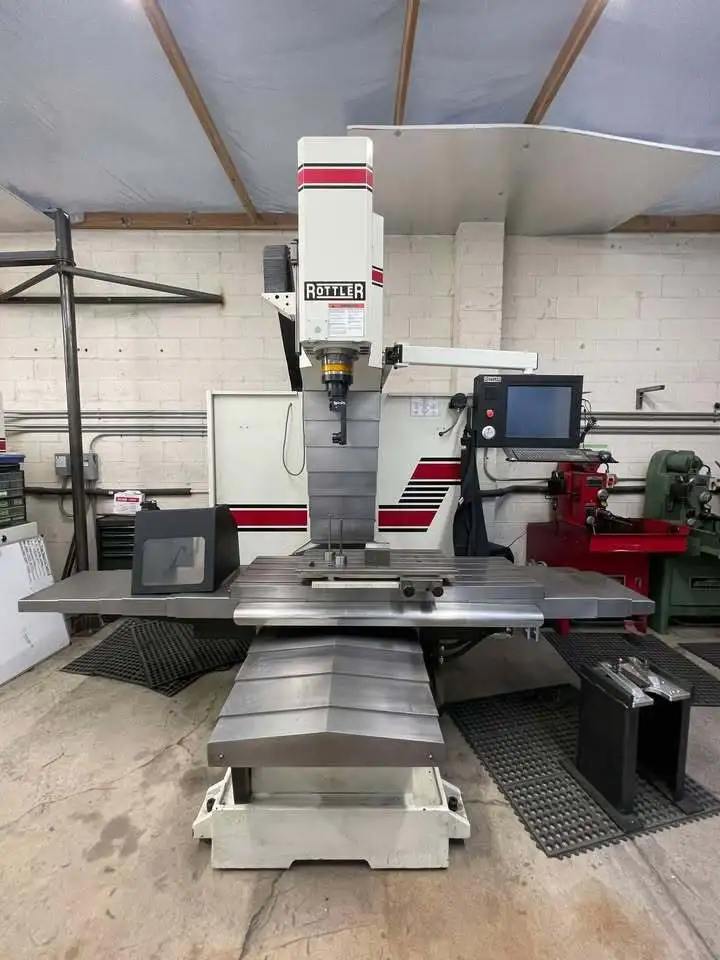

Rottler F69A Cylinder Boring Machine (2021)

Cylinder Boring Machines
Manufacturer:
ROTTLER
Model:
F69A
Year:
2021
Stock #:
93841
Serial #:
134
Weight9,0009,000

Rottler F69A Cylinder Boring Machine (2021)

Touch Screen 15"
Machine Height 114"
Table - Size: 59" x 20"
Table - T Slots: 5
T Slot Spacing - 3.939"
T Slot Upper Width - 0.632"
T Slot Lower Width - 1.29"
T Slot Depth - 1.034"
Travel - Horizontal (X Axis) - 40.5"
Travel - In/Out (Y Axis) - 20.5"
Travel - Vertical (Z Axis) - 30.5"
Travel - Spindle Nose to Table - 10"
Travel - Spindle Center to Column - 20.9"
Spindle - Taper - CAT 40
Spindle - Diameter - 5.5"
Spindle - Rotation Speed - 0 to 4000 RPM
Spindle - Motor - 6 HP
Motors - Type: AC Servo Brushless Motors and Axis Motors
Motors - Axis: 69in-lb
Cylinder Bore Range (with Optional Cutterheads) - 2" - 5"
Line Bore Range (with Optional Cutterheads) - 1.9" - 5.6"
Performance - Rapid Travel (X, Y, Z) - 400 I/min
Performance - Feed Rate: .001"-.060" per rev.
Performance - Repeatability: /- 0.0002"
Block Surfacing
Blue Print Boring
Boring & Sleeving
Circular Interpolation
Connecting Rod Boring
Cylinder Boring
Cylinder Head Resurfacing
Lifter Boring
Line Boring
Multi Purpose CNC
Thrust Cutting

-Automatic Boring, Sleeving Including Lower Offset for Honing Clearance, Automatic Cycle
-Multiple Pass Programmable Depth Of Cut - Rough and Finish Milling/Surfacing, Automatic Cycle
-Main Line Bore Machining Including Circular Interpolation Thrust Facing (See Below Thrust Facing
Tool holder), Automatic Cycle
-Renishaw Wireless Probing System Including 6 Probes/Stylus and software. Designed to Work
Together with Rottler 4th Axis Fixture System. Price Includes Factory Installation During Machine
Manufacture, Extra Charge Applies.

Equipped With at an additional cost
650-5-44 KIT, F69A HIGH TORQUE SPINDLE MOTOR UPGRADE 1
6758Z SOFTWARE PACKAGE STROKER CRANKSHAFT CONNECTING ROD CLEARANCING 1
6773B SOFTWARE PACKAGE, AUTOMATIC LINE BORING 1
6758U SOFTWARE PACKAGE, MULTIPLE PASS PROGRAMMABLE DEPTH OF CUT-ROUGH AND FINISH MILLING/SURFACING AUTOMATIC CYCLE 1
6758T SOFTWARE PACKAGE, LOWER BORE RELIEF OFF CENTER BORING- AUTOMATIC CYCLE 1
RPATH-4C "Next Generation Toolpath Software powered by 4C allows users to quickly and easily
produce CNC toolpath programs for producing custom parts and fixtures. Intuitive Conversational
programming with no G-code knowledge necessary for 2+1 axis machining." 1
650-3-59Y RADIO PROBING FOR AUTOMATIC CENTERING AND DIAMETER MEASURING - RENISHAW RADIO PROBING SYSTEM INCLUDING 6 PROBES/STYLUS AND SOFTWARE ***DOES NOT INCLUDE THE 650-3-59U - ONLY WORKS WITH CAT40 TAPER*** 1
650-3-56 LINE BORE PIVOT TABLE ASSEMBLY COMPLETE WITH UNIVERSAL WORK HOLD SYSTEM FOR SMALL IN-LINE AND #6843 90 DEGREE V-BLOCKS-USED FOR MAIN LINE BORING AND STROKER CRANK CLEARANCE 1
502-9-9S INDICATOR MOUNT,RIGHT ANGLE DRIVE 1
650-2-39B CUTTERHEAD ASSEMBLY LINE BORING COMPLETE WITH TOOLING 1.9 TO 4.0" DIAMETER (48.26 TO 101.60MM) - NOTE: MAXIMUM TORQUE SPEC ON THE 5/16 BOLT IS 45 IN/LBS 1
650-2-38G BELT DRIVE 90 DEGREE RIGHT ANGLE DRIVE ASSEMBLY FOR LIMITED CLEARANCE BETWEEN BEARING CAPS 1.9" TO 4.0" DIAMETER (48-101.6MM) (WITH 5 EXTENSION SPACERS INCLUDED) F69A/F69ATC/EM69ATC - INCLUDE SERVICE BULLETIN # 46 1
502-12-4 MAGNETIC HOLDER ASSEMBLY 1
502-12-4A MAGNETIC HOLDER ASSEMBLY FOR INDICATOR LINE BORING (THIS HOLDER REQUIRES THE 502-9-9A INDICATOR ASSY-INCH OR METRIC SPECIFY 502-9-9J IF THE INDICATOR IN THE ASSY IS TO BE METRIC (CUSTOMER MUST ORDER INDICATOR SEPARATELY) 1
650-2-40A BODY, 1.9" PRECISION LINE BORE CUTTERHEAD NOTE: MAXIMUM TORQUE SPEC ON THE 5/16 BOLT IS 45 IN/LBS 2

This equipment has been sold. Similar equipment available now is shown below.
